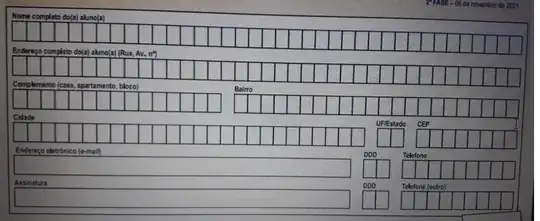

I would like to print the following table in latex:enter image description here

Any hint is wellcome!

2 Answers2

0

With {NiceTabular} of nicematrix.

\documentclass[landscape]{article}
\usepackage{nicematrix}

\begin{document}

\setlength{\tabcolsep}{0pt}

\sffamily \begin{NiceTabular}{*{38}{wc{3mm}}} \Block[l]{1-10}{Nom} \ \Block[hvlines]{1-38}{} &&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&& \ \rule{0pt}{15pt} \Block[l]{1-10}{Address} \ \Block[hvlines]{1-38}{} \ \rule{0pt}{15pt} \Block[l]{1-10}{Complement} &&&&&&&&&&&&&&&& \Block[l]{1-10}{Bairro}\ \Block[hvlines]{1-15}{} &&&&&&&&&&&&&&&& \Block[hvlines]{1-22}{} \ \rule{0pt}{15pt} \Block[l]{1-10}{Town} &&&&&&&&&&&&&&&&&&&&&&&&&& \Block{1-2}{State} &&& \Block[l]{1-8}{CEP} \ \Block[hvlines]{1-25}{} &&&&&&&&&&&&&&&&&&&&&&&&&& \Block[hvlines]{1-2}{} &&& \Block[hvlines]{1-9}{} \ \rule{0pt}{15pt} \Block[l]{1-10}{Email} &&&&&&&&&&&&&&&&&&&&&&&&& \Block{1-2}{DOC} &&& \Block[l]{1-8}{Telephon} \ \Block[draw]{1-24}{} &&&&&&&&&&&&&&&&&&&&&&&&& \Block[hvlines]{1-2}{} &&& \Block[hvlines]{1-10}{} \ \rule{0pt}{15pt} \Block[l]{1-10}{Email} &&&&&&&&&&&&&&&&&&&&&&&&& \Block{1-2}{DOC} &&& \Block[l]{1-8}{Telephon (other)} \ \Block[draw]{1-24}{} &&&&&&&&&&&&&&&&&&&&&&&&& \Block[hvlines]{1-2}{} &&& \Block[hvlines]{1-10}{} \ \end{NiceTabular}

\end{document}

You need several compilations (because nicematrix uses PGF/Tikz nodes under the hood).

Output of the above code

F. Pantigny
  • 40,250
-1

This is by no means the answer I'm only just starting myself, but it might get you on the right track.

\documentclass{article}

\begin{document}

Name\
\begin{tabular}{|c|c|c|c|c|c|c|c|} \hline &&&&&&&\ \hline \end{tabular}

SecondItem\
\begin{tabular}{|c|c|c|c|c|c|c|c|} \hline &&&&&&&\ \hline \end{tabular}

\end{document}

Sebastiano
  • 54,118
Paul A
  • 1,055
  • 4
  • 14
  • As I said new to all this I dont know why but there should be \ after the titles and it didn't paste properly – Paul A May 13 '22 at 13:46
