How to use \ numberwithin if there is only section *

Question

\documentclass[a8paper]{article}

\usepackage[T1,T2A]{fontenc}
\usepackage[mathletters]{ucs}
\usepackage[utf8]{inputenc}
\usepackage[english,ukrainian]{babel}
\usepackage{ulem}
\usepackage{amsmath}
\usepackage{titlesec}
\usepackage{indentfirst}

\numberwithin{equation}{section}

\begin{document}
        \begin{center}
    \section*{\S 1. First}
       \end{center}
\begin{align}
            \overrightarrow{a} = a^1\overrightarrow{e_1}+a^2\overrightarrow{e_2}  \label{1.1}
        \end{align}
\begin{center}
    \section*{\S 2. Second}
       \end{center}
\begin{align}
            \overrightarrow{a} = a^1\overrightarrow{e_1}+a^2\overrightarrow{e_2}  \label{2.1}
        \end{align}
\end{document}

How to fix that instead of zero there was a section number

Do not link the section counter to the equations. Create your own counter. An example in this context you can find here. — Unknown, May 19 '22 at 16:56

score 7 · Accepted Answer · answered May 19 '22 at 17:22

7

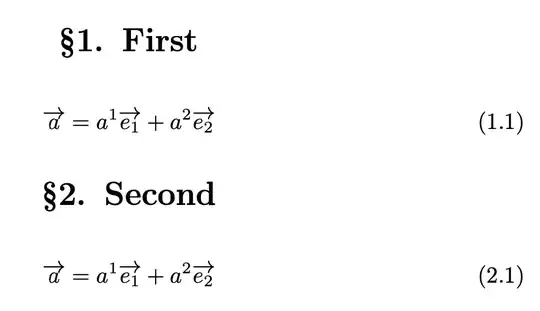

You load titlesec: use it!

\documentclass[a4paper]{article}
\usepackage[T1,T2A]{fontenc}
%\usepackage[utf8]{inputenc} % no longer needed
\usepackage[english,ukrainian]{babel}
\usepackage{amsmath}
\usepackage{titlesec}
\usepackage{indentfirst}
\numberwithin{equation}{section}
\titleformat{\section}[block]
 {\filcenter\Large\bfseries}
 {\S\thesection.}
 {0.5em}
 {}
\begin{document}
\section{First}
\begin{equation}
  \overrightarrow{a} = a^1\overrightarrow{e_1}+a^2\overrightarrow{e_2}  \label{first}
\end{equation}
\section{Second}
\begin{equation}
  \overrightarrow{a} = a^1\overrightarrow{e_1}+a^2\overrightarrow{e_2}  \label{second}
\end{equation}
\end{document}

Don't load ucs, it's obsolete and does nothing really useful.

answered May 19 '22 at 17:22

egreg

1,121,712

and how then to pick up in tableofcontents figures – Andrij Matviiv May 19 '22 at 17:26
@AndrijMatviiv The table of contents will be automatically produced if you issue \tableofcontents. – egreg May 19 '22 at 17:27
yes but it will have 1 paragraph character and again 1 – Andrij Matviiv May 19 '22 at 17:29
decided everything, thank you – Andrij Matviiv May 19 '22 at 17:33

frabjous · Answer 2 · 2022-05-19T17:31:29.217

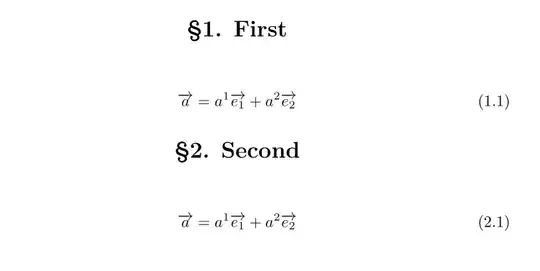

This is an XY problem. Your sections are numbered, so you should be using \section not \section* to begin with. To add the § you could use the capabilities of titlesec package, which you're already loading.

Not sure what you were attempting to do with the center environments, but if you want the section headings centered, you can do that as well.

\documentclass[a8paper]{article}
\usepackage[T1]{fontenc}
\usepackage[utf8]{inputenc}
\usepackage[english,ukrainian]{babel}
\usepackage{ulem}
\usepackage{amsmath}
\usepackage{titlesec}
\usepackage{indentfirst}
\numberwithin{equation}{section}
\titleformat{\section}[hang]%
    {\Large\bfseries\centering}% bold and Large and centered
    {\S\thesection.}% format of label
    {0.5em}% spacing between label and title
    {}% additional commands applied just to section title
\begin{document}
\section{First}
\begin{align}
    \overrightarrow{a} = a^1\overrightarrow{e_1}+a^2\overrightarrow{e_2}  \label{1.1}
\end{align}
\section{Second}
\begin{align}
    \overrightarrow{a} = a^1\overrightarrow{e_1}+a^2\overrightarrow{e_2}  \label{2.1}
\end{align}
\end{document}

score 2 · Answer 3 · answered May 19 '22 at 17:15

Here is a possible solution:

\documentclass[a8paper]{article}
\usepackage[T1,T2A]{fontenc}
\usepackage[mathletters]{ucs}
\usepackage[utf8]{inputenc}
\usepackage[english,ukrainian]{babel}
\usepackage{ulem}
\usepackage{amsmath}
\usepackage{titlesec}
\usepackage{indentfirst}
\newcounter{paragraphCounter}
\numberwithin{equation}{paragraphCounter}
\newcommand{\createParagraph}[1]{%
    \stepcounter{paragraphCounter}%
    \section*{\S\ \theparagraphCounter.\hfill#1}%
}
\begin{document}
    \createParagraph{First}
    \begin{align}
        \overrightarrow{a} = a^1\overrightarrow{e_1}+a^2\overrightarrow{e_2}
        \label{1.1}
    \end{align}
\createParagraph{Two}
\begin{align}
    \overrightarrow{a} = a^1\overrightarrow{e_1}+a^2\overrightarrow{e_2}
    \label{2.1}
\end{align}

\end{document}

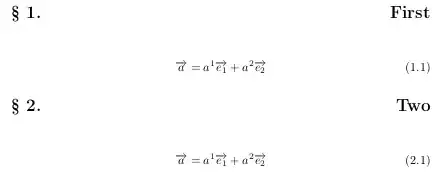

Remove the \hfill if you do not want the space between X. and First, Two etc.

score 1 · Answer 4 · answered May 19 '22 at 17:38

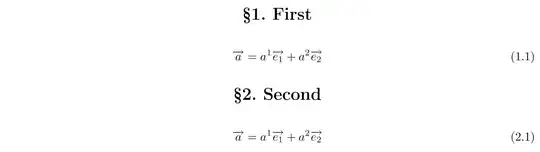

Here's a solution that does not employ the titlesec package. Instead, it employs a method I obtained years ago from the book The LaTeX Companion (2nd ed.).

\documentclass[a8paper]{article} % Are you sure 'a8paper' is meaningful?
\usepackage{geometry}
\usepackage[T1,T2A]{fontenc}
%%\usepackage[mathletters]{ucs}
\usepackage[utf8]{inputenc}
\usepackage[english,ukrainian]{babel}
\usepackage[normalem]{ulem}
\usepackage{amsmath}
\usepackage{indentfirst}
\usepackage{old-arrows} % optional
%%\usepackage{titlesec}
\usepackage{sectsty}
\sectionfont{\centering}
% Method proposed in "The LaTeX Companion", 2nd ed.:
\makeatletter
\def@seccntformat#1{@ifundefined{#1@cntformat}%
   {\csname the#1\endcsname\space}    %  default
   {\csname #1@cntformat\endcsname}}  %  enable individual control
\newcommand\section@cntformat{\S\thesection.\space}  % section level
\makeatother
\counterwithin{equation}{section}
\begin{document}
\section{First}
\begin{equation}\label{1.1}
\overrightarrow{a} = a^1\overrightarrow{e_1}+a^2\overrightarrow{e_2}

\end{equation}
\section{Second}
\begin{equation}\label{2.1}
\overrightarrow{a} = a^1\overrightarrow{e_1}+a^2\overrightarrow{e_2}

\end{equation}
\end{document}
