I'm trying to use curve class to insert plain text in the middle of a rubric, without fancy key/prefix formatting.

As the manual reads in page 9 here: https://mirrors.dotsrc.org/ctan/macros/latex/contrib/curve/curve.pdf

It seems it is as simple as using the \text option (optionally also combined with \par).

Well, this seems to span lines across and out of the document:

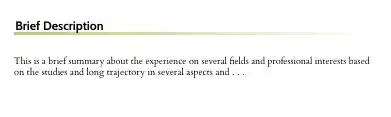

enter image description here

brief_description.tex:

\begin{rubric}{Brief Description}

\text{\par This is a brief summary about the experience on several fields and professional interests based on the studies and long trajectory in several aspects and . . .\par}

\end{rubric}

document.tex (this is the document to compile)

\listfiles
\documentclass[a4paper,skipsamekey,11pt,british]{curve}

\usepackage{settings}

% Change the fonts if you want \ifxetexorluatex % If you're using XeLaTeX or LuaLaTeX \usepackage{fontspec} \setmainfont[Ligatures=TeX,SmallCapsFeatures={Letters=SmallCaps,LetterSpace=5}]{Charis SIL} \setsansfont[Ligatures=TeX]{Lato} \setmonofont{Inconsolata} \else % If you're using pdfLaTeX or latex \usepackage[utf8]{inputenc} \usepackage[T1]{fontenc} \usepackage[tracking=smallcaps]{microtype} \usepackage{fbb} \usepackage[type1]{cabin} \usepackage[varqu,varl]{zi4} \useosf %% Comment out if you prefer lining figures rather than old style figures \fi \usepackage{csquotes}

\usepackage{academicons} \usepackage{soul} \usepackage{enumerate}

\usepackage{amsmath,amssymb}

\myname{abc}{def} \includecomment{fullonly}

\usepackage{marvosym} % For cool symbols. \usepackage{paracol} \usepackage{multicol}

\title{Curriculum Vitae}

\begin{document}%\layout

\makerubric{brief_description}

\end{document}

settings.sty:

\RequirePackage{silence}
\WarningsOff[longtable]
\WarningsOff[array]

\usepackage{ifxetex,ifluatex} \newif\ifxetexorluatex \ifxetex \xetexorluatextrue \else \ifluatex \xetexorluatextrue \else \xetexorluatexfalse \fi \fi

\RequirePackage{graphicx} \RequirePackage[hyphens]{url} \RequirePackage[main=british]{babel} \raggedright

\RequirePackage{fontawesome}

\newcommand{\smallcaps}[1]{\textsc{\lowercase{#1}}}

% \RequirePackage[a4paper,nohead,nofoot,hmargin=2.25cm,vmargin=2cm]{geometry} \RequirePackage{geometry} \RequirePackage{relsize} \RequirePackage[dvipsnames,svgnames]{xcolor} \RequirePackage{tikz} \usetikzlibrary{shapes,shadows}

\RequirePackage{comment} \definecolor{SwishLineColour}{HTML}{88AC0B} \definecolor{MarkerColour}{HTML}{B6073F}

\RequirePackage[backend=biber,bibstyle=ieee,dashed=false,uniquename=init,sorting=ydnt,maxnames=100,maxbibnames=99,defernumbers=true]{biblatex} % for vil exp application \DeclareLanguageMapping{british}{british-apa}

%% Added 17 Jan 2018 from https://tex.stackexchange.com/a/140641/226 and https://tex.stackexchange.com/a/46879/226 \DeclareSortingScheme{ymdnt}{ \sort{ \field{presort} } \sort[final]{ \field{sortkey} } \sort[direction=descending]{ \field[strside=left,strwidth=4]{sortyear} \field[strside=left,strwidth=4]{year} \literal{9999} } \sort[direction=descending]{ \field[padside=left,padwidth=2,padchar=0]{month} \literal{00} } \sort[direction=descending]{ \field[padside=left,padwidth=2,padchar=0]{day} \literal{00} } \sort{ \field{sortname} \field{author} \field{editor} \field{translator} \field{sorttitle} \field{title} } \sort{ \field{sorttitle} \field{title} } }

\RequirePackage{tikz} \newcommand*\circled[1]{\tikz[baseline=(char.base)]{ \node[shape=circle,text=white,fill=MarkerColour!80!black,font=\sffamily\scriptsize\bfseries,inner sep=1pt,text height=1.35ex,minimum width=1.5em,text centered] (char) {#1};}}

\newcounter{bibitem} \AtBeginBibliography{\setcounter{bibitem}{1}} %\AtEveryBibitem{\makebox[2.5em][l]{\circled{\thebibitem}\stepcounter{bibitem}}} % commented in order to remove the red circles 1, 2, 3 . . . in References. For vil exp. % \renewcommand{\bibfont}{\small} \setlength{\bibitemsep}{1.5ex} \setlength{\bibhang}{2.7em} \NewBibliographyString{retrieved} \NewBibliographyString{from} \DefineBibliographyStrings{british}{ from = {\textcolor{MarkerColour!80!black}{\faLink}}, retrieved = {} }

\headerscale{1} %\setlength{\headerspace}{6pt} \rubricfont{\Large\bfseries\sffamily} \setlength{\rubricspace}{2pt} %\setlength{\rubricafterspace}{-9pt} \setlength{\rubricafterspace}{-3pt} \setlength{\subrubricspace}{3pt} \setlength{\subrubricbeforespace}{4pt} \def@@rubrichead#1{% \begin{tikzpicture}[baseline]%
\shade[left color=SwishLineColour!60!white, right color=white] rectangle (@almosttextwidth,2.5pt); \node[font={@rubricfont},inner sep=0pt,text ragged,anchor=south west,text depth=.5ex,text height=1.5ex] at (1pt,2pt) {#1}; \end{tikzpicture}% \vspace\rubricspace% }

\subrubricfont{\large\bfseries\sffamily} \subrubricalignment{l}

\newcommand{\makefield}[2]{\makebox[1.5em]{\color{MarkerColour!80!black}#1} #2\hspace{2em}}

\keyalignment{r} \rubricalignment{l} \renewcommand{\arraystretch}{1.25} \urlstyle{tt}

\newcommand{\prefixmarker}[1]{\def@prefixmarker{#1}} % The following line controls the size of the \item : %\def@prefixmarker{\relscale{.9}\faBookmark} % default. \def@prefixmarker{\relscale{.6}\faBookmark}

\prefix{% \hspace{-1ex} \color{MarkerColour!80!black}@prefixmarker% \hspace{1ex}% }

\newcommand{\makerubrichead}[1]{\vskip\baselineskip@@rubrichead{#1}}

\defbibheading{subbibliography}{\vskip\subrubricbeforespace{@subrubricfont\hspace{3pt}#1}\par}

\defbibfilter{booksandchapters}{% ( type=book or type=incollection ) }

\newcommand{\myname}[2]{% \def@mylastname{#1}% \def@myfirstname{#2}% }

\renewcommand*{\mkbibnamefamily}[1]{% \ifboolexpr{ test {\ifdefstrequal{\namepartfamily}{@mylastname}} and test {\ifdefstrequal{\namepartgiven}{@myfirstname}}} {\textbf{#1}}% {#1}% }

\renewcommand*{\mkbibnamegiven}[1]{% \ifboolexpr{ test {\ifdefstrequal{\namepartfamily}{@mylastname}} and test {\ifdefstrequal{\namepartgiven}{@myfirstname}}} {\textbf{#1}}% {#1}% }

%---------------- This controls the hreference to links: %\RequirePackage[colorlinks=true,allcolors=black,breaklinks=true]{hyperref} \RequirePackage[colorlinks=true,linkcolor=black,filecolor=black,urlcolor=blue,citecolor=red,breaklinks=true]{hyperref}

dexteritas
  • 9,161
DavidC.
  • 845

1 Answers1

2

The file settings.sty loads many packages, with hyperref the last as it should be. (csquotes could be an exception)

So add all new packages before \usepackage{settings}, checking if a new package does not conflicts with others or the class.

In this case removing \usepackage{amsmath} solves the issue.

a

Your preamble should start as

% !TeX TS-program = pdflatex

\listfiles \documentclass[a4paper,skipsamekey,11pt,british]{curve}

\usepackage{academicons} \usepackage{soul} \usepackage{enumerate} \usepackage{amssymb} \usepackage{marvosym} % For cool symbols. \usepackage{paracol} \usepackage{multicol} \usepackage{settings} % last <<<<<<<<<<<<<< ....

Simon Dispa
  • 39,141
