Question

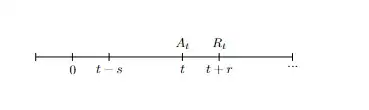

I am using the following code to construct a timeline:

\usepackage{tikz}
\usetikzlibrary{snakes}
\begin{tikzpicture}
        % draw horizontal line

        \draw (0,0) -- (2,0);
        \draw(2,0) -- (4,0);
        \draw (4,0) -- (5,0);
        \draw (5,0) -- (7,0);
    % draw vertical lines
    \foreach \x in {0,1,2,4,5,7}
      \draw (\x cm,3pt) -- (\x cm,-3pt);

    % draw nodes
   % \draw (0,0) node[below=3pt] {$ 0 $} node[above=3pt] {$   $};
    \draw (1,0) node[below=3pt] {$ 0 $} node[above=3pt] {$  $};
    \draw (2,0) node[below=3pt] {$ t-s $} node[above=3pt] {$  $};
    \draw (4,0) node[below=3pt] {$ t $} node[above=3pt] {$ A_t $};
    \draw (5,0) node[below=3pt] {$ t+r $} node[above=3pt] {$ R_t $};
    \draw (6,0) node[below=3pt] {$  $} node[above=3pt] {$  $};
    \draw (7,0) node[below=3pt] {$ ... $} node[above=3pt] {$  $};
  \end{tikzpicture}

I want to add a underbrace between t and t+r a "X" below the underbrace. For formulas that goes without any problems:

$\underbrace{(x + 2)^3}_\text{text 1}$

However, for the timeline that won't work. Any ideas how to do this?

What additional information do you need? I forgot to add the packages that I have used, which is included now. — amar96, Jun 07 '22 at 19:08

score 2 · Accepted Answer · answered Jun 07 '22 at 19:47

Welcome to TeX.SE!

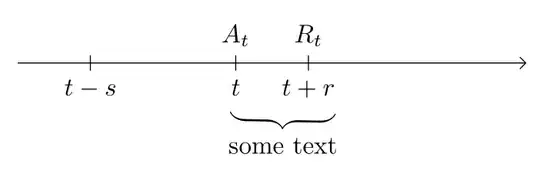

Please, always -- when it is possible -- provide MWE (Minimal Working Example), a small but complete document which we can copy to our computers and test it as it is. See, if the following is what you afer:

\documentclass[margin=3mm]{standalone}
\usepackage{tikz}
\usetikzlibrary{arrows.meta,
                decorations.pathreplacing,
                    calligraphy,% had to be loaded after decorations.pathreplacing
                positioning}
\usepackage{amsmath}
\begin{document}
    \begin{tikzpicture}[
BC/.style = {% Brace Calligraphic
    decorate,
    decoration={calligraphic brace, #1,% for mirror
                raise=3pt, amplitude=6pt},
                very thick, thick,
                pen colour={black}
            },
lbl/.style={inner xsep=0pt}

                    ]
% draw horizontal line
\draw[-Straight Barb]   (0,0) -- (7,0);
% draw vertical lines
    \foreach \x/\i/\j in {1/t-s/, 3/t/A_t,4/t+r/R_t}
\draw   (\x,3pt)    node        [lbl,above] {$\j$}
                -- ++
        (0,-6pt)    node (n\x)  [lbl,below] {$\i$};
% brace
\draw[BC=mirror]

        (n3.south west) -- node[below=9pt] {some text} (n4.south east);
     \end{tikzpicture}
\end{document}

Hero! Thanks alot, this is exactly what I needed. – amar96 Jun 07 '22 at 19:52 — amar96, Jun 07 '22 at 19:52
