I have two questions:

  1. How can I draw a smooth bond instead this arrowed one?
  2. How can I write the molecule name (benzoyl peroxide) through \chemname{} under the two-merged molecules?

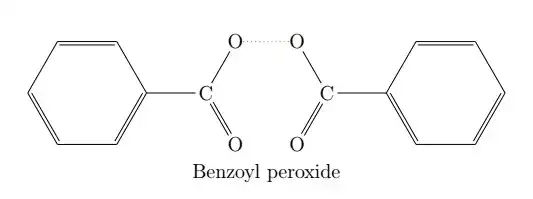

enter image description here

\documentclass[12pt]{article}
\usepackage{float}
\usepackage{chemfig}
\begin{document}
\begin{figure}[H]
\centering
\chemfig{[:-30]*6(=-=(-C([:-60]=O)([:60]-@{a}O))-=-)}
\qquad
\chemfig{[:-30]*6((-C([:240]=O)([:120]-@{b}O))=-=-=-)}
\chemmove{ \draw[red,dotted] (a)--(b); }
\end{figure}
\end{document}
user3713179
  • 635
  • 2
  • 11

2 Answers2

0

One solution is to write a single structure in Chemfig

\documentclass[12pt]{article}
\usepackage{float}
\usepackage{chemfig}
\begin{document}
    \begin{figure}[H]
    \centering
    \chemname{\chemfig{[:-30]*6(=-=(-C([:-60]=O)([:60]-O-[0,,,,dotted,red]O-[:-60]C(=[:-120]O)-[0]*6(=-=-=-)))-=-)}}{benzoyl peroxide}
\end{figure}
\end{document}

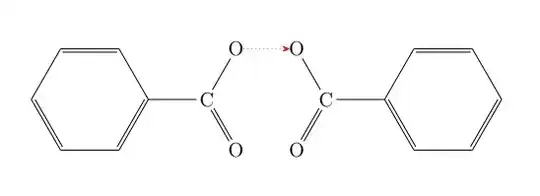

enter image description here

CrocoDuck
  • 3,875
0
\documentclass[12pt]{article}
\usepackage{float}
\usepackage{chemfig}
\begin{document}
\begin{figure}[H]
\centering
\chemname{ % <--- group both molecules
\chemfig{[:-30]*6(=-=(-C([:-60]=O)([:60]-@{a}O))-=-)}
\qquad
\chemfig{[:-30]*6((-C([:240]=O)([:120]-@{b}O))=-=-=-)}
}{Benzoyl peroxide}
\chemmove{ \draw[-,red,dotted] (a)--(b); } % <--- just put - on \draw arguments
\chemnameinit{}
\end{figure}
\end{document}

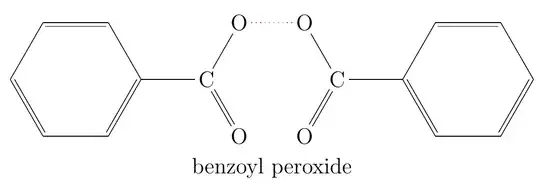

enter image description here

user3713179
