Latex Forest package - making a directory tree with a description of each folder

Question

I've got this code from the user Gonzalo Medina here and it looks great, it's exactly what I want. However I would like to add a description of each folder that can be a rather long test, like for instance in the "config" node bellow.

\documentclass[border=5pt]{standalone}
\usepackage{forest}
\definecolor{folderbg}{RGB}{124,166,198}
\definecolor{folderborder}{RGB}{110,144,169}
\def\Size{4pt}
\tikzset{
  folder/.pic={
    \filldraw[draw=folderborder,top color=folderbg!50,bottom color=folderbg]
      (-1.05\Size,0.2\Size+5pt) rectangle ++(.75\Size,-0.2\Size-5pt);

    \filldraw[draw=folderborder,top color=folderbg!50,bottom color=folderbg]
      (-1.15\Size,-\Size) rectangle (1.15\Size,\Size);
  }
}
\begin{document}
\begin{forest}
  for tree={
    font=\ttfamily,
    grow'=0,
    child anchor=west,
    parent anchor=south,
    anchor=west,
    calign=first,
    inner xsep=7pt,
    edge path={
      \noexpand\path [draw, \forestoption{edge}]
      (!u.south west) +(7.5pt,0) |- (.child anchor) pic {folder} \forestoption{edge label};
    },
    before typesetting nodes={
      if n=1
        {insert before={[,phantom]}}
        {}
    },
    fit=band,
    before computing xy={l=15pt},
  }

[system
  [config: this text is sooooo long oh not it won't fit in the page help me please
  ]
  [lib
    [Access
    ]
    [Plugin
    ]
  ]
  [templates
  ]
  [tests
  ]
]
\end{forest}
\end{document}

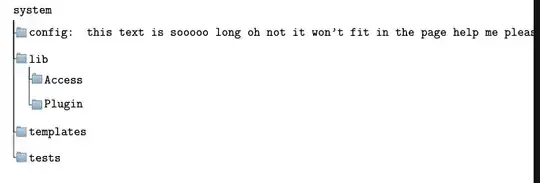

The result that I get is this:

I would like that the text automatically went to a new line.

Thanks in advance!

Simon Dispa · Accepted Answer · 2022-06-21T21:15:03.797

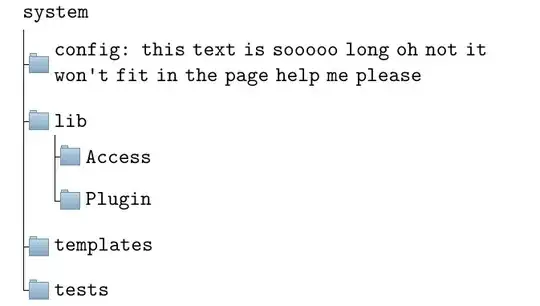

You can limit the width of the text. For example using text width=8cm

\documentclass[border=5pt]{standalone}
\usepackage{forest}
\definecolor{folderbg}{RGB}{124,166,198}
\definecolor{folderborder}{RGB}{110,144,169}
\def\Size{4pt}
\tikzset{
    folder/.pic={
        \filldraw[draw=folderborder,top color=folderbg!50,bottom color=folderbg]
        (-1.05\Size,0.2\Size+5pt) rectangle ++(.75\Size,-0.2\Size-5pt);

        \filldraw[draw=folderborder,top color=folderbg!50,bottom color=folderbg]
        (-1.15\Size,-\Size) rectangle (1.15\Size,\Size);
    }
}
\begin{document}
\begin{forest}
    for tree={
        font=\ttfamily,
        text width=8cm,% added &lt;&lt;&lt;&lt;&lt;&lt;&lt;&lt;&lt;&lt;&lt;&lt;&lt;&lt;
        grow'=0,
        child anchor=west,
        parent anchor=south,
        anchor=west,
        calign=first,
        inner xsep=7pt,
        edge path={
            \noexpand\path [draw, \forestoption{edge}]
            (!u.south west) +(7.5pt,0) |- (.child anchor) pic {folder} \forestoption{edge label};
        },
        before typesetting nodes={
            if n=1
            {insert before={[,phantom]}}
            {}
        },
        fit=band,
        before computing xy={l=15pt},
    }
    [system
    [config: this text is sooooo long oh not it won't fit in the page help me please
    ]
    [lib
    [Access
    ]
    [Plugin
    ]
    ]
    [templates
    ]
    [tests
    ]
    ]
\end{forest}


\end{document}

UPDATE after follow up question.

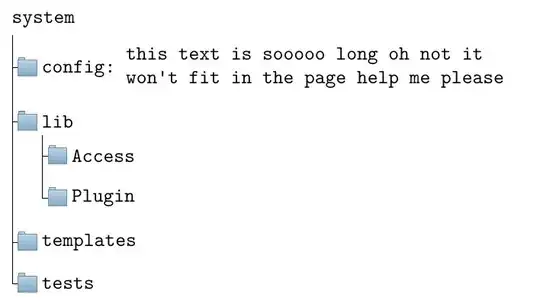

This is another way:

\documentclass[border=5pt]{standalone}
\usepackage{forest}
\definecolor{folderbg}{RGB}{124,166,198}
\definecolor{folderborder}{RGB}{110,144,169}
\def\Size{4pt}
\tikzset{
    folder/.pic={
        \filldraw[draw=folderborder,top color=folderbg!50,bottom color=folderbg]
        (-1.05\Size,0.2\Size+5pt) rectangle ++(.75\Size,-0.2\Size-5pt);

        \filldraw[draw=folderborder,top color=folderbg!50,bottom color=folderbg]
        (-1.15\Size,-\Size) rectangle (1.15\Size,\Size);
    }
}
\begin{document}
\begin{forest}
    for tree={
        font=\ttfamily,
        grow'=0,
        child anchor=west,
        parent anchor=south,
        anchor=west,
        calign=first,
        inner xsep=7pt,
        edge path={
            \noexpand\path [draw, \forestoption{edge}]
            (!u.south west) +(7.5pt,0) |- (.child anchor) pic {folder} \forestoption{edge label};
        },
        before typesetting nodes={
            if n=1
            {insert before={[,phantom]}}
            {}
        },
        fit=band,
        before computing xy={l=15pt},
    }
    [system
    [config: \parbox{7cm}{this text is sooooo long oh not it won't fit in the page help me please}% changed
    ]
    [lib
    [Access
    ]
    [Plugin
    ]
    ]
    [templates
    ]
    [tests
    ]
    ]
\end{forest}


\end{document}

Yup, that did the trick! For style points, is there any way that "config" stays at the same line as the folder icon? — MooDoesCow, Jun 21 '22 at 20:56
