Draw a line to connect two nodes

Question

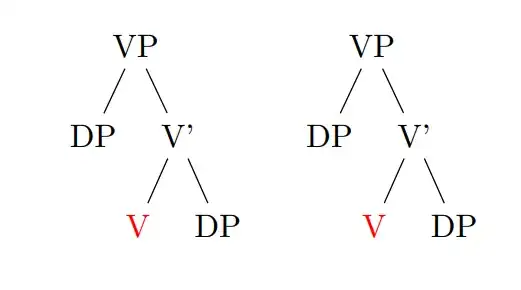

How can a connect two V nodes with an arrow? The nodes to be connected are from differente trees.

\documentclass{article}
\usepackage[utf8]{inputenc}
\usepackage{forest}
\begin{document}
\begin{forest}
[VP[DP][V’[V,red][DP]]]
\end{forest}
\quad
\begin{forest}[VP
[DP ] [ V’[V,red][ DP]]
]\end{forest}
\end{document}

Does https://tex.stackexchange.com/questions/393646/how-to-link-different-trees-with-tikz help? — Torbjørn T., Jul 17 '22 at 19:24
Look for arrow or edge, see e.g. p. 59 in the manual https://mirror.marwan.ma/ctan/graphics/pgf/contrib/forest/forest-doc.pdf — MS-SPO, Jul 17 '22 at 19:26

score 2 · Accepted Answer · answered Jul 23 '22 at 22:22

2

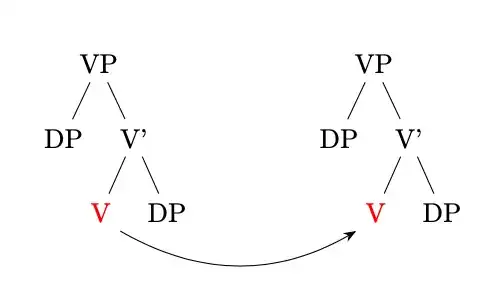

You can use the tikzmark package or you can combine them into one tree like this

\documentclass[tikz, border=1cm]{standalone}
\usepackage{forest}
\usetikzlibrary{arrows.meta}
\begin{document}
\begin{forest}
[, phantom, s sep=2cm
[VP[DP][V’[V, red, alias=a][DP]]]
[VP[DP][V’[V, red, alias=b][DP]]]
]
\draw[-Stealth] (a.south east) to[bend right] (b.south west);
\end{forest}
\end{document}

answered Jul 23 '22 at 22:22

hpekristiansen

37,006

Thanks a bunch, @hpekristiansen – JJSilva Jul 24 '22 at 04:20

score 1 · Answer 2 · answered Jul 24 '22 at 02:38

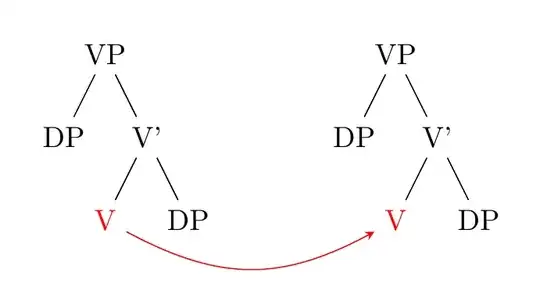

One alternative for you:

\documentclass[tikz,border=5mm]{standalone}
\begin{document}
\begin{tikzpicture}[xscale=.5]
\path
(0,0) node (A) {VP}
+(-1,-1) node (B1) {DP}
++(1,-1) node (B2) {V'}
+(1,-1)  node (C1) {DP}
+(-1,-1) node[red] (C2) {V}
;
\path[xshift=7cm]
(0,0) node (X) {VP}
+(-1,-1) node (Y1) {DP}
++(1,-1) node (Y2) {V'}
+(1,-1)  node (Z1) {DP}
+(-1,-1) node[red] (Z2) {V}
;
\draw
(A)--(B1) (A)--(B2) (B2)--(C1) (B2)--(C2)
(X)--(Y1) (X)--(Y2) (Y2)--(Z1) (Y2)--(Z2)
;
\draw[-stealth,red] (C2) to[bend right=15] (Z2);
\end{tikzpicture}
\end{document}
