I want to print the numbers 0,1,...,n-1 in a tabular environment. My first attempt resulted in the error Incomplete \iffalse; all text was ignored after line 19.. By "hiding" & (ampersand) in a construct solves the problem. But this looks ugly. Is there a nice way to be able to use \whiledo{}{} programming in a tabular?

Here is my code:

\documentclass{article}
\usepackage{ifthen,calc}
\newcounter{x}
\newcommand{\ampersand}{\ifthenelse{0<1}{&}{}}
\newcommand{\numbers}[1]{\begin{tabular}{|c@{x=}|*{#1}{r|}}
\hline\setcounter{x}{0}
%
% my first attempt produces error:
%
\whiledo{\thex<#1}{&\thex\stepcounter{x}}\\
%
% no error if above line is replaced with:
%
% \whiledo{\thex<#1}{\ampersand\thex\stepcounter{x}}\\
%
\hline\end{tabular}}
\begin{document}\numbers{10}\end{document}
campa
  • 31,130

1 Answers1

5

When TeX sees &, it ends the current alignment cell; but you cannot start a \whiledo process in one cell and end it in a different one. With \def\ampersand{&} you're delaying the interpretation to when macro expansion takes place; but you're being lucky, actually.

I wouldn't use \whiledo; there are more powerful tools, nowadays.

\documentclass{article}

\ExplSyntaxOn

\NewDocumentCommand{\numbers}{O{0}m} { \ensuremath { \begin{array} { |c| *{ \int_eval:n { #2 + 1 - #1 } }{r|} } \hline x= \int_step_function:nnN { #1 } { #2 } \battha_print_number:n \ \hline \end{array} } }

\cs_new:Nn \battha_print_number:n { & #1 }

\ExplSyntaxOff

\begin{document}

\numbers{9}

\medskip

\numbers[1]{9}

\medskip

\numbers[2]{10}

\end{document}

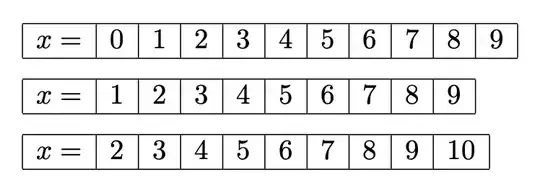

enter image description here

TeX will take care of the arithmetic, so you just specify the end point and, optionally, the start point (default is 0).

A possible improvement is to make the cells to have equal width if the end number is two-digit.

\documentclass{article}
\usepackage{array}

\ExplSyntaxOn

\NewDocumentCommand{\numbers}{O{0}m} { \ensuremath { \int_compare:nTF { #2 > 9 } { \newcolumntype{B}{w{r}{1em}} } { \newcolumntype{B}{w{r}{0.5em}} } \begin{array} { |c| *{ \int_eval:n { #2 + 1 - #1 } }{B|} } \hline x= \int_step_function:nnN { #1 } { #2 } \battha_print_number:n \ \hline \end{array} } }

\cs_new:Nn \battha_print_number:n { & #1 }

\ExplSyntaxOff

\begin{document}

\numbers{9}

\medskip

\numbers[1]{9}

\medskip

\numbers[2]{10}

\end{document}

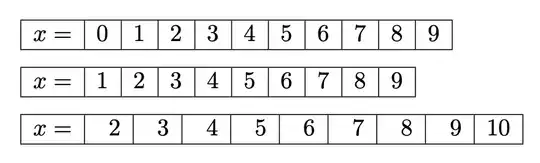

enter image description here

The column type B is locally defined to be w{r}{0.5em} if the final number is one-digit; 1em otherwise.

egreg
  • 1,121,712
