Can I use a picture to fill in Tikz elements? How?

Question

I want to use a picture from the internet or from my computer to fill in the cube area. I need it to have a wooden texture. I've read something about tcolorbox and the tikz library, but it didn't help me any further.

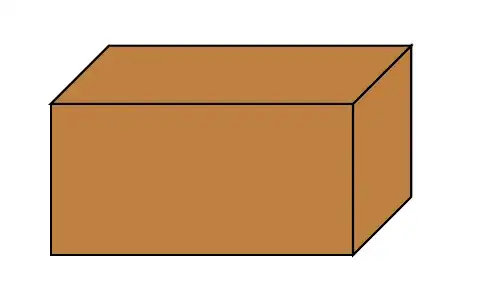

This is the cube:

\documentclass{article}
\usepackage{tikz}
\begin{document}
    \begin{tikzpicture}
        \pgfmathsetmacro{\cubex}{2}
        \pgfmathsetmacro{\cubey}{1}
        \pgfmathsetmacro{\cubez}{1}
            \draw[fill=brown]
            (0,0,0) -- ++(-\cubex,0,0) -- ++(0,-\cubey,0) -- ++(\cubex,0,0) -- cycle;
            \draw[fill=brown]
            (0,0,0) -- ++(0,0,-\cubez) -- ++(0,-\cubey,0) -- ++(0,0,\cubez) -- cycle;
            \draw[fill=brown]
            (0,0,0) -- ++(-\cubex,0,0) -- ++(0,0,-\cubez) -- ++(\cubex,0,0) -- cycle;
    \end{tikzpicture}
\end{document}

The image would be: https://img.myloview.de/sticker/plywood-texture-with-gnarl-and-natural-wood-pattern-400-170218458.jpg

A real life saver, thank you! – brinde Aug 22 '22 at 19:12 — brinde, Aug 22 '22 at 19:12

score 5 · Answer 1 · answered Aug 22 '22 at 16:18

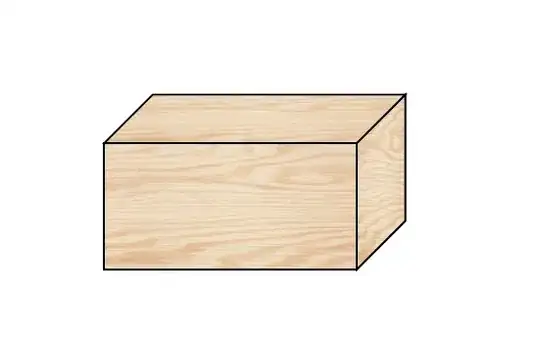

You can use the fill.image library:

\documentclass{article}
\usepackage{tikz}
\usetikzlibrary{fill.image}
\begin{document}
    \begin{tikzpicture}
        \pgfmathsetmacro{\cubex}{2}
        \pgfmathsetmacro{\cubey}{1}
        \pgfmathsetmacro{\cubez}{1}
            \draw[fill stretch image=Ikcfv.png]
            (0,0,0) -- ++(-\cubex,0,0) -- ++(0,-\cubey,0) -- ++(\cubex,0,0) -- cycle;
            \draw[fill stretch image=Ikcfv.png]
            (0,0,0) -- ++(0,0,-\cubez) -- ++(0,-\cubey,0) -- ++(0,0,\cubez) -- cycle;
            \draw[fill stretch image=Ikcfv.png]
            (0,0,0) -- ++(-\cubex,0,0) -- ++(0,0,-\cubez) -- ++(\cubex,0,0) -- cycle;
    \end{tikzpicture}
\end{document}

score 1 · Answer 2 · edited Aug 22 '22 at 16:27

Save the picture with some name (I used the name wood.jpg) in some folder and copy the path. Then try this code:

\documentclass{article}
\usepackage{tikz}
% paste the path to the picture e.g
\graphicspath{ {C:/images/tikz} }
\begin{document}
    \begin{tikzpicture}[scale=2]
        \tikzset{
            wood/.style={%
                draw=black!10,
                path picture={%
                    \node at (path picture bounding box.center) {
                        \includegraphics[width=0.4\linewidth]{wood.jpg}};}}}
        \pgfmathsetmacro{\cubex}{2}
        \pgfmathsetmacro{\cubey}{1}
        \pgfmathsetmacro{\cubez}{1}
        \fill[wood]
        (0,0,0) -- ++(-\cubex,0,0) -- ++(0,-\cubey,0) -- ++(\cubex,0,0) -- cycle;
        \fill[wood]
        (0,0,0) -- ++(0,0,-\cubez) -- ++(0,-\cubey,0) -- ++(0,0,\cubez) -- cycle;
        \fill[wood]
        (0,0,0) -- ++(-\cubex,0,0) -- ++(0,0,-\cubez) -- ++(\cubex,0,0) -- cycle;
        \draw (0,0,0) -- ++(-\cubex,0,0) -- ++(0,-\cubey,0) -- ++(\cubex,0,0) -- cycle;
        \draw
        (0,0,0) -- ++(0,0,-\cubez) -- ++(0,-\cubey,0) -- ++(0,0,\cubez) -- cycle;
        \draw (0,0,0) -- ++(-\cubex,0,0) -- ++(0,0,-\cubez) -- ++(\cubex,0,0) -- cycle;
    \end{tikzpicture}
\end{document}

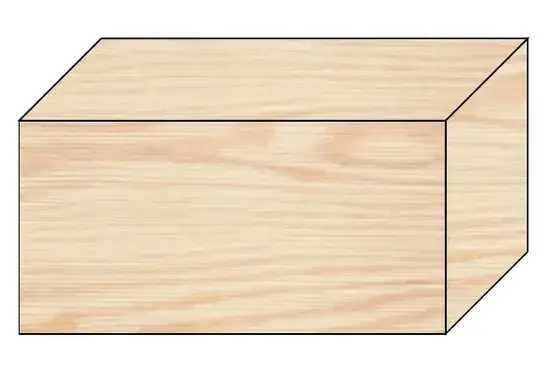

output:
