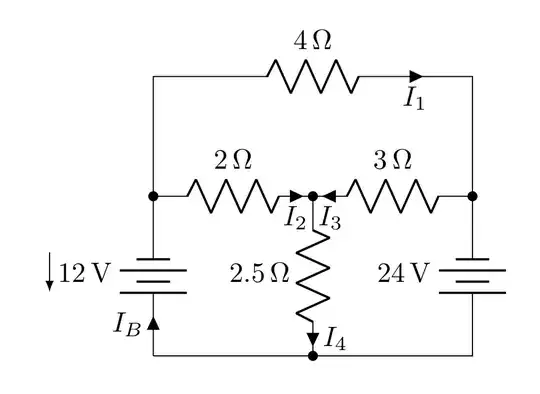

Here is my MWE taken from Flow of current in a circuit, except for the additional current direction at battery as well as one additional arrow mark using \draw [<-, >=latex]

\documentclass{article}
\usepackage[american,siunitx]{circuitikz}
\begin{document}
\begin{circuitikz}[]
    \draw [<-, >=latex] (-1.3,0.8)--(-1.3,1.3);
    \draw (0,0) to[battery, l=12<\volt>, i>^=$I_{B}$, >=latex] (0,2) -- (0,3.5)
                to[R,l=4<\ohm>,i_=$I_1$] (4,3.5) -- (4,2)
          (0,0) -- (4,0) to[battery, l=24<\volt>,i>] (4,2)
          (0,2) to[R, l=2<\ohm>, *-*,i_=$I_2$] (2,2)
                to[R, l=3<\ohm>, -*,i<_=$I_3$] (4,2)
          (2,0) to[R, l=2.5<\ohm>, *-,i<_=$I_4$] (2,2);
         % \draw[ultra  thin,color=gray!30, step=1cm, ] (0,0) grid (6,4);
\end{circuitikz}
\end{document}

How to use >=latex locally within circuitikz such that, arrow tips of current flow directions through all elements look like the arrow mark shown left of the battery?

Thank you enter image description here

  • Still I could not solve these my issue. It is giving errors – Ubaidulla Sep 10 '22 at 09:48
  • 2
    You could ask about these errors. Include your code in the question. Include the error description and include a link to where you got the solution(that is not working). – hpekristiansen Sep 10 '22 at 10:01
  • Anyway, circuitikz arrows are not arrows in the TikZ sense, they are shapes. If you want to use different types of arrows, look at the "advanced voltage and currents". – Rmano Sep 10 '22 at 22:34
