The code does not place the last picture (Bunny 3) and its label directly below the second picture (Bunny 2). The picture of Bunny 3 and its label are shifted. How can I do that? Thank you!

\documentclass[9pt,handout,compress,rgb]{beamer}
\usepackage{amstext}
\usepackage{amsmath}
\usepackage{amsfonts}
\usepackage{tikz}

\begin{document}
\begin{frame}


{\bf Contributors}


\begin{center}
\begin{tikzpicture}[scale=.4]
    \node[circle,draw=none, label={below:{\newline\bf Bunny 1}}, fill overzoom image={figures/bunny.png},inner sep=1cm] at (0,0) {};
    \node[circle,draw=none, label={below:{\newline\bf Bunny 2}}, fill overzoom image={figures/bunny.png},inner sep=1cm] at (13,0) {};


\end{tikzpicture}
\end{center}


\begin{columns}


\begin{column}{0.5\textwidth}
\bluebf{The research was very important.}
\end{column}


\begin{column}{0.4\textwidth}


\begin{center}
\begin{tikzpicture}[scale=.4]


\node[circle,draw=none, label={below:{\newline\bf Bunny 3}}, fill overzoom image={figures/bunny.png},inner sep=1cm] at (13,0) {};




\end{tikzpicture}
\end{center}
\end{column}


\end{columns}


\end{frame}
\end{document}
Vika
  • 405
  • Some notes: scale doesn't do much when it's not applied as an option to a node or if transform shape isn't set. The at (13,0) only specifies the position in relation to other stuff inside the tikzpicture not in relation to the page or the line. (Change it or leave it out in your last picture to see that.) Also Q516. – Qrrbrbirlbel Sep 16 '22 at 18:48
  • If you want them to line up, use three tikzpictures (or just \includegraphics) and put all of them into columns. – John Kormylo Sep 16 '22 at 19:08

2 Answers2

1

if you want aligned figures, you can use a similar columns structure for both lines:

\documentclass[9pt,handout,compress,rgb]{beamer}
\usepackage{amstext}
\usepackage{amsmath}
\usepackage{amsfonts}
\usepackage{tikz}
\usepackage[most]{tcolorbox}

\begin{document}
\begin{frame}


{\bf Contributors}


\begin{columns}
\begin{column}{0.5\textwidth}
\centering
\begin{tikzpicture}[scale=.4]
    \node[circle,draw=none, label={below:{\newline\bf Bunny 1}}, fill overzoom image={example-image-a},inner sep=1cm] at (0,0) {};
\end{tikzpicture}
\end{column}
\begin{column}{.4\textwidth}
\centering
\begin{tikzpicture}[scale=.4]
    \node[circle,draw=none, label={below:{\newline\bf Bunny 2}}, fill overzoom image={example-image-b},inner sep=1cm] at (13,0) {};
\end{tikzpicture}
\end{column}
\end{columns}


\begin{columns}
\begin{column}{0.5\textwidth}
\centering
\textbf{The research was very important.}
\end{column}
\begin{column}{0.4\textwidth}
\centering
\begin{tikzpicture}[scale=.4]
    \node[circle,draw=none, label={below:{\newline\bf Bunny 3}}, fill overzoom image={example-image-c},inner sep=1cm] at (13,0) {};
\end{tikzpicture}
\end{column}
\end{columns}


\end{frame}
\end{document}

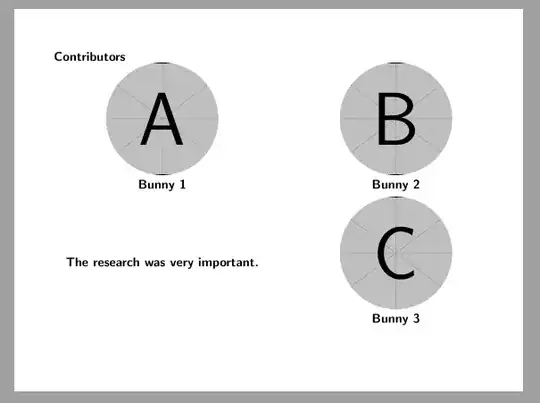

enter image description here

Ignasi
  • 136,588
0

Instead of using columns, you can align all elements in a single tikzpicture using the library positioning.

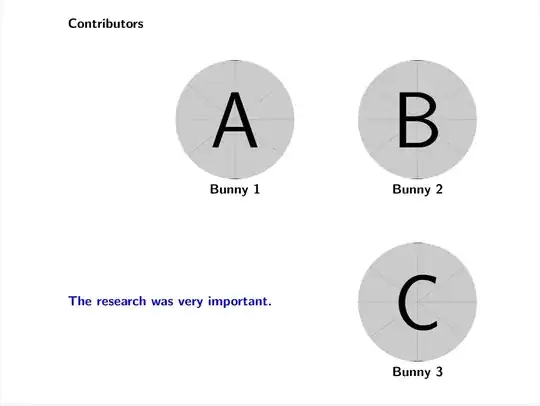

a

\documentclass[9pt,handout,compress,rgb]{beamer}
\usepackage{amstext}
\usepackage{amsmath}
\usepackage{amsfonts}

\usepackage{tikz}
\usetikzlibrary{positioning}% added <<<<<<<<<<<


\usepackage[skins]{tcolorbox}% added <<<<<<<<<<<
\usepackage{graphicx}% added <<<<<<<<<<<


\begin{document}
    \begin{frame}


    \begin{center}
        \begin{tikzpicture}[node distance=1.5cm]
            \node(a)[circle,draw=none, label={below:{\newline\bfseries Bunny 1}}, fill overzoom image={example-image-a}, inner sep=1cm] {};
            \node(b)[circle,draw=none, label={below:{\newline\bfseries Bunny 2}}, fill overzoom image={example-image-b}, inner sep=1cm, right = of a]  {};
            \node(c)[circle,draw=none, label={below:{\newline\bfseries Bunny 3}}, fill overzoom image={example-image-c}, inner sep=1cm, below = of b] {};
            \node(x)[font=\bfseries, text=black,above left= of a] {Contributors};%
            \node[font=\bfseries, text=blue, anchor= west] at (x.west|-c.center)  {The research was very important.};
        \end{tikzpicture}
    \end{center}

\end{frame}



\end{document}
Simon Dispa
  • 39,141
