Does anybody know how to draw the right vertical line parallel to the left vertical line?

CODE:

\documentclass{standalone}

\usepackage{tikz}


\begin{document}


\begin{tikzpicture}

   \draw[step=1ex,black!10,thin] (-4ex,-20ex) grid (15ex,50ex);

   \draw (0ex,0ex) arc [start angle=135, end angle=405, radius=6ex] -- (7ex,50ex) -- (0ex,50ex) -- (0ex,0ex);

\end{tikzpicture}




\end{document}

OUTPUT:

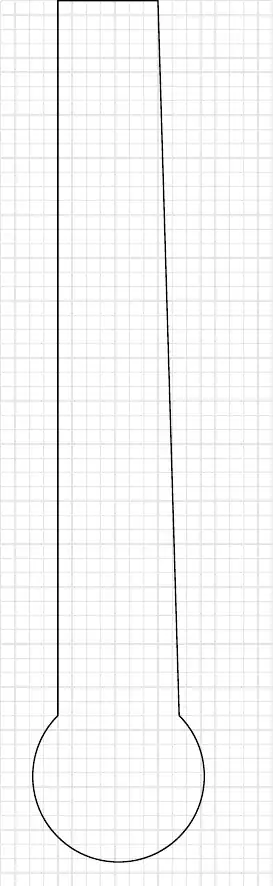

enter image description here

Marco Moldenhauer
  • 540

1 Answers1

3

You were very close to desired solution. Try the following:

\documentclass[margin=3mm]{standalone}
\usepackage{tikz}

\begin{document}
    \begin{tikzpicture}
\draw[step=1ex,black!10,thin] (-4ex,-12ex) grid ++ (16ex,64ex);
%
\draw (0,0) arc [start angle=135, end angle=405, radius=6ex] -- ++ (0,50ex) -| cycle;
    \end{tikzpicture}
\end{document}

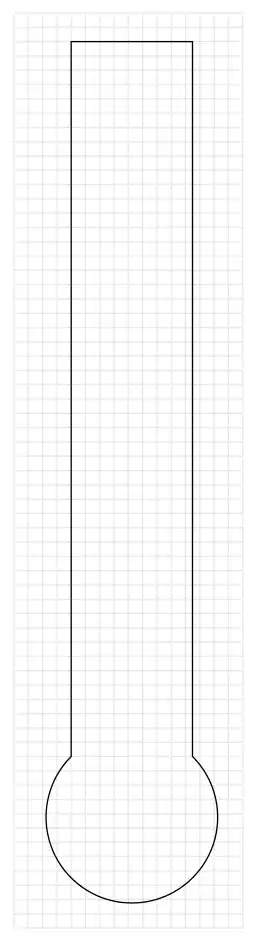

enter image description here

Difference between your and mine solution is use of the relative and orthogonal coordinates.

Zarko
