Multi-line label in \bordermatrix bleeds into the matrix

Question

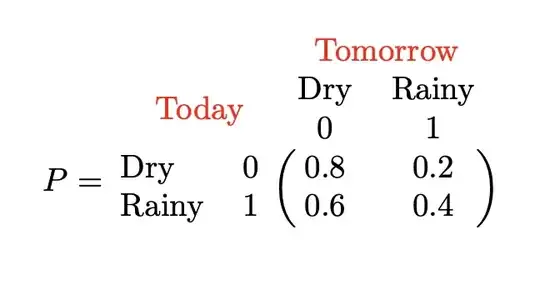

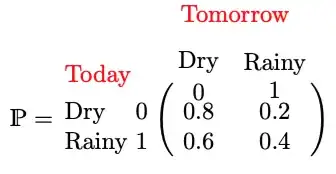

How do we put a multi-line label in \bordermatrix without a dirty hack? I do not wish to use other matrix packages or blockarray type of environments. I simply wish to leave extra vertical space before the actual matrix brackets/parantheses start. My code is below with a snapshot of the current situation (0 and 1 are part of labels below "dry" and "rainy"):

\documentclass{article}
\usepackage{amsmath, amssymb,amsfonts,amsthm,mathtools}
\usepackage{dsfont,mathbbol}
\usepackage[dvipsnames]{xcolor}
\begin{document}
\hspace*{0.46\textwidth} \textcolor{red}{Tomorrow}
%
[\mathds{P} =
\bordermatrix{
\text{\textcolor{red}{Today}}
& \substack{\text{\normalsize Dry} \*[0.1\textfloatsep] \text{\normalsize 0}}

& \substack{\text{\normalsize Rainy} \*[0.1\textfloatsep] \text{\normalsize 1}} \cr
\text{\normalsize Dry } \hfill 0    & 0.8   & 0.2 \cr
\text{\normalsize Rainy } \hfill 1  & 0.6   & 0.4
}
]
\end{document}

score 1 · Accepted Answer · answered Nov 02 '22 at 08:37

You can use nicematrix. There's room for improvement, but this is the idea.

\documentclass{article}
\usepackage{xcolor}
\usepackage{nicematrix}
\begin{document}
[
P=;\raisebox{1ex}{%
  \begin{NiceTabular}{@{} lccc @{}}[baseline=3]
  && \multicolumn{2}{c@{}}{\textcolor{red}{Tomorrow}} \
  \multicolumn{2}{c}{\textcolor{red}{Today}} &
    \begin{tabular}{@{}c@{}} Dry \ 0 \end{tabular} &
    \begin{tabular}{@{}c@{}} Rainy \ 1 \end{tabular} \
  Dry   & 0 & 0.8 & 0.2 \
  Rainy & 1 & 0.6 & 0.4
  \CodeAfter\SubMatrix({3-3}{4-4})
  \end{NiceTabular}}
]
\end{document}

Thank you @egreg. I tried it but I had a very hard time trying to figure out the option clashes. Finally, I gave up on not using a dirty hack. Please see the one I posted. — angie, Nov 02 '22 at 20:47

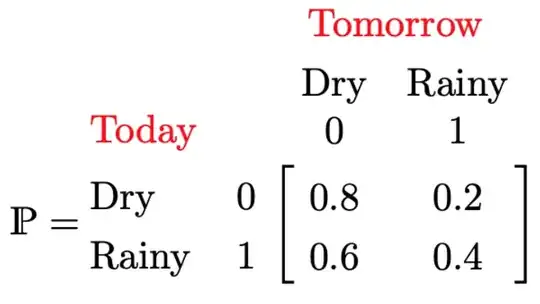

angie · Answer 2 · 2022-11-02T21:46:27.723

I used \noalign to raise the multi-line label, \stackengine (see Centering text in box) for IMO better linespacing compared to \substack and modified \bordermatrix (see bordermatrix with more space between rows when there are fractional elements) for spacing and removing brackets around the first matrix on the left.

\documentclass{article}
\usepackage{amsmath, amssymb,amsfonts,amsthm,mathtools}
\usepackage{dsfont,mathbbol}
\usepackage[dvipsnames]{xcolor}
% Made use of
% https://tex.stackexchange.com/questions/271730/centering-text-in-box
\usepackage{stackengine}
% Made use of
% https://tex.stackexchange.com/questions/125844/bordermatrix-with-more-space-between-rows-when-there-are-fractional-elements?rq=1
\usepackage{etoolbox}
\let\bbordermatrix\bordermatrix
\patchcmd{\bbordermatrix}{9.50}{4.75}{}{}
\patchcmd{\bbordermatrix}{\left(}{\left[}{}{}
\patchcmd{\bbordermatrix}{\right)}{\right]}{}{}
\let\bbbordermatrix\bordermatrix
\patchcmd{\bbbordermatrix}{9.50}{4.75}{}{}
\patchcmd{\bbbordermatrix}{\left(}{; }{}{}
\patchcmd{\bbbordermatrix}{\right)}{}{}{}
\begin{document}
\begin{center}
\begin{tabular}{c@{}c}
& \textcolor{red}{Tomorrow}
\[0.2\textfloatsep]
\begin{minipage}{2\arraycolsep}
{\begin{align}
\mathds{P} = ;
\bbbordermatrix{
\noalign{\vskip-0.75\baselineskip}\text{\textcolor{red}{Today}}
& \setstackEOL{\cr}\Longstack{\vphantom{0} \cr \vphantom{0}} \cr
\text{\normalsize Dry} & \mathclap{0} \cr
\text{\normalsize Rainy}    & \mathclap{1}
}

\end{align}}
\end{minipage}
&
\begin{minipage}{3\arraycolsep}
{\begin{align}
\bbordermatrix{
\noalign{\vskip-0.75\baselineskip}
& \setstackEOL{\cr}\Longstack{Dry \cr 0}
& \setstackEOL{\cr}\Longstack{Rainy \cr 1} \cr
& 0.8   & 0.2 \cr
& 0.6   & 0.4
}
\end{align*}}%
\end{minipage}
\end{tabular}
\end{center}
\end{document}
