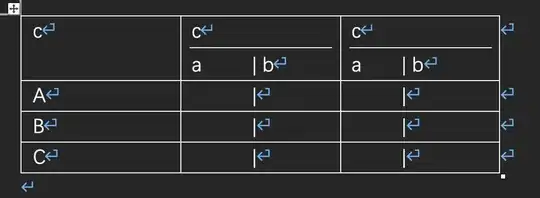

How to draw the following table in Latex?

Question

I have tried:

\begin{table}[h!]
\centering
\begin{tabular}{|c|c c |c c|}
 \hline
 &  c &c & a & a \\ [0.5ex]
 \hline
 Performance measure & $\hat{\mu}$ & $\hat{\si}$ & $\hat{\mu}$ & $\hat{\si}$ \\
 \hline\hline
 MSE & 0.0589 & 0.0302 & 0.0611 &0.0456 \\
 Bias & 0.0243 & -0.0415  &0.0332 & -0.0496 \\
 SD & 0.242 & 0.169 & 0.245 & 0.208 \\[1ex]
 \hline
\end{tabular}
\caption{Sample size is $n=20$.}
\label{table:1}
\end{table}

This kind of table is pretty easy to enter. I would recommend to read some tutorials such as lshort at first.@Hermi — Stephen, Nov 16 '22 at 05:56
Will you need automatic line wrapping of the cell contents? Does it have to be white on black, or would black on white be ok too? — Mico, Nov 16 '22 at 05:56

score 1 · Answer 1 · answered Nov 16 '22 at 13:13

Is something like this you want?

\documentclass[12pt]{article}
\usepackage[a4paper, total={180mm,257mm},left=15mm,top=20mm]{geometry}
\usepackage{stix}%<-- for using the Ldsh arrow
\usepackage{tabularray}
\begin{document}
    \begin{tblr}{colspec={Q[3cm,l]Q[1.5cm,l]Q[1.5cm,l]Q[1.5cm,l]Q[1.5cm,l]},cell{1}{2,4}={r=1,c=2}{l},rows={1cm,m},hlines,vlines,hline{2}={leftpos=-1, rightpos=-1},hline{2}={1}{leftpos=0, rightpos=0},cell{1}{1}={r=2,c=1}{l,h},vline{3,5}={2-5}{abovepos=-3, belowpos=-3}}
            \raisebox{-7pt}{C} & C & C & C & C \
            C & a & b & a     &     $b^{\Ldsh}$ \
            A &   &$\Ldsh$    &    &$\Ldsh$    \
            B &   &$\Ldsh$    &    &$\Ldsh$    \
            C &   &$\Ldsh$    &    &$\Ldsh$    \
    \end{tblr}
\end{document}

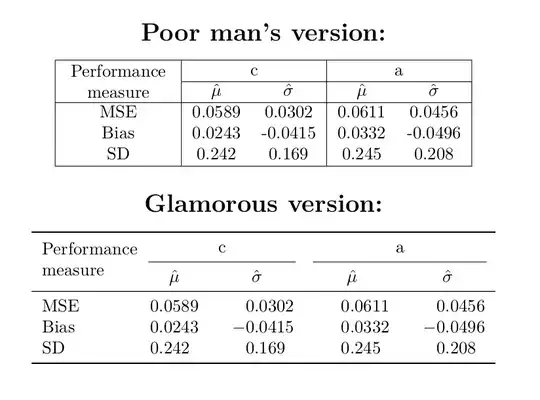

score 1 · Accepted Answer · answered Nov 17 '22 at 03:48

\documentclass {article}
\usepackage{multirow}
\usepackage{booktabs}
\usepackage{tabulary}
\usepackage{siunitx}
\begin{document}
\centering
\section*{Poor man's version:}
\begin{tabular}{|c|c c |c c|}\hline
\multirow{2}{*}{\parbox{6em}{\centering Performance measure}} & \multicolumn{2}{c|}{c}  &  \multicolumn{2}{c|}{a}   \\cline{2-5}
       & $\hat{\mu}$ & $\hat{\sigma}$ & $\hat{\mu}$ & $\hat{\sigma}$ \\hline
 MSE & 0.0589 & 0.0302 & 0.0611 &0.0456 \
 Bias & 0.0243 & -0.0415  &0.0332 & -0.0496 \
 SD & 0.242 & 0.169 & 0.245 & 0.208 \\hline
\end{tabular}
\section*{Glamorous version:}
\begin{tabulary}{\linewidth}{LS[table-format=1.4]SSS}\toprule
\multirow{2}{*}{\parbox{5em}{ Performance measure}}
 & \multicolumn{2}{c}{c}  &  \multicolumn{2}{c}{a}   \
 \cmidrule(rl){2-3} \cmidrule(rl){4-5}
      & {$\hat{\mu}$} & $\hat{\sigma}$ & $\hat{\mu}$ & $\hat{\sigma}$ \\midrule
 MSE & 0.0589 & 0.0302 & 0.0611 &0.0456 \
 Bias & 0.0243 & -0.0415  &0.0332 & -0.0496 \
 SD & 0.242 & 0.169 & 0.245 & 0.208 \\bottomrule
\end{tabulary}
\end{document}

Note: the different alignment of µ in the second table is a mistake as [table-format=1.4] and enclose the header in {} is used only in the second column, but it worth to show better the effect. — Fran, Nov 17 '22 at 08:50
