Barcode in Center head [chead] and on every page

Question

Hello everybody!

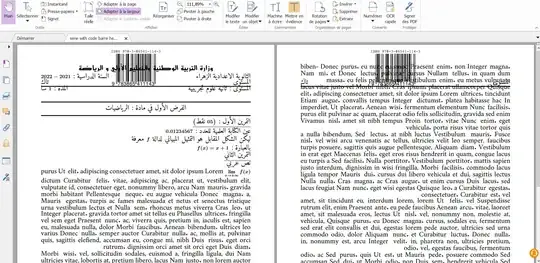

I am trying to get a Barcode in the Center head [chead] on every page like this work

First I decided to put the barcode inside a header. This worked but The code I had for the barcode:

\documentclass[paper=a4,12pt]{article}
\usepackage{fancyhdr}
%fancyhdr hiya li kadir khat asfal wa a3la waraka
\usepackage{lipsum}
\usepackage{pstricks}
\usepackage{pst-barcode}
\usepackage{graphicx}
\usepackage[right=2cm,left=2cm,top=1.6cm,bottom=2cm]{geometry}
\usepackage{amsmath,amsfonts,amssymb}
\usepackage{polyglossia}
\setdefaultlanguage[calendar=gregorian,locale=morocco]{arabic}
\newfontfamily\arabicfont[Script=Arabic,Scale=1.4,]{Amiri}
\newfontfamily\arabicfontsf[Script=Arabic,Scale=1.4,]{Amiri}
\newfontfamily\khat[Script=Arabic,Scale=1.4,]{ae_Cortoba}
\setotherlanguage{french}
\parindent=0pt
\pagestyle{fancy}
%fancy tar9im wara9a
\renewcommand{\footrulewidth}{2pt}
\renewcommand{\headrulewidth}{2pt}
\lhead{تاك}
\chead{ \begin{pspicture}(50mm,30mm)
        \psbarcode{978-3-86541-114}{includetext}{isbn}
\end{pspicture}}
\rhead{المستوى}
\lfoot{انتهى}
\cfoot{الصفحة
    $ 1 $
    من
    $ 1 $}
\rfoot{اقلب الصفحة}
\mathversion{bold}
\begin{document}
    \centerline{\textarabic{\khat وزارة التربية الوطنية والتعليم الأولي و الرياضة}}
    الثانوية الاعدادية الزهراء
    \hfill
    %hfill taktab mo9abil
    السنة الدراسية :
    $2022-2021$\\
المستوى : ثانية علوم تجريبية
\hfill
المدة :
$1$
سا\\

\rule{\textwidth}{2pt}
\centerline{الفرض الأول في مادة : الرياضيات}\\
\rule{\textwidth}{2pt}\\
\underline{التمرين الأول :
    ($ 05 $
    نقط)}\\
عين الكتابة العلمية للعدد :
$ 0.01234567 $\\
\begin{minipage}{10cm}
    ليكن الشكل المقابل هو التمثيل المبياني لدالة
    $ f $
    معرفة بالعبارة :
    $ f(x)=x+1 $
\end{minipage}\hfill
\begin{minipage}{6cm}
    \includegraphics[scale=0.6]{tex}
\end{minipage}\\
\underline{التمرين الثاني}\\
نص عربي\\
$ \mathop {\lim }\limits_{x \to  + \infty } f(x) $

\lipsum
\end{document}

Any ideas

@Mensch thank you. can you help me? – Novasky HICHAM Nov 18 '22 at 18:21 — Novasky HICHAM, Nov 18 '22 at 18:21
Sorry, I'm not using arabic language ... – Mensch Nov 18 '22 at 18:34 — Mensch, Nov 18 '22 at 18:34

Simon Dispa · Answer 1 · 2022-11-18T20:24:22.450

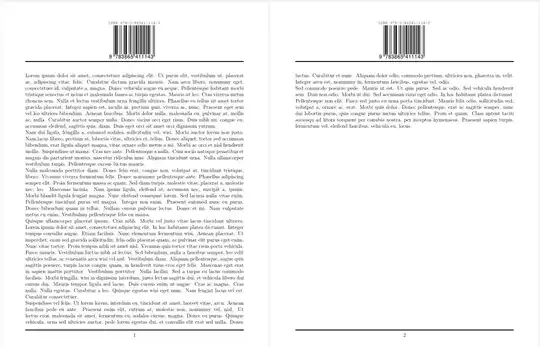

The barcode has a height of 30 mm. So in the geometry settings you must include a head height of at least of this size.

Also, the barcode needs to be moved for better centering.

\documentclass[paper=a4,12pt]{article}
\usepackage{fancyhdr}
%fancyhdr hiya li kadir khat asfal wa a3la waraka
\usepackage{lipsum}
\usepackage{pstricks}
\usepackage{pst-barcode}
\usepackage{graphicx}
\usepackage[right=2cm,left=2cm,top=1.6cm,bottom=2cm,
 headheight=90pt, includehead
 ]{geometry} %changed <<<<<<
\usepackage{amsmath,amsfonts,amssymb}
\usepackage{polyglossia}
\parindent=0pt
\pagestyle{fancy}
%fancy tar9im wara9a
\renewcommand{\footrulewidth}{2pt}
\renewcommand{\headrulewidth}{2pt}
\chead{\begin{pspicture}(-8mm,-2mm)(42mm,28mm)% center/adjust position changed <<<<<<
        \psbarcode{978-3-86541-114}{includetext}{isbn}
\end{pspicture}}
\mathversion{bold}
\begin{document}
    \lipsum

\end{document}

thank you for your efforts – Novasky HICHAM Nov 23 '22 at 23:17 — Novasky HICHAM, Nov 23 '22 at 23:17

score 0 · Answer 2 · answered Nov 18 '22 at 20:04

It is difficult to test your example, because it does not compile out of the box. I do not know how you compile it (xelatex? lualatex? How do you obtain the code?)

But one educated guess (but just a guess) is that you ignored this warning:

lilla.tex|| Package fancyhdr Warning: \headheight is too small (12.0pt):  Make it at least 90.11264pt, for example:
\setlength{\headheight}{90.11264pt}.
You might also make \topmargin smaller to compensate:
\addtolength{\topmargin}{-78.11264pt}.

So try to add, before \begin{document}, the suggested commands, and try again:

\setlength{\headheight}{90.11264pt}\addtolength{\topmargin}{-78.11264pt}

If that does not work, try to prepare an example that it's easy to test...

I compile with xelatex. ok thank you for your efforts. I will try to again — Novasky HICHAM, Nov 23 '22 at 23:20
