How to draw all functions solid instead of dashed in pgfplots

Question

This is my code.

\documentclass[13pt,a4paper]{scrartcl}
\usepackage[x11names]{xcolor}
\usepackage{tikz,pgfplots}
\pgfplotsset{compat=1.12}
\usetikzlibrary{intersections}
\begin{document}
\begin{center}
\begin{tikzpicture}[scale=1.2]
  \begin{axis}[axis lines=middle,xmin=-0.5,xmax=180,ymin=-0.5,ymax=150,
        x post scale=1.5,
        y post scale=2]
        \addplot+[no marks,domain=0:120,samples=200, ultra thick, color=DarkOliveGreen4] {x} node[right,pos=1] {45};
        \addplot+[no marks,domain=50:150,samples=200, ultra thick, color=Gold3] {-0.25x+112.5} node[below] {$\pi = 20%$};
        \addplot+[no marks,domain=50:150,samples=200, ultra thick, color=gray] {-0.66667x+133.333} node[below] {$\pi = 40%$};
        \addplot+[no marks,domain=50:100,samples=200, ultra thick, color=Gold3] {-1.5x+175} node[below] { $\pi = 60%$};
        \addplot+[domain=70:120,samples=200, color=DodgerBlue2, mark=none, ultra thick] {((9.4868-0.2sqrt(x))/0.8)^2};
        \addplot+[domain=55:120,samples=200, color=DodgerBlue2, mark=none, ultra thick] {((8.3666-0.6sqrt(x))/0.4)^2};
        \addplot+[domain=55:120,samples=200, color=DodgerBlue2, mark=none, ultra thick] {((8.944271-0.4sqrt(x))/0.6)^2};
        \filldraw (50,100) circle (2.5pt)node[right,font=\tiny] {};
        \filldraw (90,90) circle (1.5pt)node[right,font=\tiny] {};
        \filldraw (80,80) circle (1.5pt)node[right,font=\tiny] {};
        \filldraw (70,70) circle (1.5pt)node[right,font=\tiny] {};
  \end{axis}
\end{tikzpicture}
\end{center}
\end{document}

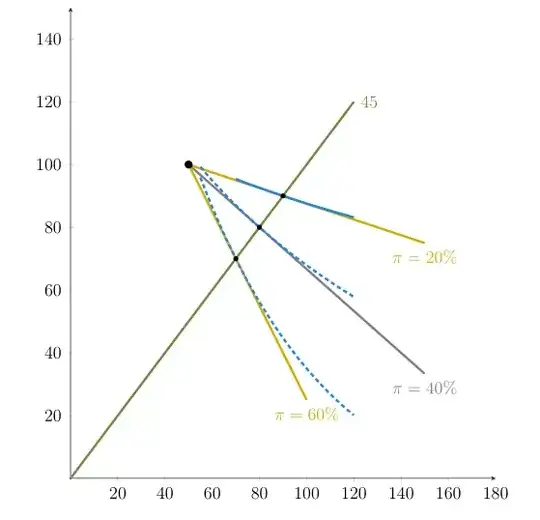

This is the image. I like to have all lines solid always, as long as I don't ask for another style. There are some similar questions. None did solve my problem.

Simon Dispa · Accepted Answer · 2022-11-28T16:49:12.710

From Torbjørn T.`s answer

pgfplots has a list of styles that it steps through for each \addplot. There are several lists to choose from, see section 4.7.7 Cycle Lists – Options Controlling Line Styles in the manual, but you can also define your own.

Here it was defined an empty list.

\documentclass[13pt,a4paper]{scrartcl}
\usepackage[x11names]{xcolor}
\usepackage{tikz,pgfplots}
\pgfplotsset{compat=1.12}
\usetikzlibrary{intersections}
\begin{document}
\begin{center}
    \begin{tikzpicture}[scale=1.2]
        \begin{axis}[axis lines=middle,xmin=-0.5,xmax=180,ymin=-0.5,ymax=150,
            x post scale=1.5,
            y post scale=2,
            cycle list ={} % added &lt;&lt;&lt;&lt;&lt;&lt;&lt;&lt;&lt;&lt;&lt;&lt;&lt;&lt;&lt;&lt;&lt;&lt;&lt;
            ]
            \addplot+[no marks,domain=0:120,samples=200, ultra thick, color=DarkOliveGreen4] {x} node[right,pos=1] {45};
            \addplot+[no marks,domain=50:150,samples=200, ultra thick, color=Gold3] {-0.25*x+112.5} node[below] {$\pi = 20\%$};
            \addplot+[no marks,domain=50:150,samples=200, ultra thick, color=gray] {-0.66667*x+133.333} node[below] {$\pi = 40\%$};
            \addplot+[no marks,domain=50:100,samples=200, ultra thick, color=Gold3] {-1.5*x+175} node[below] { $\pi = 60\%$};
            \addplot+[domain=70:120,samples=200, color=DodgerBlue2, mark=none, ultra thick] {((9.4868-0.2*sqrt(x))/0.8)^2};
            \addplot+[domain=55:120,samples=200, color=DodgerBlue2, mark=none, ultra thick] {((8.3666-0.6*sqrt(x))/0.4)^2};
            \addplot+[domain=55:120,samples=200, color=DodgerBlue2, mark=none, ultra thick] {((8.944271-0.4*sqrt(x))/0.6)^2};
            \filldraw (50,100) circle (2.5pt)node[right,font=\tiny] {};
            \filldraw (90,90) circle (1.5pt)node[right,font=\tiny] {};
            \filldraw (80,80) circle (1.5pt)node[right,font=\tiny] {};
            \filldraw (70,70) circle (1.5pt)node[right,font=\tiny] {};
        \end{axis}
    \end{tikzpicture}
\end{center}


\end{document}

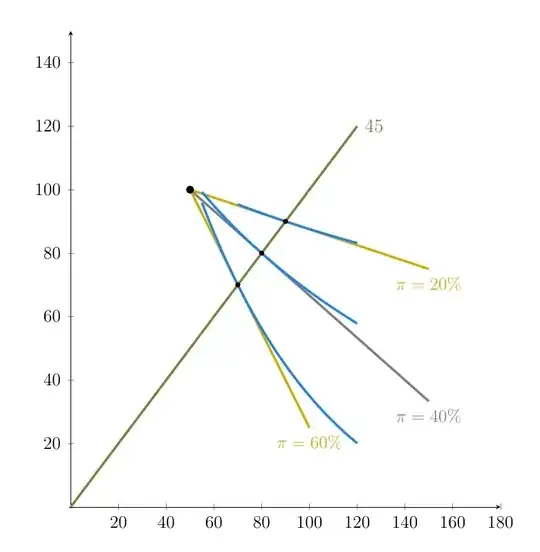

You can unify all the styles and simplify the code.

        \begin{tikzpicture}[scale=1.2]
            \begin{axis}[axis lines=middle,xmin=-0.5,xmax=180,ymin=-0.5,ymax=150,
                x post scale=1.5,
                y post scale=2,
                cycle list ={no marks,samples=200, ultra thick\\} % added <<<<<<<<<<<<<<<<<<<
                ]
                \addplot+[domain=0:120, color=DarkOliveGreen4] {x} node[right,pos=1] {45};
                \addplot+[domain=50:150, color=Gold3] {-0.25*x+112.5} node[below] {$\pi = 20\%$};
                \addplot+[domain=50:150, color=gray] {-0.66667*x+133.333} node[below] {$\pi = 40\%$};
                \addplot+[domain=50:100, color=Gold3] {-1.5*x+175} node[below] { $\pi = 60\%$};
                \addplot+[domain=70:120, color=DodgerBlue2] {((9.4868-0.2*sqrt(x))/0.8)^2};
                \addplot+[domain=55:120, color=DodgerBlue2] {((8.3666-0.6*sqrt(x))/0.4)^2};
                \addplot+[domain=55:120, color=DodgerBlue2] {((8.944271-0.4*sqrt(x))/0.6)^2};
                \filldraw (50,100) circle (2.5pt)node[right,font=\tiny] {};
                \filldraw (90,90) circle (1.5pt)node[right,font=\tiny] {};
                \filldraw (80,80) circle (1.5pt)node[right,font=\tiny] {};
                \filldraw (70,70) circle (1.5pt)node[right,font=\tiny] {};
            \end{axis}
        \end{tikzpicture}
