How can I do the right bracket like that of the left hand side?

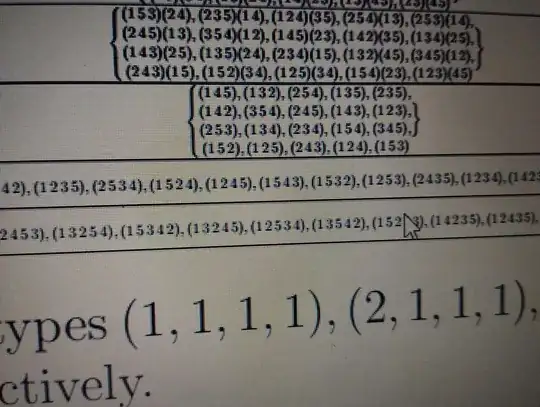

enter image description here

Memristor
  • 119
  • 1
    You should provide some code that goes with your question, a minimal working example). A solution for your problem (supposing wou have the equations in the image) is to introduce TikZ images that do nothing but create nodes at certain places in the equations, and then joint those places. See https://tex.stackexchange.com/questions/316068/how-to-define-a-point-for-connecting-nodes-from-two-different-tikz-pictures, the answer with >=4 votes. – Daniel N Dec 18 '22 at 03:18

1 Answers1

2

I will assume that you're interested in typesetting not just a tall curly brace or two, but also some of the other stuff that's shown in the screenshot you posted.

If that's the case, do look into using a Bmatrix* environment, which is provided by the mathtools package, a superset of the amsmath package.

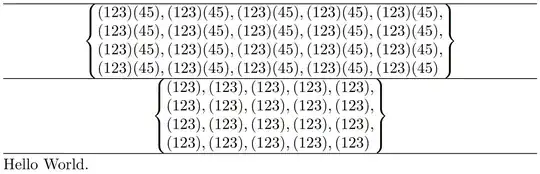

enter image description here

\documentclass{article} % or some other suitable document class
\usepackage{mathtools}  % for 'Bmatrix*' environment

\begin{document} \begingroup % limit scope of the next instruction \centering \hrule % draw a horizontal rule across the width of the text block $\begin{Bmatrix}[l] % 'l': left-aligned contents (123)(45),(123)(45),(123)(45),(123)(45),(123)(45),\ (123)(45),(123)(45),(123)(45),(123)(45),(123)(45),\ (123)(45),(123)(45),(123)(45),(123)(45),(123)(45),\ (123)(45),(123)(45),(123)(45),(123)(45),(123)(45)\ \end{Bmatrix}$ \hrule $\begin{Bmatrix}[l] (123),(123),(123),(123),(123),\ (123),(123),(123),(123),(123),\ (123),(123),(123),(123),(123),\ (123),(123),(123),(123),(123)\ \end{Bmatrix}$ \hrule \endgroup % end of scope of '\centering' instruction

\smallskip\noindent Hello World. % optional \end{document}


Addendum to address the OP's follow-up query: Here's how I would fix the code the OP posted in a comment to (a) make it compilable without errors and (b) create full-height curly braces. Observe the use of \left\{ and \right\}.

enter image description here

\documentclass{article}
\usepackage{makecell,adjustbox}
\usepackage{amsmath} % for '\text' macro
\begin{document}

\begin{adjustbox}{width = 1\textwidth} %\large % why?? % use 'array', not 'tabular', environment: $\begin{array}{c|c|c|c} \hline (2,1,1) := 1^1 2^2 & (1,2) & \left{ % full-height left-hand curly brace \text{\makecell[l]{% % process contents of \makecell in text mode (2 4)(3 5), (1 2)(3 4), (1 5)(3 4), (1 4)(2 5), (1 5)(2 3), \ (1 2)(4 5), (1 3)(2 5), (1 3)(2 4), (1 4)(3 5), (1 2)(3 5), \ (2 5)(3 4), (1 5)(2 4), (1 4)(2 3), (1 3)(4 5), (2 3)(4 5) }} \right} & % full-height right-hand curly brace 15 \ \hline \end{array}$ \end{adjustbox}

\end{document}

Mico
  • 506,678
  • Can I use this inside the makecell package? Because initially I used the makecell command to give line break. If yes, how? – Memristor Dec 18 '22 at 08:53
  • @Memristor - The answer would be "yes". I must admit to having no idea as why one would use \makecell to "create line break". Actually, I have no idea as to what you're trying to do, other than to create a tall closing curly brace. Please either edit your posting or, better still, ask a new question, to demonstrate how you employ \makecell and inquire whether there might be better ways to accomplish your typesetting objectives. – Mico Dec 18 '22 at 08:57
  • This is what i did, sir.
    \usepackage{makecell} \begin{document} \begin{adjustbox}{width = 1 \textwidth} \large \begin{tabular}{c|c|c|c} \hline $(2,1, 1)$:= $1^1 2^2$ & $(1, 2)$ & \bigg{{ \makecell{(2 4)(3 5),(1 2)(3 4), (1 5)(3 4), (1 4)(2 5),(1 5)(2 3), \ (1 2)(4 5), (1 3)(2 5), (1 3)(2 4), (1 4)(35), (1 2)(3 5), \ (2 5)(3 4), (1 5)(2 4), (1 4)(2 3), (1 3)(4 5), (2 3)(4 5)} } \bigg }$ & &15$\ \hline

    \end{adjustbox} \end{tabular} \end{document}

    – Memristor Dec 18 '22 at 09:14
  • @Memristor - Please see the addendum I posted at the end of my answer. – Mico Dec 18 '22 at 10:18
  • 1
    thank you so much, sir. It works perfectly fine now. Thanks for always coming to my survival. – Memristor Dec 18 '22 at 11:25
  • @Memristor - Your're most welcome. If you feel that this answer has fully addressed the issue you were looking to fix, feel free to "accept" it by clicking on the green checkmark symbol that's located to the left. ;-) – Mico Dec 18 '22 at 11:30
