Use \fauxsc if small caps not available

Question

This is a follow-up to Use \fauxsc if small caps not avaiaible

I need to use the Chivo font but, for unknown reasons, when package microtype is used, only the first invocation of \textsc works as expected.

Besides, is there a way to extend the \fauxsc macro so that it can accommodate math?

Here is a MWE:

\documentclass{article}
\usepackage{graphicx}
\usepackage[familydefault]{Chivo}
\usepackage{microtype}
\let\textsc\relax
\DeclareRobustCommand{\textsc}[1]{%
  \sbox0{x\xdef\testA{\the\font}}%
  \sbox0{\scshape x\xdef\testB{\the\font}}%
  \ifx\testA\testB\fauxsc{#1}\else{\scshape #1}\fi
}
\makeatletter
\newlength\fake@f
\newlength\fake@c
\def\fakesc#1{%
  \begingroup
  \xdef\fake@name{\csname\curr@fontshape/\f@size\endcsname}%
  \fontsize{\fontdimen8\fake@name}{\baselineskip}\selectfont
  \MakeUppercase{#1}%
  \endgroup
}
\makeatother
\newcommand\fauxsc[1]{\fauxschelper#1 \relax\relax}
\def\fauxschelper#1 #2\relax{%
  \fauxschelphelp#1\relax\relax
  \if\relax#2\relax\else\ \fauxschelper#2\relax\fi
}
\def\Hscale{.83}\def\Vscale{.72}\def\Cscale{1.00}
\def\fauxschelphelp#1#2\relax{%
  \ifnum#1&gt;``\ifnum#1<`{\scalebox{\Hscale}[\Vscale]{\uppercase{#1}}\else
    \scalebox{\Cscale}[1]{#1}\fi\else\scalebox{\Cscale}[1]{#1}\fi
  \ifx\relax#2\relax\else\fauxschelphelp#2\relax\fi}
\begin{document}
With \verb+\testsc+
\textsc{Abc def}

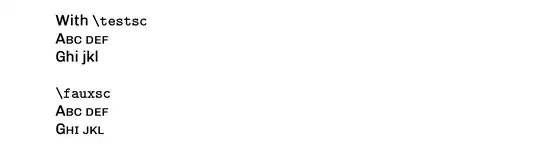

\textsc{Ghi jkl} % Incorrect output when package microtype is used
\bigskip
\verb+\fauxsc+
\fauxsc{Abc def}
\fauxsc{Ghi jkl}
\bigskip
% \textsc{Case $x$ is odd} % Math (in this case, $x$) produces an error
\end{document}

The result of \fauxsc is not pretty anyway. Consider giving up with small caps. — egreg, Feb 04 '23 at 21:06

score 2 · Accepted Answer · answered Feb 07 '23 at 15:05

First of all, I agree with @egreg's comment that the faux small caps are far from pretty and I wouldn't recommend using them at all. That said, here's what happens and how to fix it:

The problem is a side effect of pdflatex's font expansion, which makes fonts unequal (in terms of \ifx). I've reported this here a year ago, but it's unclear whether anything will be done about it, or whether it should even be considered a bug.

There is a simple solution, however, which Hans proposed in the above mentioned thread, and that is to compare \fontname\font instead of \the\font, so:

\DeclareRobustCommand{\textsc}[1]{%
  \sbox0{x\xdef\testA{\fontname\font}}%
  \sbox0{\scshape x\xdef\testB{\fontname\font}}%
  \ifx\testA\testB\fauxsc{#1}\else{\scshape #1}\fi
}

should yield the correct (albeit ugly) faux small caps.
