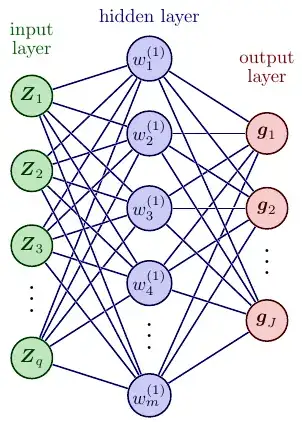

I have the following code to draw a Neural Network, which produces the image below

\documentclass[border=3pt,tikz]{standalone}
\usepackage{amsmath} % for aligned
%\usepackage{amssymb} % for \mathbb
\usepackage{tikz}
%\usepackage{etoolbox} % for \ifthen
\usepackage{listofitems} % for \readlist to create arrays
\usetikzlibrary{arrows.meta} % for arrow size
\usepackage[outline]{contour} % glow around text
\contourlength{1.4pt}

\tikzset{>=latex} % for LaTeX arrow head \usepackage{xcolor} \colorlet{myred}{red!80!black} \colorlet{myblue}{blue!80!black} \colorlet{mygreen}{green!60!black} \colorlet{myorange}{orange!70!red!60!black} \colorlet{mydarkred}{red!30!black} \colorlet{mydarkblue}{blue!40!black} \colorlet{mydarkgreen}{green!30!black} \tikzstyle{node}=[thick,circle,draw=myblue,minimum size=22,inner sep=0.5,outer sep=0.6] \tikzstyle{node in}=[node,green!20!black,draw=mygreen!30!black,fill=mygreen!25] \tikzstyle{node hidden}=[node,blue!20!black,draw=myblue!30!black,fill=myblue!20] \tikzstyle{node convol}=[node,orange!20!black,draw=myorange!30!black,fill=myorange!20] \tikzstyle{node out}=[node,red!20!black,draw=myred!30!black,fill=myred!20] \tikzstyle{connect}=[thick,mydarkblue] %,line cap=round \tikzstyle{connect arrow}=[-{Latex[length=4,width=3.5]},thick,mydarkblue,shorten <=0.5,shorten >=1] \tikzset{ % node styles, numbered for easy mapping with \nstyle node 1/.style={node in}, node 2/.style={node hidden}, node 3/.style={node out}, } \def\nstyle{int(\lay<\Nnodlen?min(2,\lay):3)} % map layer number onto 1, 2, or 3

\begin{document}

% NEURAL NETWORK with coefficients, shifted \begin{tikzpicture}[x=2.2cm,y=1.4cm] \message{^^JNeural network, shifted} \readlist\Nnod{4,5,3} % array of number of nodes per layer \readlist\Nstr{q,m,J} % array of string number of nodes per layer %\readlist\Cstr{\strut Z_{\index},w_{\index}^{(\prev)},g_{n,\index}^{}} \readlist\Cstr{\strut \boldsymbol{Z }{\index},w{\index}^{(\prev)},\boldsymbol{g}_{\index}^{}} \def\yshift{0.5} % shift last node for dots

\message{^^J Layer} \foreachitem \N \in \Nnod{ % loop over layers \def\lay{\Ncnt} % alias of index of current layer \pgfmathsetmacro\prev{int(\Ncnt-1)} % number of previous layer \message{\lay,} \foreach \i [evaluate={\c=int(\i==\N); \y=\N/2-\i-\c*\yshift; \index=(\i<\N?int(\i):"\Nstr[\lay]"); \x=\lay; \n=\nstyle;}] in {1,...,\N}{ % loop over nodes % NODES \node[node \n] (N\lay-\i) at (\x,\y) {$\Cstr[\lay]$};

  % CONNECTIONS
  \ifnum\lay&gt;1 % connect to previous layer
    \foreach \j in {1,...,\Nnod[\prev]}{ % loop over nodes in previous layer
      \draw[connect,white,line width=1.2] (N\prev-\j) -- (N\lay-\i);
      \draw[connect] (N\prev-\j) -- (N\lay-\i);
      %\draw[connect] (N\prev-\j.0) -- (N\lay-\i.180); % connect to left
    }
  \fi % else: nothing to connect first layer

}
\path (N\lay-\N) --++ (0,1+\yshift) node[midway,scale=1.5] {$\vdots$};

} % LABELS \node[above=5,align=center,mygreen!60!black] at (N1-1.90) {input\[-0.2em]layer}; \node[above=1,align=center,myblue!60!black] at (N2-1.90) {hidden layer}; \node[above=10,align=center,myred!60!black] at (N\Nnodlen-1.90) {output\[-0.2em]layer}; \end{tikzpicture} \end{document}

enter image description here

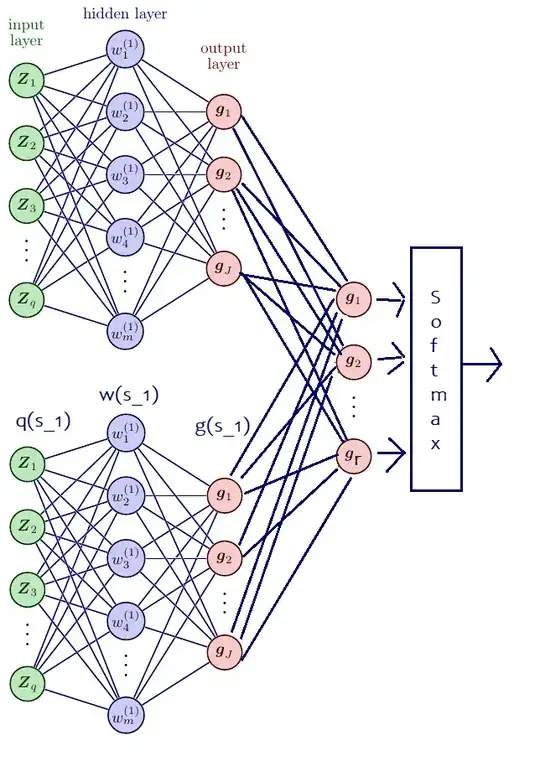

However, I am trying to make a figure that looks like the image below, but I don't know really where to start. Could someone please give me some advice on how to proceed? Thank you a lot.

enter image description here

  • 3
    You can use \begin{scope} ...\end{scope} to surround your existing code then copy paste it. and add the option [yshift=10cm] to have the same figure twice out redoing all of it. Then, you need to draw the last layer and a rectangle as a Softmax – anis Jan 12 '23 at 11:52
  • 2
    by looking at this line: \node \n] (N\lay-\i) at (\x,\y) {$\Cstr[\lay]$};, you can see that the node is named N<layer id>-<node id>. you can use it to link all the red nodes to all the new red nodes. – anis Jan 12 '23 at 11:54
  • 1

1 Answers1

4

Adjusting my answer to How to exclude certain elements from a built path loop in a neural network drawing with TikZ slightly we can create the following diagram.

  • Multiple \tikzMatrixNodes of the style vertical node matrix which basically create a matrix with a bunch of nodes where the matrix is used like a node (which it is).

    • With the second to last key we switch the second to last node to be ⋮.

    • The \tikzmatrixnodecounter returns a number we can use for node contents. The last node content is set manually in the mandatory argment to \tikzMatrixNodes.

  • The row of matrices is placed via the chains library (which needs a small fix to the matrix code). Unfortunately, the nodes inside the matrix don't get named according of the chain name (chain-1, chain-2, …) which is why the matrices are named explicitly.

  • The graphs library and its complete bipartite key is used to draw almost all lines between the nodes.

  • A scope environment with a hand-picked yshift makes sure that the second set of matrices are placed below the first one.

  • After both set of matrices are placed and their nodes are connected the third output set is placed to the right=of the other two output sets. Here, the ext.positioning-plus library allows me to just do

    right=of (output'top)(output'bot),


    and TikZ automatically places the new set vertically centered to the other two.

  • Again, the graph library helps to connect all the output nodes.

  • With another help of the ext.positioning-plus library we place the softmax node, here

    right=of |output'
    % or
    right=of |(output')


    not only places the new node to right of the output' matrix but also chooses a height that is the same as the output' matrix.

  • Finally, a few edges and ext.paths.ortho's only horizontal second help to draw the lines connecting softmax.

Code

\documentclass[tikz]{standalone}
\usetikzlibrary{arrows.meta, chains, graphs, ext.positioning-plus, ext.paths.ortho}
\ExplSyntaxOn \makeatletter % allowing matrices on chains
\tl_replace_once:Nnn \tikz@do@matrix@cont
  { \tikz@node@finish } { \tikz@alias \tikz@node@finish }
\makeatother \ExplSyntaxOff
\tikzset{
  node matrix/.style={
    row sep=y_node_dist, column sep=x_node_dist,
    every outer matrix/.append style={/pgf/inner sep=+0pt, /pgf/outer sep=+0pt, draw=none, fill=none, shape=rectangle},
    /utils/exec=\def\tikzmatrixnodecounter{\ifnum\pgfmatrixcurrentrow=1
      \the\pgfmatrixcurrentcolumn\else\the\pgfmatrixcurrentrow\fi},
    nodes/.style={node matrix/node/.append style={##1}}},
  node matrix/node/.style={
    node contents=, anchor=center, name/.expanded={\tikzmatrixname_\tikzmatrixnodecounter}},
  node matrix/place 1st node/.code args={#1,#2}{%
    \node[node matrix/node,nm \tikzmatrixnodecounter/.try,#1];},
  node matrix/place other nodes/.style args={#1,#2}{/tikz/node matrix/place oth node/.list={#2}},
  vertical   node matrix/.style={/tikz/node matrix/place oth node/.code={%
    \pgfmatrixendrow  \node[node matrix/node,nm \tikzmatrixnodecounter/.try,##1];}},
  horizontal node matrix/.style={/tikz/node matrix/place oth node/.code={%
    \pgfmatrixnextcell\node[node matrix/node,nm \tikzmatrixnodecounter/.try,##1];}}}
\newcommand*\tikzMatrixNodes[2][1]{%
  \matrix[every node matrix/.try,node matrix,#1]{
    \tikzset{node matrix/place 1st node={#2},node matrix/place other nodes={#2}}\\};}
\tikzset{
  color let/.code args={#1=#2}{\colorlet{#1}{#2}},
  color set/.style args={#1=#2/#3}{color let={#1fg=#2}, color let={#1bg=#3}},
  color use/.style={draw=#1bg, fill=#1fg}}
\begin{document}
\begin{tikzpicture}[
  >=Latex, thick, node distance=3mm and 10mm,
  layers/.style={circle, thick, draw, minimum size=+10mm, inner sep=+.1em},
  input/.style ={layers, color use=input},
  hidden/.style={layers, color use=hidden},
  output/.style={layers, color use=output},
  every node matrix/.style={vertical node matrix},
  every label/.append style={align=center},
  label distance=1mm,
  second to last/.style={
    nm #1/.style={node contents=\vdots, text height=2ex, fill=none, draw=none, minimum size=+0pt,inner sep=+0pt, shape=rectangle},
    row #1/.append style={row sep=.75*y_node_dist},
    row \pgfinteval{#1-1}/.append style={row sep=.75*y_node_dist}},
  color set/.list={input=green!60!black/green!30!black,
                   hidden=blue!50/blue,
                   output=red!80!black/red!40!black}
]
\begin{scope}[start chain=going right]
  \tikzMatrixNodes[
    label={[inputfg]input\\layer},
    on chain, second to last=4, name=input'top, % can't use chain name
    nodes={input, node contents=$Z_\tikzmatrixnodecounter$},
  ]{,,,,node contents=$Z_q$}
  \tikzMatrixNodes[
    label={[hiddenfg]hidden layer},
    on chain,  second to last=5, name=hidden'top,
    nodes={hidden, node contents=$w_\tikzmatrixnodecounter^{(1)}$}
  ]{,,,,,node contents=$w_m^{(1)}$}
  \tikzMatrixNodes[
    label={[outputfg]output\\layer},
    on chain,  second to last=3, name=output'top,
    nodes={output, node contents=$g_\tikzmatrixnodecounter$}
  ]{,,,node contents=$g_J$}
  \path[blue] graph[use existing nodes]{
                               {\foreach \x in {1,...,3,5} {input'top_\x}}
       -- [complete bipartite] {\foreach \x in {1,...,4,6} {hidden'top_\x}}
       -- [complete bipartite] {\foreach \x in {1,2,4}     {output'top_\x}}
    };
\end{scope}
\begin{scope}[start chain=going right, yshift=-8.5cm]
  \tikzMatrixNodes[
    label={[inputfg]$q(s_1)$},
    on chain, second to last=4, name=input'bot, % can't use chain name
    nodes={input, node contents=$Z_\tikzmatrixnodecounter$},
  ]{,,,,node contents=$Z_q$}
  \tikzMatrixNodes[
    label={[hiddenfg]$w(s_1)$},
    on chain,  second to last=5, name=hidden'bot,
    nodes={hidden, node contents=$w_\tikzmatrixnodecounter^{(1)}$}
  ]{,,,,,node contents=$w_m^{(1)}$}
  \tikzMatrixNodes[
    label={[outputfg]$g(s_1)$},
    on chain,  second to last=3, name=output'bot,
    nodes={output, node contents=$g_\tikzmatrixnodecounter$}
  ]{,,,node contents=$g_J$}
  \path[yellow!50!black] graph[use existing nodes]{
                               {\foreach \x in {1,...,3,5} {input'bot_\x}}
       -- [complete bipartite] {\foreach \x in {1,...,4,6} {hidden'bot_\x}}
       -- [complete bipartite] {\foreach \x in {1,2,4}     {output'bot_\x}}
    };
\end{scope}

\tikzMatrixNodes[ node distance=3mm and 20mm, right=of (output'top)(output'bot), second to last=3, name=output', nodes={output, node contents=$g_\tikzmatrixnodecounter$} ]{,,,node contents=$g_r$} \graph[use existing nodes]{ {\foreach \tb in {top, bot}{\foreach \x in {1,2,4}{output'\tb_\x}}} -- [complete bipartite] {\foreach \x in {1,2,4}{output'_\x}} }; \node[ draw, minimum width=1cm, align=center, right=of |output'] (softmax) {S\o\f\t\m\a\x}; \path[->] (softmax) edge + (right:1cm); \path[<-, only horizontal second] (softmax) edge (output'_1) edge (output'_2) edge (output'_4); \end{tikzpicture} \end{document}

Output

enter image description here
