horizontal alignement (leftalign kind) with underset/overset

Question

I am trying to write something like \underset{\mathbb{P}}{foo} where the beginning of foo would be horizontally aligned with the P of \mathbb{P}, even if 'foo' can be wide (let's say, something like A \leftarrow \{0,1\} \cup \{5,6\}). In other words : I am trying to have a leftalign option for underset.

Moreover, I would be happy if this tip can be compatible with the \oset and \uset macro defined in Change vertical space in overset, that allows to control the vertical space.

The only solution I actually found is to manually add horizontal spaces, but the amount of space I need to add is dependent on the content in the underset command, so it takes a lot of time when I need to use a lot of them.

score 1 · Answer 1 · answered Jan 15 '23 at 16:51

I can propose this \lunderset that takes as optional argument the separation between the main object and the subscript (default 1pt).

\documentclass{article}
\usepackage{amsmath,amssymb}
\makeatletter
\DeclareRobustCommand{\lunderset}[3][1pt]{%
  \binrel@{#3}%
  \binrel@@{%
    \vbox{%
      \offinterlineskip\m@th
      \ialign{##\hfil\cr$\displaystyle#3$\cr\noalign{\vskip#1}$\scriptstyle#2$\cr}%
    }%
  }%
}
\makeatother
\begin{document}
[
\lunderset{\mathbb{P}}{A\gets{0,1}\cup{5,6}}
]
[
\lunderset[0pt]{\mathbb{P}}{A\gets{0,1}\cup{5,6}}
]
[
\lunderset{\mathbb{P}}{f\gets{0,1}\cup{5,6}}
]
\end{document}

If you plan to use this also inline, using \displaystyle is not the best, but this requires some more work.

\documentclass{article}
\usepackage{amsmath,amssymb}
\makeatletter
\DeclareRobustCommand{\lunderset}[3][1pt]{%
  \binrel@{#3}%
  \binrel@@{\mathpalette\lunderset@{{#1}{#2}{#3}}}%
}
\newcommand{\lunderset@}[2]{\lunderset@@#1#2}
\newcommand{\lunderset@@}[4]{%
  \vbox{%
    \offinterlineskip\m@th
    \ialign{##\hfil\cr$#1#4$\cr\noalign{\vskip#2}$\lunderset@size{#1}#3$\cr}%
  }%
}
\newcommand{\lunderset@size}[1]{%
  \ifx#1\displaystyle\scriptstyle\else
  \ifx#1\textstyle\scriptstyle\else
  \scriptscriptstyle\fi\fi
}
\makeatother
\begin{document}
[

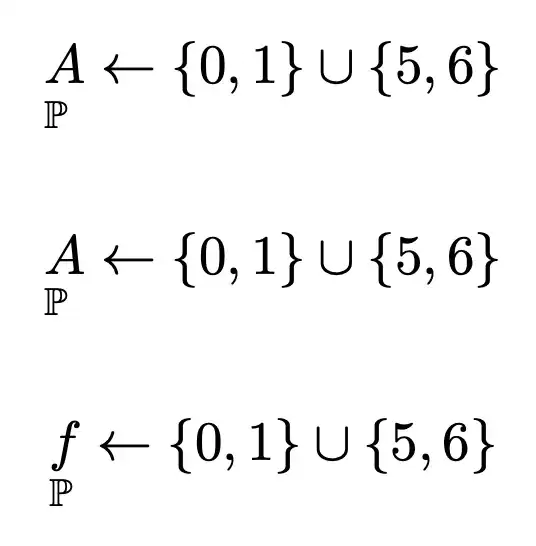

\lunderset{\mathbb{P}}{A\gets{0,1}\cup{5,6}}
]
[
\lunderset[0pt]{\mathbb{P}}{A\gets{0,1}\cup{5,6}}
]
[
\lunderset{\mathbb{P}}{f\gets{0,1}\cup{5,6}}
]
\end{document}

Thank you! I will try it right now! – mahaaaham Jan 15 '23 at 17:45 — mahaaaham, Jan 15 '23 at 17:45

Sandy G · Answer 2 · 2023-01-15T16:48:51.660

0

Here is a macro \lunderset (left underset) that uses \mathrlap from the mathtools package together with a phantom of the main content.

\documentclass{article}
\usepackage{amssymb, mathtools}
\newcommand{\lunderset}[2]{\underset{\mathrlap{#1}}{\mathrlap{#2}}\phantom{#2}}
\begin{document}
Some text $\lunderset{\mathbb{P}}{A \leftarrow {0,1} \cup {5,6}}$ more text
\end{document}

This is compatible with Mico's linked solution for \uset, except in your usage the main content shouldn't be contained in \mathrel. So use the following:

\makeatletter
\newcommand{\uset}[3][0ex]{%
  {\mathop{#3}\limits_{
    \vbox to#1{\kern-7\ex@
    \hbox{$\scriptstyle#2$}\vss}}}}
\makeatother

edited Jan 15 '23 at 16:48

answered Jan 15 '23 at 16:21

Sandy G

42,558

Thanks! I like the simplicity of it! I read this article, quoted by the mathtools documentation, pdf about alignement macros, and I think it helped me to understand the general idea! If you have nice references like this one to understand more the alignements in latex, I would be very happy. – mahaaaham Jan 15 '23 at 17:54
