Why the lambda is not rendering in equation (2) below? What was my mistake there? You will need the Definitions folder from the MDPI journal template to run this.

\documentclass[energies,article,submit,pdftex,moreauthors]{Definitions/mdpi}
\usepackage[utf8]{inputenc}

\title{test_lambda}

\begin{document}

\maketitle

\section{Introduction}

Like this, it works:

\begin{equation} \lambda \end{equation}

But here, it does not work:

\begin{equation} \mathbf{w_{out} = r^{\mathit{T}}M(M^{\mathit{T}}M + \mathit{\lambda}^{\mathrm{2}}I)^{-1}}, \end{equation}

And like this $\lambda$, it also works.

\end{document}

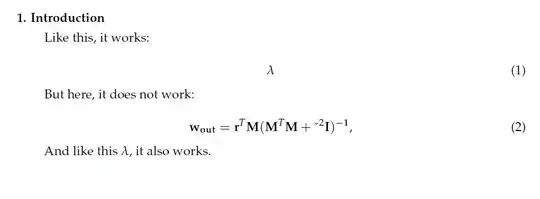

Output:

enter image description here

EDIT: Link to get the MDPI template:

Template

Murilo
  • 347

1 Answers1

3

The font does not include a bold math version of lambda. If you can live with a normal math lambda, you could use \mathnormal to switch back to the normal weight:

\documentclass[energies,article,submit,pdftex,moreauthors]{Definitions/mdpi}
\usepackage[utf8]{inputenc}
\firstpage{1}
\makeatletter
\setcounter{page}{\@firstpage}
\makeatother
\pubvolume{1}
\issuenum{1}
\articlenumber{0}
\pubyear{2023}
\copyrightyear{2023}
%\externaleditor{Academic Editor: Firstname Lastname}
\datereceived{ }
\daterevised{ } % Comment out if no revised date
\dateaccepted{ }
\datepublished{ }
%\datecorrected{} % For corrected papers: "Corrected: XXX" date in the original paper.
%\dateretracted{} % For corrected papers: "Retracted: XXX" date in the original paper.
\hreflink{https://doi.org/} % If needed use \linebreak
\Title{Title}

% MDPI internal command: Title for citation in the left column \TitleCitation{Title}

% Author Orchid ID: enter ID or remove command \newcommand{\orcidauthorA}{0000-0000-0000-000X} % Add \orcidA{} behind the author's name %\newcommand{\orcidauthorB}{0000-0000-0000-000X} % Add \orcidB{} behind the author's name

% Authors, for the paper (add full first names) \Author{Firstname Lastname $^{1,\dagger,\ddagger}$\orcidA{}, Firstname Lastname $^{2,\ddagger}$ and Firstname Lastname $^{2,}$*}

%\longauthorlist{yes}

% MDPI internal command: Authors, for metadata in PDF \AuthorNames{Firstname Lastname, Firstname Lastname and Firstname Lastname}

% MDPI internal command: Authors, for citation in the left column \AuthorCitation{Lastname, F.; Lastname, F.; Lastname, F.} % If this is a Chicago style journal: Lastname, Firstname, Firstname Lastname, and Firstname Lastname.

% Affiliations / Addresses (Add [1] after \address if there is only one affiliation.) \address{% $^{1}$ \quad Affiliation 1; e-mail@e-mail.com\ $^{2}$ \quad Affiliation 2; e-mail@e-mail.com}

% Contact information of the corresponding author \corres{Correspondence: e-mail@e-mail.com; Tel.: (optional; include country code; if there are multiple corresponding authors, add author initials) +xx-xxxx-xxx-xxxx (F.L.)}

% Current address and/or shared authorship \firstnote{Current address: Affiliation 3.} \secondnote{These authors contributed equally to this work.}

\begin{document}

\maketitle

\section{Introduction}

Like this, it works:

\begin{equation} \lambda \end{equation}

But here, it does not work:

\begin{equation} \mathbf{w_{out} = r^{\mathit{T}}M(M^{\mathit{T}}M + \mathnormal{\lambda}^{\mathrm{2}}I)^{-1}}, \end{equation}

And like this $\lambda$, it also works.

\end{document}

  • 1
    The culprit is \usepackage{mathpazo} (you can reproduce the problem with article if you load it) – Rmano Jan 24 '23 at 12:32
