How to center Font Awesome in table?

Question

There are some very advanced answer that I can't figure out how to adapt to this situation.

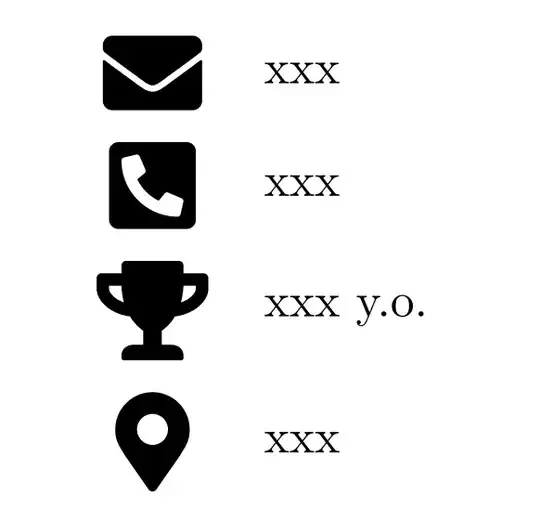

When I do the following the text in the second column does get vertically centred for some reason.

Question

Can someone figure out how vertically centre both columns?

\documentclass{article}
\usepackage[utf8]{inputenc}
\usepackage{fontawesome5}
\begin{document}
\begin{tabular}{cl}
{\huge \faIcon{envelope}} \hspace{0.5em}         & xxx\\
{\huge \faIcon{phone-square-alt}} \hspace{0.5em} & xxx\\
{\huge \faIcon{trophy}} \hspace{0.5em}           & xxx y.o.\\
{\huge \faIcon{map-marker-alt}} \hspace{0.5em}   & xxx
\end{tabular}
\end{document}

Update

The problem seams to be related to font awesome?

\documentclass{article}
\usepackage[utf8]{inputenc}
\usepackage{fontawesome5}
\usepackage{tabularray}
\begin{document}
\begin{tblr}{Q[c,m]Q[l,m]]}
\hline
{\huge \faIcon{envelope}} \hspace{0.5em}         & xxx\\
\hline
{\huge \faIcon{phone-square-alt}} \hspace{0.5em} & xxx\\
{\huge \faIcon{trophy}} \hspace{0.5em}           & xxx y.o.\\
{\huge \faIcon{map-marker-alt}} \hspace{0.5em}   & xxx
\end{tblr}
\end{document}

While the accepted answer in the question you linked question looks complicated, it directly links to another answer using tabularray package which should be very simple: https://tex.stackexchange.com/questions/7208/how-to-vertically-center-the-text-of-the-cells/611601#611601 — user202729, Feb 03 '23 at 15:09
You should be able to easily find the documentation of that LaTeX package on CTAN to look up the options passed to the environment. — user202729, Feb 03 '23 at 15:14
@user202729 Great documentation indeed. The problem seams to be related to font awesome? Now updated OP. — Sandra Schlichting, Feb 03 '23 at 15:31
This is unexpected. Anyway it's probably the same reason as https://tex.stackexchange.com/a/653498/250119...? — user202729, Feb 03 '23 at 16:38
The problem isn't font awesome per se but a {\huge } character in a cell and a normal character in the other cell, where both are on baseline… https://tex.stackexchange.com/a/673903/23418 I would go with \raisebox{}{} trials too https://tex.stackexchange.com/a/673871/23418 — gildux, Feb 04 '23 at 02:04

score 5 · Answer 1 · answered Feb 03 '23 at 15:00

This can be achieve by using array.sty and the column format m. and the MWE is:

\documentclass{article}
\usepackage[utf8]{inputenc}
\usepackage{fontawesome5}
\usepackage{array}
\begin{document}
\begin{tabular}{m{5pc}m{5pc}}%change the value as you like
{\huge \faIcon{envelope}} \hspace{0.5em}         & xxx\\
{\huge \faIcon{phone-square-alt}} \hspace{0.5em} & xxx\\
{\huge \faIcon{trophy}} \hspace{0.5em}           & xxx y.o.\\
{\huge \faIcon{map-marker-alt}} \hspace{0.5em}   & xxx
\end{tabular}
\end{document}

It is still not vertical centred. Have a look https://imgur.com/a/jIl1phX . — Sandra Schlichting, Feb 03 '23 at 15:16

score 5 · Answer 2 · answered Feb 03 '23 at 19:43

5

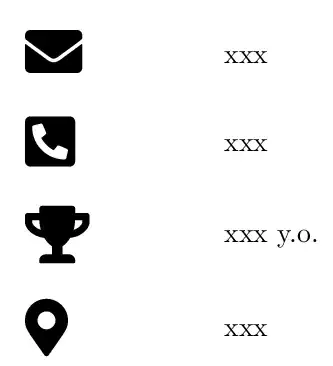

A possible solution with a TikZ matrix:

\documentclass{article}
%\usepackage[utf8]{inputenc}%no more needed
\usepackage{fontawesome5}
\usepackage{tikz}
\usetikzlibrary{matrix}
\begin{document}
\begin{tikzpicture}
\matrix[
    matrix of nodes,
    column 1/.style={nodes={font=\huge, anchor=center}},
    column 2/.style={nodes={anchor=west}}
    ]
    {
    \faIcon{envelope} &[.5em] xxx\\
    \faIcon{phone-square-alt} & xxx\\
    \faIcon{trophy} & xxx y.o.\\
    \faIcon{map-marker-alt}  & xxx\\
    };
\end{tikzpicture}
\end{document}

answered Feb 03 '23 at 19:43

CarLaTeX

62,716

2

Good idea to use a matrix! – samcarter_is_at_topanswers.xyz Feb 03 '23 at 19:49
@samcarter_is_at_topanswers.xyz Thanks! – CarLaTeX Feb 03 '23 at 19:51

score 4 · Accepted Answer · answered Feb 03 '23 at 20:47

Vertical centering is not well defined when a single row of text is concerned: what do you take as vertical center? With respect to lowercase letters? Or those with neither ascenders nor descenders? Or those with both?

On the other hand, fontawesome symbols have different ideas of where they sit on:

\_\faIcon{envelope}\_\faIcon{phone-square-alt}\_\faIcon{trophy}\_\faIcon{map-marker-alt}\_

I redefined the \_ command for this purpose in order to show precisely the baseline at its top edge.

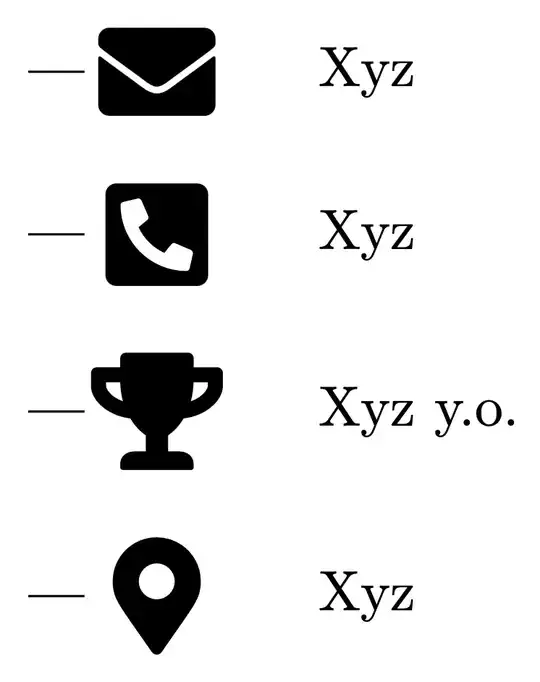

An answer might be to adopt as vertical center the math axis, where fraction lines sit on. As the picture shows, the math axis is at the center of the capital X.

\documentclass{article}
%\usepackage[utf8]{inputenc}
\usepackage{fontawesome5}
\newcommand{\myfa}[1]{%
  $\vcenter{\hbox{\huge\faIcon{#1}}}$%
}
\begin{document}
\begin{tabular}{c@{}cl}
$\frac{\quad}{}$&
\myfa{envelope}\hspace{0.5em}         & Xyz\\
$\frac{\quad}{}$&
\myfa{phone-square-alt}\hspace{0.5em} & Xyz\\
$\frac{\quad}{}$&
\myfa{trophy}\hspace{0.5em}           & Xyz y.o.\\
$\frac{\quad}{}$&
\myfa{map-marker-alt}\hspace{0.5em}   & Xyz
\end{tabular}
\end{document}

samcarter_is_at_topanswers.xyz · Answer 4 · 2023-02-03T16:43:06.523

3

Not a nice solution, but you could manually raise the text in the second column a bit:

\documentclass{article}
\usepackage{fontawesome5}
\usepackage{xcolor}
\usepackage{tabularray}
\usepackage{graphicx}
\begin{document}
\begin{tblr}{
  colspec={c|[1cm,white]l},
  column{1}={font=\huge},
}
\faIcon{envelope}          & \raisebox{1.4ex}{xxx}\
\faIcon{phone-square-alt}  & \raisebox{1.4ex}{xxx}\
\faIcon{trophy}            & \raisebox{1.4ex}{xxx y.o.}\
\faIcon{map-marker-alt}    & \raisebox{1.4ex}{xxx}\
\end{tblr}
\end{document}

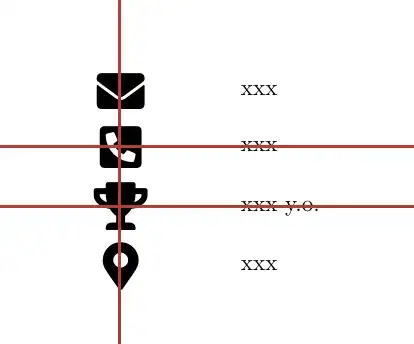

(the redlines are just for visualisation)

edited Feb 03 '23 at 16:43

answered Feb 03 '23 at 15:47

samcarter_is_at_topanswers.xyz

158,329

A similar approach here: https://tex.stackexchange.com/a/521571/9179 – Sandra Schlichting Feb 03 '23 at 19:49
