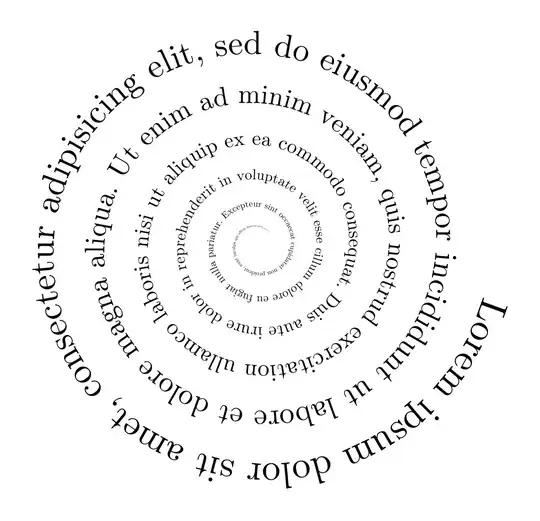

I want to get a spiral as shown in this post: Text spirals with TikZ enter image description here at the same time, I need to use Cyrillic: "Пример: нужно написать по спирали это предложение."

I found a way to change the language to Greek: Text spirals with TikZ using greek text

Doing by analogy, I realized that I should use lines such as:

\usepackage[english,russian]{babel}
 \usepackage[T2A]{fontenc}
 \selectlanguage{russian}

but I didn't manage to get the result

\documentclass[tikz,border=5]{standalone}
 \usepackage[english,russian]{babel}
 \usepackage[T2A]{fontenc}
    \usetikzlibrary{decorations.text}
    \begin{document}
    \selectlanguage{russian}
    \begin{tikzpicture}[
      decoration={
        reverse path,
        text effects along path,
        text={Пример: нужно написать по спирали это предложение.},
        text effects/.cd,
          text along path,
          character count=\i, character total=\n,
          characters={scale=1-\i/\n}
        }
    ]
    \draw [decorate] (0,0)
        \foreach \i [evaluate={\r=(\i/2000)^2;}] in {0,5,...,2880}{ -- (\i:\r)};
    \end{tikzpicture}
    \end{document}

1 Answers1

4

You need to brace each letter, which can be done with \text_map_function:nN, fully expanding the result.

\documentclass{article}
\usepackage[T2A]{fontenc}
\usepackage[english,russian]{babel}

\usepackage{tikz} \usetikzlibrary{decorations.text}

\ExplSyntaxOn \NewExpandableDocumentCommand{\bracetext}{m} { \text_map_function:nN {#1} __anton_brace:n } \cs_new:Nn __anton_brace:n { {#1} } \ExplSyntaxOff

\begin{document}

\begin{tikzpicture}[ decoration={ reverse path, text effects along path, text/.expanded=\bracetext{Пример: нужно написать по спирали это предложение.}, text effects/.cd, text along path, character count=\i, character total=\n, characters={scale=1-\i/\n} } ] \draw [decorate] (0,0) \foreach \i [evaluate={\r=(\i/2000)^2;}] in {0,5,...,2880}{ -- (\i:\r)}; \end{tikzpicture}

\end{document}

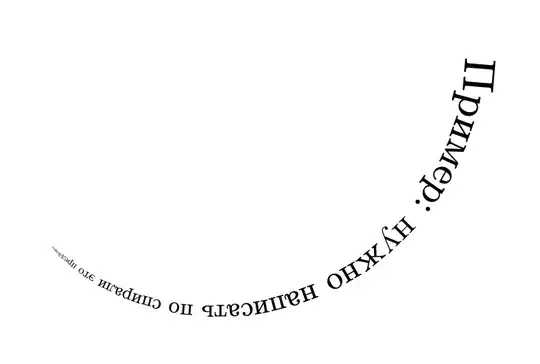

enter image description here
