Trouble with \splitfrac{}{} from mathtools

Question

I have trouble with the following code which stems from my somehow faulty use of the \splitfrac environment. Can someone help?

\item $p_{(lon_i,lat_r,jul_a)} = \frac{1}{\splitfrac{1 + e^{-(\beta_0 + \beta_1MeanTempoerature_{(lon_i,lat_r,jul_a)} + \beta_2Altitude_{(lon_i,lat_r,jul_a)} + \beta_3Longtitude_{(lon_i,lat_r,jul_a)})}}{e^{-( + \beta_4Latitude_{(lon_i,lat_r,jul_a)} + \beta_5JulianDate_{(lon_i,lat_r,jul_a)})}}}$

A minimal working example follows:

\documentclass{article}
\usepackage{amsmath}
\usepackage{mathtools}
\begin{document}
\begin{itemize}
\item $p_{(lon_i,lat_r,jul_a)} = \frac{1}{\splitfrac{1 + e^{-(\beta_0 + \beta_1MeanTempoerature_{(lon_i,lat_r,jul_a)} + \beta_2Altitude_{(lon_i,lat_r,jul_a)} + \beta_3Longtitude_{(lon_i,lat_r,jul_a)})}}{e^{-( + \beta_4Latitude_{(lon_i,lat_r,jul_a)} + \beta_5JulianDate_{(lon_i,lat_r,jul_a)})}}}$
\end{itemize}
\end{document}

Welcome to TeX.SE! Can you describe what is your problem? And also provide a minimal complete example? — mickep, Mar 02 '23 at 19:02
I think the problem is related to the way I set parentheses. To me, they appear alright. I can safely assert that the rest of the code okay and that all relevant packages are loaded. — RibbitRibbit, Mar 02 '23 at 19:15
Your code compiles; the math content just runs off the page. So, I don't understand the question when you say "I have trouble... from my faulty use of the \splitfrac{}{} [command]." Can you elaborate? — Werner, Mar 02 '23 at 19:24
@Werner, that's interesting, I get an error when I compile the code: Undefined control sequence. l.8 \abx@aux@refcontext {nyt/global//global/global}. What error do you get RibbitRibbit, could you edit it into your question please? — JamesT, Mar 02 '23 at 19:26
@JamesT: That looks like a faulty .aux. Remove it and try again. — Werner, Mar 02 '23 at 19:33
Arr ya so I am writing a rmarkdown file and R Studio throws the following error:
<argument> \splitfrac {1 + e^{-(\beta _0 + \beta _1MeanTempoerature_{(lon_i,... l.99 ...beta_5JulianDate_{(lon_i,lat_r,jul_a)})}}} $ — RibbitRibbit, Mar 02 '23 at 19:37
@RibbitRibbit: Then you need to add \usepackage{mathtools} to your YAML header, as is described here: How to include LaTeX package in R Markdown?; specifically, header-includes: -\usepackage{mathtools} — Werner, Mar 02 '23 at 19:39
@ Werner True. Fortunately all necessary packages are in my yaml header already. — RibbitRibbit, Mar 02 '23 at 19:40
Off-topic: The mathtools package loads the amsmath package automatically. Hence, no need to load amsmath explicitly. — Mico, Mar 02 '23 at 19:58
@RibbitRibbit: Then you shouldn't be getting an error. You might consider provided a minimal rmarkdown document that replicates your error. — Werner, Mar 02 '23 at 22:21

Mico · Answer 1 · 2023-03-02T21:20:29.303

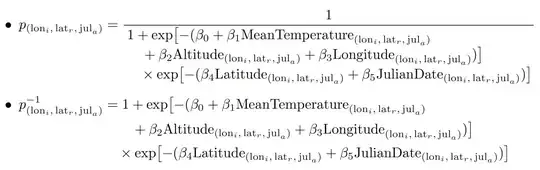

If you don't want to abbreviate the variable names and the names in the three-part subscripts, I suggest you use two nested \splitfrac statements, so as to split the denominator across three lines, rather than just two lines. For better legibility, I would also replace e^{...} notation with \exp[...] notation.

That said, I think you should abandon the \frac setup entirely and provide an expression for p^{-1} rather than for p. See the second example below.

\documentclass{article}
\usepackage{geometry}  % set page parameters as needed
\usepackage{mathtools} % mathtools loads amsmath automatically
\newcommand{\vn}[1]{\mathrm{#1}}
% handy shortcut macro:
\newcommand{\llj}{(\vn{lon}_i,\,\vn{lat}_r,\,\vn{jul}_a)}
\begin{document}
\begin{itemize}
\item
$p_{\llj} =
\dfrac{1}{\splitfrac{\splitfrac{%
         1 + \exp\bigl[-( \beta_0
           + \beta_1 \vn{MeanTemperature}{\llj}}{%
           + \beta_2 \vn{Altitude}{\llj}
           + \beta_3 \vn{Longitude}{\llj})\bigr] }}{%
      \times\exp\bigl[-(
           \beta_4 \vn{Latitude}{\llj}
         + \beta_5 \vn{JulianDate}_{\llj})\bigr]}}$
\item
$\begin{aligned}[t]
p_{\llj}^{-1}
  &=    1 + \exp\bigl[-( \beta_0
          + \beta_1 \vn{MeanTemperature}{\llj} \
  &\qquad + \beta_2 \vn{Altitude}{\llj}
          + \beta_3 \vn{Longitude}{\llj})\bigr] \
  &\quad \times\exp\bigl[-(
            \beta_4 \vn{Latitude}{\llj}
          + \beta_5 \vn{JulianDate}_{\llj})\bigr]
\end{aligned}$
\end{itemize}
\end{document}

That's a useful reply, thank you. Didn't even cross my mind... — RibbitRibbit, Mar 02 '23 at 19:53
I would go even further and introduce auxiliary functions p_mean(lon, lat, jul) = exp[...] and p_season(lon, lat, jul) = exp[...] (naming is just a guess). You can then represent the main equation in terms of these. — jpa, Mar 03 '23 at 07:29
@jpa - That's definitely very good advice for the OP to take to heart. — Mico, Mar 03 '23 at 07:53

Zarko · Answer 2 · 2023-03-02T19:45:47.617

4

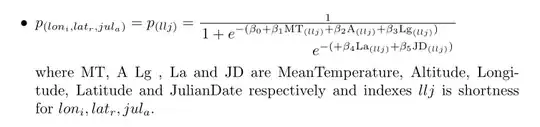

Hm, something like this:

\documentclass{article}
\usepackage{amsmath}
\usepackage{mathtools}
\begin{document}
\begin{itemize}
\item   $p_{(lon_i,lat_r,jul_a)}  = p_{(llj)}
    = \frac{1}{\splitfrac{1 + e^{-(\beta_0 + \beta_1 \mathrm{MT}{(llj)} + \beta_2 \mathrm{A}{(llj)} + \beta_3 \mathrm{Lg}{(llj)})}}
                {e^{-( + \beta_4 \mathrm{La}{(llj)} + \beta_5 \mathrm{JD}_{(llj)})}}
            }
        $\par
where MT, A Lg , La and JD are  MeanTemperature, Altitude, Longitude, Latitude and JulianDate respectively and indexes $llj$ is shortness for $lon_i,lat_r,jul_a$.
\end{itemize}
\end{document}

edited Mar 02 '23 at 19:45

answered Mar 02 '23 at 19:28

Zarko

296,517

Ja, I definitely get your motivation to use abbreviations. I want to put as least strain on the reader as possible however, which is my motivation to split the frac instead. – RibbitRibbit Mar 02 '23 at 19:35
1

@Mico, huh, I blindly copy OP terms ... and not check their spelling :-). Now corrected. Thank you very much for pointing on this tipos. – Zarko Mar 02 '23 at 19:45
+1, and kodos for suggesting the "lln" abbreviation. :-) – Mico Mar 02 '23 at 20:03
