x-height correction for different fonts

Question

Boondox calligraphic math font and Arev math font do not have the same height for their upper-case letters and their lower-case letters.

Adapting the answer of Fake small caps with XeTeX/fontspec?, I used scalebox to define and correct the heights so that they match for upper-case and lower-case letters. See below the implementation of the new macro \mathcalbd that includes the height correction and the basic macro \mathcalbdnocorr that excludes the correction.

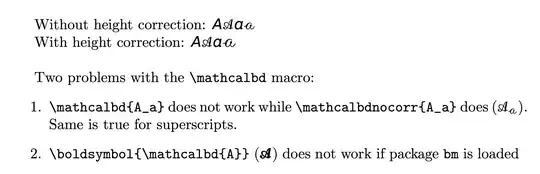

Two problems occur:

subscripts and superscripts are not supported
there is a conflict with package bm

\documentclass{article}
\usepackage{graphicx}
\usepackage{arevmath}
\usepackage{amsmath}
% \usepackage{bm}
\DeclareFontFamily{U}{BOONDOX-calo}{\skewchar\font=45}
\DeclareFontShape{U}{BOONDOX-calo}{m}{n}{<-> BOONDOX-r-calo}{}
\DeclareFontShape{U}{BOONDOX-calo}{b}{n}{<-> BOONDOX-b-calo}{}
\makeatletter
\DeclareMathAlphabet{\m@thcalbd}{U}{BOONDOX-calo}{m}{n}
\SetMathAlphabet{\m@thcalbd}{bold}{U}{BOONDOX-calo}{b}{n}
% https://tex.stackexchange.com/questions/55664/
\def\calfont@helper#1 #2\relax{%
  @calfont@helper#1\relax\relax%
  \if\relax#2\relax\else\ @calfont@helper#2\relax\fi}
\def@calfont@helper#1#2\relax{%
  \ifcat\relax#1#1% for escape sequences
  \else%
    \ifnum#1=\lccode#1\relax%
      \mathchoice%
        {\scalebox{1.20529}{$\m@th\m@thcalbd{#1}$}}%
        {\scalebox{1.20529}{$\m@th\m@thcalbd{#1}$}}%
        {\scalebox{.90396}{$\m@th\mkern-1.5mu\m@thcalbd{#1}$}}%
        {\scalebox{.70308}{$\m@th\mkern-1.1mu\m@thcalbd{#1}$}}%

    \else\m@thcalbd{#1}\fi%
  \fi%
  \ifx\relax#2\relax\else@calfont@helper#2\relax\fi}
\newcommand{\mathcalbd}[1]{\bgroup\calfont@helper#1 \relax\relax\egroup}
\newcommand{\mathcalbdnocorr}[1]{\m@thcalbd{#1}}
\makeatother
\begin{document}
Without height correction: $A\mathcalbdnocorr{A} a\mathcalbdnocorr{a}$
With height correction: $A\mathcalbd{A} a\mathcalbd{a}$
\bigskip
Two problems with the \verb+\mathcalbd+ macro:
\begin{enumerate}
\item \verb+\mathcalbd{A_a}+ does not work while
  \verb+\mathcalbdnocorr{A_a}+ does ($\mathcalbdnocorr{A_a}$). Same is
  true for superscripts.
\item \verb+\boldsymbol{\mathcalbd{A}}+ ($\boldsymbol{\mathcalbd{A}}$)
  does not work if package \texttt{bm} is loaded
\end{enumerate}
\end{document}

score 2 · Accepted Answer · answered Mar 12 '23 at 10:33

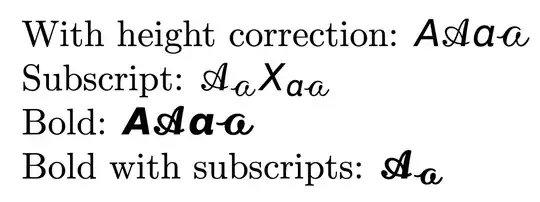

You may use two font families, with different scaling factors, for uppercase and lowercase.

\documentclass{article}
\usepackage{arevmath}
\usepackage{amsmath}
\usepackage{bm}
\DeclareFontFamily{U}{BOONDOX-calo}{\skewchar\font=45 }
\DeclareFontShape{U}{BOONDOX-calo}{m}{n}{<-> s[1.1] BOONDOX-r-calo}{}
\DeclareFontShape{U}{BOONDOX-calo}{b}{n}{<-> s[1.1] BOONDOX-b-calo}{}
\DeclareFontFamily{U}{BOONDOX-calo-scaled}{\skewchar\font=45 }
\DeclareFontShape{U}{BOONDOX-calo-scaled}{m}{n}{<-> s[1.20529] BOONDOX-r-calo}{}
\DeclareFontShape{U}{BOONDOX-calo-scaled}{b}{n}{<-> s[1.20529] BOONDOX-b-calo}{}
\DeclareMathAlphabet{\mathcalupper}{U}{BOONDOX-calo}{m}{n}
\SetMathAlphabet{\mathcalupper}{bold}{U}{BOONDOX-calo}{b}{n}
\DeclareMathAlphabet{\mathcallower}{U}{BOONDOX-calo-scaled}{m}{n}
\SetMathAlphabet{\mathcallower}{bold}{U}{BOONDOX-calo-scaled}{b}{n}
\ExplSyntaxOn
\NewDocumentCommand{\mathcalbd}{m}
 {{
  \tl_set:Nn \l_tmpa_tl { #1 }
  \regex_replace_all:nnN { [a-z] } { { \c{mathcallower}{\0} } } \l_tmpa_tl
  \mathcalupper{ \tl_use:N \l_tmpa_tl }
 }}
\ExplSyntaxOff
\begin{document}
With height correction: $A\mathcalbd{A} a\mathcalbd{a}$
Subscript: $\mathcalbd{A_a} X_{a\mathcalbd{a}}$
Bold: $\bm{A} \bm{\mathcalbd{A}} \bm{a}\bm{\mathcalbd{a}}$
Bold with subscripts: $\bm{\mathcalbd{A_a}}$
\end{document}
