standalone problem with algorithmicx, algorithm, algpseudocode packages. perhaps a missing \item

Question

I am using the code from How may I remove \EndIf and \EndFor in algorithmicx?

The code, as is, works in article class. But in standalone it fails. I searched and found one needs to add [H] to algorithm when using standalone. Reference: standalone document with algorithm2e package

However, if you give the algorithm the [H] option, it will no longer be floating, so you can use it.

But that did not fix the problem.

Here is the code I am using

\documentclass[10pt,crop]{standalone}  %error
%\documentclass[10pt]{article}  %works
\usepackage{float}
\usepackage{algorithmicx}
\usepackage{algorithm} % http://ctan.org/pkg/algorithms
\usepackage{algpseudocode} % http://ctan.org/pkg/algorithmicx
\begin{document}
\begin{algorithm}[H]
\begin{algorithmic}[1]
\Procedure{A}{}
    \ForAll{$a\in A$}
        \If{$a\geq b$}
            \State\Return $a$
        \EndIf
    \EndFor
\EndProcedure
\end{algorithmic}
\end{algorithm}
\end{document}

Compiling with lualatex gives

(./first_order_series.aux)
(/usr/local/texlive/2022/texmf-dist/tex/latex/base/ts1cmr.fd)
! LaTeX Error: Something's wrong--perhaps a missing \item.
See the LaTeX manual or LaTeX Companion for explanation.
Type  H <return>  for immediate help.
 ...
l.10 \begin{algorithm}
                    [H]
?

Removing the [H] makes no difference. Compiling with article class, it works, no error

I wanted to use standalone to make a single pdf file which I can include as an image in the main document.

I also tried the workaround given in Problem with algorithmicx: perhaps a missing \item. What's wrong?

loading algpseudocode after algcompatible,

But it made no effect. The error is still there only when using standalone.

Is there a workaround?

TL 2022

Update

Here is a much simpler MWE which shows an error using algorithmic package

\documentclass[10pt,crop]{standalone}  %error
%\documentclass[10pt]{article}  %works
\usepackage{amsmath}
\usepackage{algorithmic}
\usepackage{float}
\begin{document}
\begin{algorithmic}[H]
\STATE $i\gets 10$
\end{algorithmic}
\end{document}

lualatex gives

(./first_order_series.aux)
(/usr/local/texlive/2022/texmf-dist/tex/latex/base/ts1cmr.fd)
! LaTeX Error: Something's wrong--perhaps a missing \item.
See the LaTeX manual or LaTeX Companion for explanation.
Type  H <return>  for immediate help.
 ...
l.9 \STATE
         $i\gets 10$
?

It looks like standalone is not compatible with all these algorithm packages?

For your very last code block: try with \documentclass[10pt,crop,varwidth]{standalone} — samcarter_is_at_topanswers.xyz, Mar 24 '23 at 20:42
@samcarter_is_at_topanswers.xyz wow! that fixed everything (adding varwidth). If you like to make this answer will be happy to accept it. — Nasser, Mar 24 '23 at 20:47
There is no need to load algorithmicx, since it should be loaded by your choice of language/style when loading algpseudocode. — Werner, Mar 24 '23 at 21:03

David Carlisle · Accepted Answer · 2023-03-24T21:14:20.860

You should not use floats with standalone, but these are all vertical display environments so can not be used in a horizontal box like \mbox which is essentially what standalone provides. If you use the varwidth option it instead uses a \parbox so that you can use display material, and uses the varwidth package to choose a suitable width.

\documentclass[10pt,crop,varwidth]{standalone}  %error
%\documentclass[10pt]{article}  %works
\usepackage{float}
\usepackage{algorithmicx}
\usepackage{algorithm} % http://ctan.org/pkg/algorithms
\usepackage{algpseudocode} % http://ctan.org/pkg/algorithmicx
\begin{document}

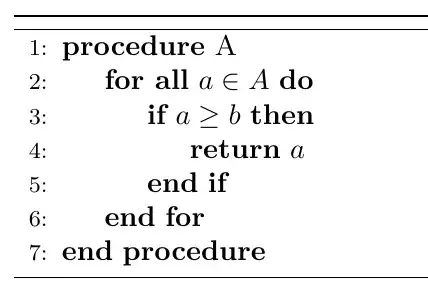

\begin{algorithmic}[1]
\Procedure{A}{}
    \ForAll{$a\in A$}
        \If{$a\geq b$}
            \State\Return $a$
        \EndIf
    \EndFor
\EndProcedure
\end{algorithmic}
\end{document}
