I want to use JetBrains Mono (and its code ligatures) to render -> as an arrow. However, I get mixed results depending on the monospaced environment I am using. My goal is for this to work in the minted environment for Haskell:

\documentclass{article}
\usepackage{minted}
\usepackage{fontspec}
\setmonofont{JetBrains Mono}
\begin{document}
texttt:\\
\texttt{-> --> ->> <- <-- <<-\\
=> ==> >=> =>>\\
<= <== <<= <=<\\
<-> <=>}

verbatim:
\begin{verbatim}
-> --> ->> <- <-- <<-
=> ==> >=> =>>
<= <== <<= <=<
<-> <=>
\end{verbatim}


minted (Haskell):
\begin{minted}{haskell}
-> --> ->> <- <-- <<-
=> ==> >=> =>>
<= <== <<= <=<
<-> <=>
\end{minted}


minted (Bash):
\begin{minted}{bash}
-> --> ->> <- <-- <<-
=> ==> >=> =>>
<= <== <<= <=<
<-> <=>
\end{minted}
\end{document}

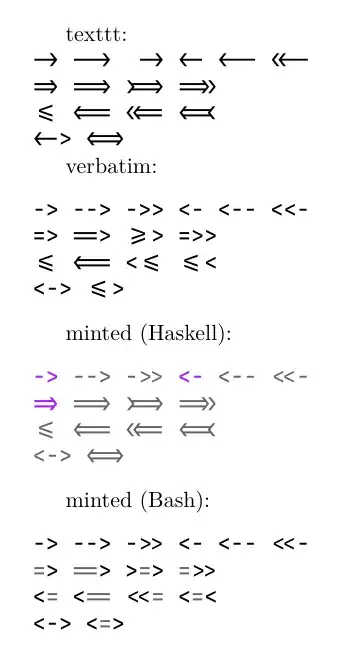

When run, only the texttt correctly renders -> and <- (though ->> is never rendered correctly in any of the environments):

a rendering of the given MWE

The following changes do not affect the output:

  • Replacing the font line with \setmonofont{JetBrains Mono}[Contextuals=Alternate].
  • Adding the package microtype together with line \DisableLigatures[<,>]{encoding=T1,family=tt*}.

Replacing the font line with \setmonofont{JetBrains Mono}[Ligatures=TeX] results in instances of >> being replaced with a guillement "»".

I want the Haskell minted environment to render -> and <- as a ligature, and am not sure what steps to attempt next.

Phrohlych
  • 205
  • I won't be able to help you, I just find it really strange that <<- works and not ->>. Have you tried other coding fonts with ligatures like Fire Code or the ones listed on the Fira Code github page? If I am stating the obvious, sorry about it. – thymaro Apr 18 '23 at 18:31
  • I'm suggesting more problems to go after than solutions `:D – thymaro Apr 18 '23 at 18:33
  • Here's another resource that might help you in your endeavour https://github.com/tonsky/FiraCode/wiki/LaTeX-instructions – thymaro Apr 18 '23 at 18:41
  • Not an answer, but adding \makeatletter\def\verbatim@nolig@list{}\makeatother to your preamble makes the ligatures work in verbatim (but not minted). Also, the ligature for ->> renders fine for me with xelatex but not lualatex – mbert May 11 '23 at 01:35
  • Add [Renderer=Harfbuzz] to fix all the ligatures in \texttt (and verbatim with my comment above). See also my question about this – mbert May 11 '23 at 22:58
  • The exact same ligatures do/don't work with Fira Code so it's probably an issue with minted (or fancyvrb or fvextra), not the font – mbert May 12 '23 at 16:51

1 Answers1

2

The characters for which ligatures are disabled in verbatim environments is controlled by \verbatim@nolig@list; its default definition is \do\‘\do\<\do\>\do\,\do\’\do\-. To allow all ligatures, just clear its definition.

Still, some ligatures do not appear correctly if compiling with lualatex in default Node rendering mode. This is fixed by setting [Renderer=Harfbuzz] or compiling with xelatex (see this question and this issue on luaotfload's Github page).

\documentclass{article}
\usepackage{fvextra}
\usepackage{fontspec}
\setmonofont{JetBrains Mono}[Renderer=Harfbuzz]

\makeatletter
\def\verbatim@nolig@list{}
\makeatother


\begin{document}
texttt:\
\texttt{-> --> ->> <- <-- <<-\
=> ==> >=> =>>\
<= <== <<= <=<\
<-> <=>}


verbatim:
\begin{verbatim}
-> --> ->> <- <-- <<-
=> ==> >=> =>>
<= <== <<= <=<
<-> <=>
\end{verbatim}


Verbatim (fancyvrb/fvextra):
\begin{Verbatim}
-> --> ->> <- <-- <<-
=> ==> >=> =>>
<= <== <<= <=<
<-> <=>
\end{Verbatim}
\end{document}

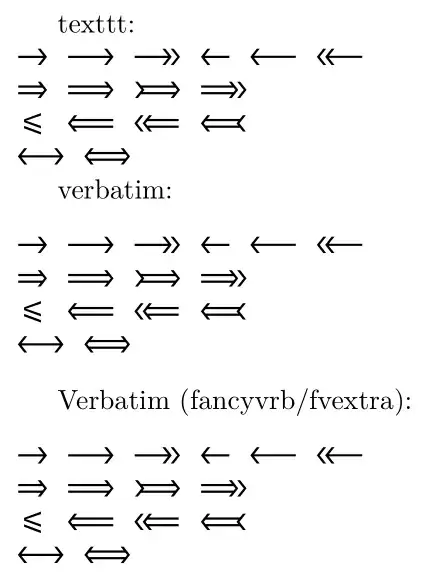

enter image description here

Now even though minted uses fancyvrb to typeset verbatim material, it tokenizes the content in a way that prevents ligatures. From the package author Geoffrey Poore in a Github issue I made:

This is due to how Pygments does tokenization. For Bash, |=> becomes \PYG{p}{|}\PYG{o}{=}\PYGZgt{}. For Python, it becomes \PYG{o}{|=\PYGZgt{}}. (\PYGZgt{} is the Pygments translation of >.) Because the characters are split between different tokens for Bash (\PYG{<token_type>}{<token_text>}), ligatures won't work.

mbert
  • 4,171
