ref references the correct number, but nameref uses the wrong name

Question

This is my first question, so I'm sorry if there are detiails missing or my question could be written more clearly. Any help is greatly appreciated.

I want to use hyperref to reference the name of one of my Appendices such that I can write:

...detailed information is found in \nameref{App:B}

And have the result be

...detailed information is found in Appendix B - Matlab Code

The thing is, my appendices are unnumbered so I have used \refstepcounter to increment the chapter counter manually. Now, when I use \ref to reference the appendix the outputted number is correct but when using \nameref, the compiled name is the last numbered chapter.

I have narrowed down the issue to have something to do with \refstepcounter redefining \ @currentlabel but even so I really struggle with understanding the exact details of what \refstepcounter has done to my \label and how to fix it.

My current code says something in the lines of

\documentclass[a4paper,11pt]{scrreprt}
\begin{document}
\usepackage{hyperref}
\chapter{Some numbered chapter}
\chapter*{Appendix B - Matlab Code}
\refstepcounter{chapter}\label{App:B}
\addcontentsline{toc}{chapter}{Appendix B - Matlab Code}

I would Like them to show up as "Appendix A" and not e.g. "6 Appendix A". Maybe this is not the best way to do it. — Tobias, Apr 25 '23 at 20:24
don't show "something in the lines". Show a full, exact example that demonstrates your issue. — Ulrike Fischer, Apr 25 '23 at 20:25
See 'Appendix' before the appendix name and Display appendix section title like "Appendix A My Code Listing"?; the latter uses KOMA-script. — Werner, Apr 25 '23 at 20:29
@UlrikeFischer It's pretty convoluted since it's across multiple documents, but I believe what I wrote includes all the important parts. Perhaps my wording was bad. I'll update it. — Tobias, Apr 25 '23 at 20:30
Even if it does include the important parts: I have never the time nor the will to try to create a suitable test document from your snippets. But generally it is a bad idea to call \refstepcounter and \addcontentsline manually. This indicates that your setup is not correct. — Ulrike Fischer, Apr 25 '23 at 20:39
@UlrikeFischer I understand that. What would you do if not writing up the important parts then? I'm only asking because I haven't done this before and would like to know for next time. What's the easiest way when the preamble and function etc. is spread out across multiple documents? — Tobias, Apr 25 '23 at 21:22

score 0 · Accepted Answer · answered Apr 26 '23 at 09:26

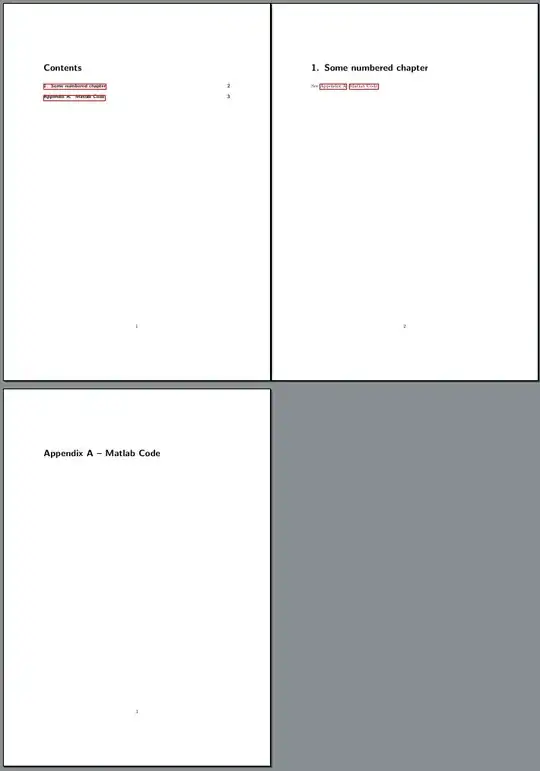

Your main problem is, that you try to fake numbered chapters with commands for not numbered chapters. Instead you should use \chapter{…} and configure the output to what you want. For example:

\documentclass{scrreprt}
\usepackage{hyperref}
\newcommand{\tocchapapp}{}
\AddToHook{scrreprt/appendix}{%
  % Code from https://sf.net/p/koma-script/wiki-en/HowTo_TocAppendixPrefix/
  \renewcommand{\tocchapapp}{\chapapp\ }%
  \addtocontents{\csname ext@toc\endcsname}{%
    \string\DeclareTOCStyleEntry[numwidth+=5em]{chapter}{chapter}%
  }%
  % Additionally add the prefix to the format of the headings:
  \renewcommand{\chapterformat}{\appendixname\ \thechapter\ --\ }%
  % and the format of the running heads:
  \renewcommand{\chaptermarkformat}{\appendixname\ \thechapter\ --\ }%
}
% Again Code from https://sf.net/p/koma-script/wiki-en/HowTo_TocAppendixPrefix/
\renewcommand*{\addchaptertocentry}[2]{%
  \IfArgIsEmpty{#1}{% keine Nummer:
    \addtocentrydefault{chapter}{#1}{#2}% wie bisher
  }{% mit Nummer:
    \addtocentrydefault{chapter}{\tocchapapp#1}{#2}%
  }%
}
\begin{document}
\tableofcontents
\chapter{Some numbered chapter}
See \autoref{App:B}: \nameref{App:B}
\appendix
\chapter{Matlab Code}
\label{App:B}
\end{document}
