3

I want to redefine the aufgabe environment and combine it with the declared tcolorbox. In the end Aufgabe 1 subtitle should have the same textcolor/backgroundcolor like Exercise 0.1.

I also want to use the same command \begin{aufgabe}...\end{aufgabe} with the redefined environment.

\documentclass{article}

\usepackage[skins,hooks,xparse,breakable]{tcolorbox} \usepackage{xcolor} \usepackage{chngcntr} \usepackage{blindtext} \usepackage{tikz}

\newcounter{examplecounter} \counterwithin{examplecounter}{section}

\usetikzlibrary{calc}

\definecolor{headercolourgreen}{rgb}{0,0.7019,0.7019}

\usepackage[ typ=ab, fach=, lerngruppe=, farbig % nummer=2A, % datumAnzeigen, % namensfeldAnzeigen, ]{schule}

\DeclareTColorBox{new}{O{}}{ enhanced, breakable, arc=0pt, boxrule=0pt, colback=white, before skip={2em}, % increase spacing before the env overlay unbroken and first={ % draw box on the left \node[fill=headercolourgreen!5, font=\color{headercolourgreen}\sffamily\bfseries\large, anchor=south west, xshift=2mm ] (titlebox) at (frame.north west) {Exercise \refstepcounter{examplecounter}\theexamplecounter};

    \draw[draw=headercolourgreen, line width=2pt]
    (titlebox.north west-|frame.north west)--+(0,-1.5);

},

%
} \author{} \title{} \date{\today}

\begin{document} \begin{aufgabe}[subtitle=subtitle] \blindtext \end{aufgabe} \null \begin{aufgabe}[subtitle=subtitle] \blindtext \end{aufgabe}

\null
\begin{new}
    \blindtext
\end{new}



\null
\begin{new}
    \blindtext
\end{new}



\end{document}

1 Answers1

3

If I understood you comment, here is one way to acieve the desired results: First, setup pgfkeys to extract the value of the subtitle= option:

\pgfkeys{MyAufgabe/.cd,
    subtitle/.store in=\MyAufgabeSubtitle,
}

This will store the value of the subtitle= in \MyAufgabeSubtitle.

Next redefine the aufgabe enviroment to extract the subtitle and pass \MyAufgabeSubtitle to tcolobbox. I defined this as aufgabeAux enviroment so it is simpler to see the difference between this and the new enviroment:

\renewenvironment{aufgabe}[1][]{%
    \pgfkeys{MyAufgabe/.cd, subtitle={}, #1}%
    \begin{aufgabeAux}[\MyAufgabeSubtitle]%
}{%
    \end{aufgabeAux}%
}%

References:

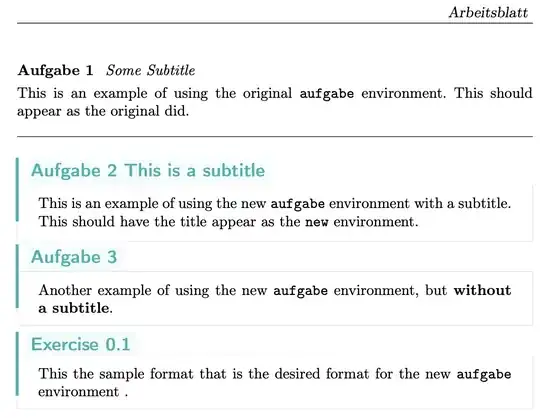

Result:

enter image description here

Code:

\documentclass{article}

\usepackage[skins,hooks,xparse,breakable]{tcolorbox} \usepackage{xcolor} \usepackage{chngcntr} \usepackage{blindtext} \usepackage{tikz}

\newcounter{examplecounter} \counterwithin{examplecounter}{section}

\usetikzlibrary{calc} \definecolor{headercolourgreen}{rgb}{0,0.7019,0.7019}

\usepackage[ typ=ab, fach=, lerngruppe=, farbig % nummer=2A, % datumAnzeigen, % namensfeldAnzeigen, ]{schule}

\tcbset{MyStyle/.style={ enhanced, breakable, arc=0pt, boxrule=0pt, colback=white, before skip={2em}, % increase spacing before the env }}

\DeclareTColorBox{new}{O{}}{ MyStyle, overlay unbroken and first={ % draw box on the left \node[fill=headercolourgreen!5, font=\color{headercolourgreen}\sffamily\bfseries\large, anchor=south west, xshift=2mm ] (titlebox) at (frame.north west) {Exercise \refstepcounter{examplecounter}\theexamplecounter}; \draw[draw=headercolourgreen, line width=2pt] (titlebox.north west-|frame.north west)--+(0,-1.5); }, }

\DeclareTColorBox{aufgabeAux}{O{}}{ MyStyle, overlay unbroken and first={ % draw box on the left \node[fill=headercolourgreen!5, font=\color{headercolourgreen}\sffamily\bfseries\large, anchor=south west, xshift=2mm ] (titlebox) at (frame.north west) {Aufgabe \refstepcounter{aufgabe}\theaufgabe\ #1}; \draw[draw=headercolourgreen, line width=2pt] (titlebox.north west-|frame.north west)--+(0,-1.5); }, }

%% Save the original version in case it is still needed \let\oldaufgabe\aufgabe \let\endoldaufgabe\endaufgabe

\pgfkeys{MyAufgabe/.cd, subtitle/.store in=\MyAufgabeSubtitle, } \renewenvironment{aufgabe}[1][]{% \pgfkeys{MyAufgabe/.cd, subtitle={}, #1}% \begin{aufgabeAux}[\MyAufgabeSubtitle]% }{% \end{aufgabeAux}% }%

\author{} \title{} \date{\today} \begin{document} \begin{oldaufgabe}[subtitle=Some Subtitle] This is an example of using the original \verb|aufgabe| environment. This should appear as the original did. \end{oldaufgabe} \bigskip\hrule\bigskip

\begin{aufgabe}[subtitle=This is a subtitle]
    This is an example of using the new \verb|aufgabe| environment with a subtitle.
    This should have the title appear as the \verb|new| environment.
\end{aufgabe}

\begin{aufgabe}
    Another example of using the new \verb|aufgabe| environment,
    but \textbf{without a subtitle}.
\end{aufgabe}

\begin{new}[subtitle This is a subtitle]
    This the sample format that is the desired format for the new
    \verb|aufgabe| environment .
\end{new}

\end{document}

Peter Grill
  • 223,288
  • Maybe I expressed myself in a misleading way. To be precise, I wanted the end result to be rather the opposite. If i compile your proposal, the design and the redefinition of the commands are good. But if i use \begin{aufgabe}[subtitle=This is a subtitle the headline should be Aufgabe 1 This is a subtitle but in green and with the line on the left. – user2809537 May 17 '23 at 16:08
  • @user2809537: Have updated answer. Let me know if this is what you were describing. If not, please provide a mocked up image of the desired result. – Peter Grill May 18 '23 at 07:29
  • Perfect. Thanks! – user2809537 May 19 '23 at 10:44
  • Your modification works fine, but i have got a problem when i add some option to the environment. It doesn't count the points. \begin{aufgabe}[subtitle={subtitle text}, points=2+3, bonus-points=8] Compiled with the original code the output is like Aufgabe 1 subtitle text (5(+8) Punkte) – user2809537 May 20 '23 at 17:37
  • @user2809537: I am not familiar with all the options of the aufgabe environment so won't be able to help you with those. – Peter Grill May 20 '23 at 21:02
