Even if I wrote \begin{figure}[!ht], my image goes to the wrong place

Asked May 22 '23 at 14:03

Active May 22 '23 at 14:19

Viewed 56 times

Here is my code:

    \subsubsection{Ionisation}
       \begin{figure}[!ht]
            \centering
            \includegraphics{SchémaIonisation.jpg}
            \caption{}
            \label{}
        \end{figure}
\subsubsection{Ionosphère}
    \begin{figure}[!ht]
        \centering
        \includegraphics{SchémaIonosphère.jpg}
        \caption{}
        \label{}
    \end{figure}

\subsubsection{En pratique}

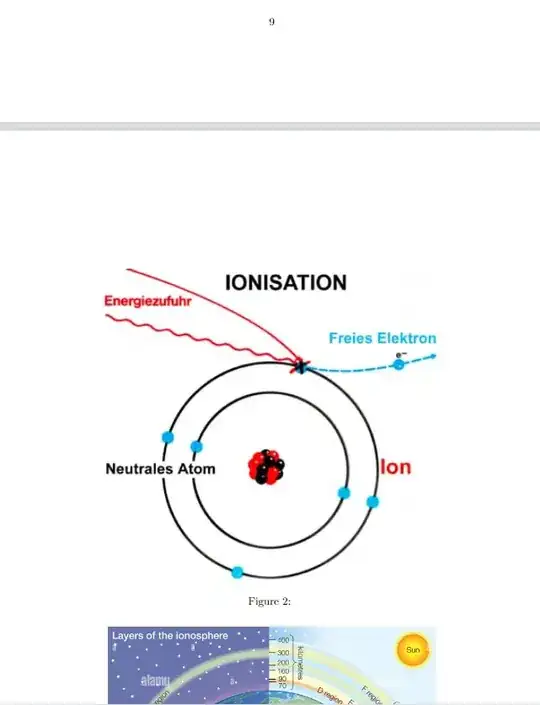

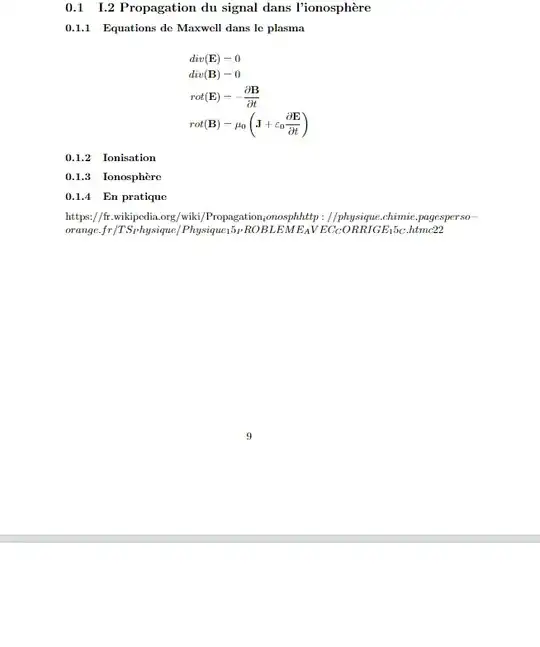

My images are supposed to go where I put them in my code. However, they go in \subsubsection{En pratique}. I don't understand why since I wrote [!ht]. I am working on Overleaf.

edited May 22 '23 at 14:19

JamesT

3,169

asked May 22 '23 at 14:03

user297545

1

see https://tex.stackexchange.com/a/39020/2388 to understand how floats are placed. – Ulrike Fischer May 22 '23 at 14:16
1

It appears that the Ionisation figure is too large to fit in the remaining space on the page. Therefore it will be held for the first available space on the next page. – barbara beeton May 22 '23 at 14:21
2

Especially the answer that begins "do not use a floating environment if you do not want it float." – Teepeemm May 22 '23 at 14:28
Thanks a lot, the package "float" and the add of the parameter [H] worked ! – user297545 May 22 '23 at 15:04
