I am representing sets using ellipses and would like to draw the difference between two sets: B - A (blue area in the figure below).

Please consider the following code:

\documentclass{article}
\usepackage{tikz}
\usetikzlibrary{shapes, positioning}

\begin{document}


\begin{tikzpicture}


\def\A{(0,0) ellipse (2cm and 3cm)}
\def\B{(2,0) ellipse (3cm and 2cm)}


\draw[red] \A;
\draw[green] \B;


\begin{scope}
 \clip \B;
 \fill[blue,even odd rule] \B \A;
\end{scope}


\end{tikzpicture}
\end{document}

that produces:

set difference

However, I define the ellipses using nodes, because I need to assign names to them. Basically, my ellipses are defined as:

\node [draw,transform shape, fill=blue!5,draw=blue,line width=1pt,ellipse,minimum width=2cm,minimum height=1.5cm] (TP) at (1.2,2) {};

Basically, I use \node instead of the simpler ellipse path because I want to have that TP name.

If I try and plot the set difference using ellipses defined with \node instead of (0,0) ellipse (2cm and 3cm), the compilation fails.

I have two questions:

  • Q1) Can I give a name to ellipses defined as in the code above (i.e., without using node)?

  • Q2) How can I clip using a \node and get the same result as in the picture above?

There is a question similar to this, but I am not able to comprehend the answers (too complex): Clipping a path using a node.

This is the actual tikz picture I am using:

\documentclass{article}
\usepackage{tikz}
\usetikzlibrary{shapes, positioning}

\begin{document}
\begin{tikzpicture}[scale=3]
% frame
\node [draw, transform shape, rectangle, minimum width=5cm, minimum height=3cm, anchor=south west] (F) at (0,0) {};
\node [below left] at (F.north east) {$U$};


\node [draw,transform shape, fill=blue!5,draw=blue,line width=1pt,ellipse,minimum width=2cm,minimum height=1.5cm] (TP) at (1.2,2) {};
\node [right] at (TP.west) {$A$};


\node [draw,transform shape,fill=red!5,draw=red,line width=1pt,ellipse,minimum width=2cm,minimum height=1.5cm] (TN) at (3.8,1) {};
\node [left] at (TN.east) {$B$};


\node [draw,transform shape,fill=green!5,draw=green, fill opacity=0.5, line width=1pt,ellipse,minimum width=2.5cm,minimum height=2cm] (COV) at (2.3,1.2) {};
\node [below right] at (COV.west) {$C$};


\end{tikzpicture}
\end{document}

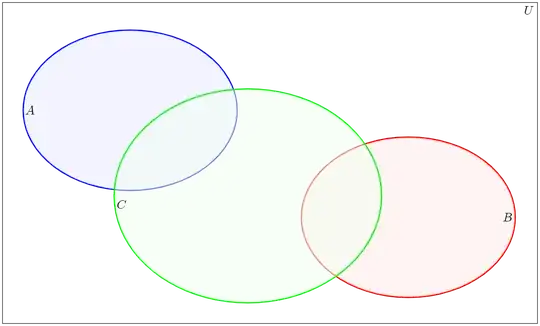

enter image description here

Starting from that picture, I need to draw:

  • A
  • C - A

I defined the ellipses using \node because I needed their names for anchor points.
