How can I use titlesec to put a tcolorbox around a section title?

Question

I'd like to redefine \section to produce something like the following: (requiring package tcolorbox)

\begin{tcolorbox}
  1. \hspace*{\fill} Title of the Section \hspace*{\fill}
\end{tcolorbox}

I assumed I could use the titlesec package to do so. I tried doing the following:

\titleformat{\section}[display]% It's not clear to me why, but any other format except [display] breaks!
    {}{}{0em}%
    {\begin{tcolorbox}\thesection.\hspace*{\fill}}% 'before' code.
    [\hspace*{\fill}\end{tcolorbox}]% 'after' code.

The compiler accepts this, but not in the way that I expected it to. \section{Title of the Section} produces the following:

I know that titlesec does provide a boxed title option, but it is not in the format that I would like to use. In particular I would prefer for the label to also be in the box, and I would like the control over the box that tcolorbox provides me.

I thought perhaps I could define the contents of this section title box in the titlesec regime, then perhaps define \edef\oldsection\section and redefine \section as I like, but it's unclear to me how I might pass along the arguments that \section takes.

TL;DR I'd like to put \section titles inside a \tcolorbox as in the first example, but it doesn't work.

Welcome to TeX.sx. Instead of just posting code fragments, edit your question to include a small compilable example that people can play with. — Alan Munn, Jun 07 '23 at 18:32

Jasper Habicht · Accepted Answer · 2023-06-07T20:02:00.277

You may want to use load the tcolorbox packge with the explicit option, which allows you to use #1 as placeholder for the section title in the defintion of the \section command. Also, I think the block format is better suited here:

\documentclass{article}
\usepackage{tcolorbox}
\usepackage[explicit]{titlesec}
\titleformat{\section}[block]
    {}{}{0em}
    {\begin{tcolorbox}
        \thesection. \hspace{\fill} #1 \hspace{\fill}
    \end{tcolorbox}}
\begin{document}
\section{Title of the Section}
\end{document}

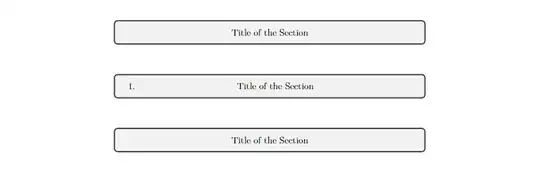

To make this work even for starred \section commands:

\documentclass{article}
\usepackage{tcolorbox}
\usepackage[explicit]{titlesec}
\titleformat{\section}[block]
    {}{}{0em}
    {\begin{tcolorbox}
        \thesection. \hspace{\fill} #1 \hspace{\fill}
    \end{tcolorbox}}
\titleformat{name=\section,numberless}[block]
    {}{}{0em}
    {\begin{tcolorbox}
        \hspace{\fill} #1 \hspace{\fill}
    \end{tcolorbox}}
\begin{document}
\section*{Title of the Section}
\section{Title of the Section}
\section*{Title of the Section}
\end{document}

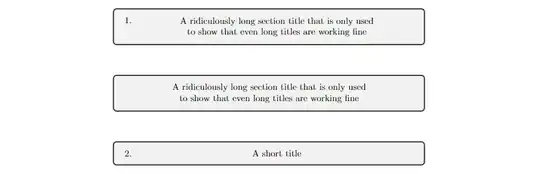

As has been pointed out in the comments, this solution does not work nicely with longer titles. Since you are using the tcolorbox package already, you could enhance your box a bit to make it work for longer titles as well:

\documentclass{article}
\usepackage{tcolorbox}
\tcbuselibrary{skins}
\usepackage[explicit]{titlesec}
\NewTColorBox{tcsectionbox}{ o }{%
  enhanced,
  halign=center,
  left=\IfValueTF{#1}{10mm}{4mm},
  right=4mm,
  top=3mm,
  bottom=3mm,
  boxsep=0mm,
  overlay={
    \IfValueT{#1}{
        \node[anchor=north west, inner xsep=4mm, inner ysep=3mm]
        at (interior.north west) {#1};
    }
  }
}
\titleformat{\section}[block]
    {}{}{0em}
    {\begin{tcsectionbox}[\thesection.]
        #1
    \end{tcsectionbox}}
\titleformat{name=\section,numberless}[block]
    {}{}{0em}
    {\begin{tcsectionbox}
        #1
    \end{tcsectionbox}}
\begin{document}
\section{A ridiculously long section title that is only used to show that even long titles are working fine}
\section*{A ridiculously long section title that is only used to show that even long titles are working fine}
\section{A short title}
\end{document}

Many thanks. May I add, how can I adjust this to account for the label-free \section*{...} command? — Anton, Jun 07 '23 at 18:36
@Anton See my edit. For extensions of this, maybe have a look at the manual — Jasper Habicht, Jun 07 '23 at 18:42
+1 but for long titles the title doesn't wrap in the centre. I would instead wrap the #1 as \begin{minipage}{.8\linewidth}\centering #1\end{minipage}. — Alan Munn, Jun 07 '23 at 19:20
@AlanMunn Yes, you are right. I was pretty much focused on solving the OP's issue. — Jasper Habicht, Jun 07 '23 at 19:23
That's a lot of code for a minipage :) (But fair enough to use proper tcolorbox methods.) — Alan Munn, Jun 07 '23 at 20:05
Using the nostruts option with titlesec removes some unnecessary spacing that titlesec adds here, as I have learned. See this question. — Anton, Jun 08 '23 at 14:24
