\documentclass[sn-mathphys,Numbered]{sn-jnl}
\usepackage{multirow}

begin{table*}[b]
\centering
\caption{Summary of Electrical and Mechanical Fault Detection Method}
\label{Table:1}
\begin{tabular}{ |p{1cm}|p{1.75cm}|p{4.5cm}|p{4cm}|  }
\hline
\multicolumn{1}{|c|}{Fault Part} & \multicolumn{1}{|c|}{Fault Type} & \multicolumn{1}{|c|}{Fault Detection Method} & \multicolumn{1}{|c|}{Signal Analysis Technique}                                             \\
\hline
\parbox[t]{1mm}{\multirow{18}{*}{\rotatebox[origin=c]{90}{Induction Motor
 (Electrical Based Fault)}}}   & \multicolumn{1}{c|}{\multirow{4}{*}{Broken Rotor Bar}} & Model Based Approach - DAE-SVM & Fast Fourier Transform
\\ \cline{3-4}
                             &                                               &
                             MCSA & Wavelet Transform \newline{Stockwell Transform} \newline{Hilbert Transform} \newline{Short time Fourier Transform}  \\ \cline{3-4}
                             &                                               &
                             Improved Bare-Bones Particle Swarm Optimization  & Multiple Signal Classification \& Discrete Fourier Transform \\ \cline{3-4}
                              &                                               & Computing The Homogeneity and Kurtosis & Discrete Fourier Transform  \\ \cline{2-4}

                             & \multirow{4}{*}{Bearing}                       &
                             MCSA & Wavelet Transform \newline{Stock well Transform} \newline {Hilbert Huang Transform} \\ \cline{3-4}
                             &                                               & Vibration Measurements & Fast Fourier Transform \\  \cline{3-4}
                             &                                               &
                             High Frequency Demodulation & Local Low Rank Matrix Approximation \newline{Fast Fourier Transform} \\ \cline{2-4}


                              & \multirow{4}{*}{Stator Winding}                    &Model Based Approach-Tacholess Order Tracking
                              & Fast Fourier Transform \\ \cline{3-4}
                             &                                               &
                             Finite Element Analysis  & Stockwell Transform \\  \cline{3-4}
                             &                                               & Support Vector Machine (SVM) &  Fast Fourier Transform \\ \cline{1-4}

\parbox[t]{1mm}{\multirow{18}{*}{\rotatebox[origin=c]{90}{ESP (Mechanical Based Fault)}}}   & \multicolumn{1}{c|}{\multirow{4}{*}{Breakage (Shaft Failure)}} & Model Based Approach - DAE-SVM & Fourier Transform \\ \cline{3-4}
                             &                                               &
                             MCSA & Wavelet Transform \newline{Stock well Transform} \newline {Hilbert Huang Transform}  \\ \cline{3-4}
                             &                                               &
                             Torsional Dynamic Stress Analysis  &  N/A \\ \cline{3-4}
                              &                                               & Support Vector Machine & Fast Fourier Transform\\ \cline{2-4}

                             & \multirow{3}{*}{Impeller}                       &
                             MCSA & Wavelet Transform \newline{Stock well Transform \&} \newline {Hilbert Huang Transform\&}\newline {Modulation Signal Bispectrum} \\ \cline{3-4}
                             &                                               & Adaptive Chirp Mode Decomposition (ADMD)  & Instantaneous Frequency analysis \newline {Zero-Crossing Time (ZCT) Technique}
  \\  \cline{3-4}
                             &                                               &
                             High Frequency Demodulation & Fast Fourier Transform  \\ \cline{2-4}


                              & \multirow{4}{*}{Leakage}
                              &Downhole Sensor& N/A \\ \cline{3-4}
                             &                                               &
                             Principal Component Analysis & Artificial Neural Network  \\  \cline{3-4}
                             &                                               & Mahalonobis Distance& N/A \\ \cline{3-4}

                             \hline


\end{tabular}

\end{table*}

\end{document}

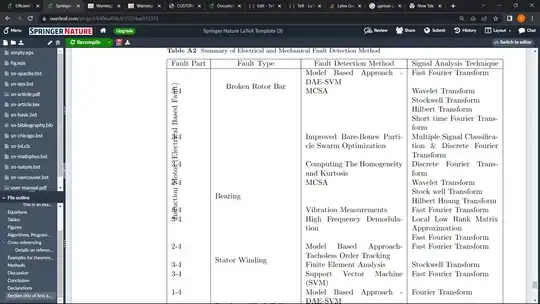

this is what i got

Juan Castaño
  • 28,426
  • 2
    Please add a short, but compilable test file which allows us to reproduce the problem. It should include a class, the necessary packages and a document environment. – samcarter_is_at_topanswers.xyz Jun 14 '23 at 09:16
  • 1
    what is your question? \clinewill not give an error if used correctly, but if you do not show how you used it or what error you got, we can not help – David Carlisle Jun 14 '23 at 09:57
  • im sorry, im just edited the question. really hope you can help me – TUAN SHARIFAH NUR FATIEHA TUAN Jun 14 '23 at 12:24
  • @TUANSHARIFAHNURFATIEHATUAN Your code does not compile. There is no \begin{document} – samcarter_is_at_topanswers.xyz Jun 14 '23 at 12:33
  • 1
    The sn-jnl class sets \let\cline\cmidrule and does a lot of other questionable things. See: https://tex.stackexchange.com/q/678195/47927 – Jasper Habicht Jun 14 '23 at 12:35
  • Welcome to TeX.SX! The sn-jnl class is not included in a standard TeX distribution. Therefore please add a link to it and please also make sure that the code example you provide is compilable (except for the error regarding \cline). It seems that the sn-jnl requires you to load a selection of packages of which one is the booktabs package. As I discussed in my answer linked in my comment above, I assume that this document class requires you to adhere to the styling suggestions and macros provided by the booktabs package (which does not allow for vertical rules). – Jasper Habicht Jun 14 '23 at 13:24

0 Answers0
