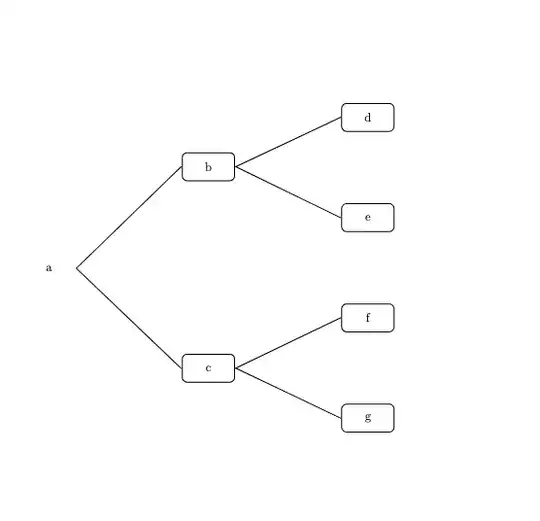

So, I essentially want the e and f to be one node i.e the lines from b and c joining togetherenter image description here

Here is what I have so far:

\documentclass{report}
\usepackage{forest} %Required for trees
\usepackage{tikz}

\begin{document}

\forestset{

L2/.style={draw=black,}, L1/.style={,edge={,line width=0.8pt}}, } \tikzset{% L1/.style={draw=black}, L2/.style={line width=0.8pt, line cap=round}, }% \begin{forest} for tree={ grow'=0, parent anchor=children, child anchor=parent, edge+=L2, outer sep=+1pt, rounded corners, minimum width=15mm, minimum height=8mm, l sep' =30mm, s sep' =20mm } [a, L1 [b, L2 [d, L2] [e, L2] ] [c, L2 [f, L2] [g, L2] ] ] \end{forest} \end{document}

googoo
  • 33
  • 2
    What you're asking for is no longer a tree, which is why forest can't do it directly without some manual intervention. See also https://tex.stackexchange.com/search?q=multidominance – Alan Munn Jul 06 '23 at 17:16
