I got something like a simple flow chart that is shown below in the screenshot. But, I would like to vertically shift the arrows so that they are in the middle, instead of be on the top of the row.

enter image description here

The code I use is copied below. Can anyone let me know what should be changed in order to shift the arrows down to the middle? Thank you!

\documentclass[table, 11pt, aspectratio=169]{beamer}

\usepackage{tikz} \usetikzlibrary{positioning} \usetikzlibrary{calc} \usetikzlibrary{arrows} \usetikzlibrary{matrix,shapes,arrows}

\tikzset{ arrow/.style={draw,thick,->,>=stealth}, }

\usepackage[most]{tcolorbox} \tcbset{ boxsep=-1pt, left=-2pt, right=-2pt, boxrule=0.5pt, colframe=black, colback=white, sharp corners }

\begin{document}

\begin{frame}{} \begin{minipage}{\textwidth} \begin{tikzpicture}[ node distance=25pt, every edge/.style={arrow} ] \node[text width=0.25\textwidth] (A) { \begin{tcolorbox}[title={},coltitle=black,attach title to upper={},enhanced jigsaw] \centering Some text \end{tcolorbox} }; \node[text width=0.25\textwidth] (B) [right=of A.east] { \begin{tcolorbox}[title=\parbox{\textwidth}{},coltitle=black,attach title to upper={},enhanced jigsaw] \centering Some text \end{tcolorbox} }; \node[text width=0.25\textwidth] (C) [right=of B.east] { \begin{tcolorbox}[title=\parbox{\textwidth}{},coltitle=black,attach title to upper={},enhanced jigsaw] \centering Some text \end{tcolorbox} };

\draw[arrow] (A) -- (B); \draw[arrow] (B) -- (C); \end{tikzpicture} \end{minipage}

\end{frame}

\end{document}

Norman
  • 241
  • 2
    I have the feeling that nesting tcolorboxes inside \nodes is not a good idea. Could you explain why this is needed? Why don't you use simple \nodes? If you really need to use tcolorboxes, it is probably better to place them first and then use an overlay to draw the arrows. – Jasper Habicht Jul 08 '23 at 18:20
  • 1
    If you nest a tcolorbox inside a \node, you are essentially nesting two tikzpictures which should be avoided, because this is not supported and can lead to strange results. – Jasper Habicht Jul 08 '23 at 18:32

1 Answers1

4

You may consider the following simple MWE:

\documentclass[11pt, aspectratio=169]{beamer}

\usepackage{tikz} \usetikzlibrary{positioning} \usetikzlibrary{arrows.meta, chains, positioning}

\begin{document}

\begin{frame}{} \begin{center} \begin{tikzpicture}[ node distance = 25pt, start chain = going right, arr/.style = {-Straight Barb, thick, shorten <=2pt, shorten >=2pt}, N/.style = {draw, thick, minimum width=0.25*\linewidth, on chain, join=by arr} ] \node (A) [N] {Some text}; \node (B) [N] {Some text}; \node (B) [N] {Some text}; \end{tikzpicture} \end{center} \end{frame}

\end{document}

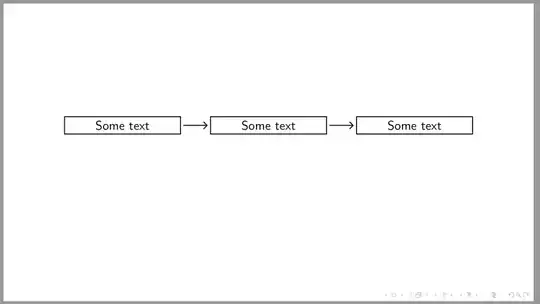

enter image description here

  • As you can see, in MWE are employed chains library for positioning oh nodes, for nodes are defined common style N, arrows between them are drawn by macro join.
  • I don't see any reason to use tcolorbox (at least this is not evident from your question).

Addendum 1:
if you like to have nodes with title, you can do this by use of shapes.multipart library. In the following MWE is shown "emulation" of the tcolorbox by using it:

\documentclass[11pt, aspectratio=169]{beamer}

\usepackage{tikz} \usetikzlibrary{arrows.meta, chains, positioning, shadows, shapes.multipart} % for emulation tcolorbox with title % unfortunately it is still not part of shapes.multipart library :-( \pgfdeclarelayer{foreground} \pgfdeclarelayer{background} \pgfsetlayers{background,main,foreground} \makeatletter \def\tikz@extra@preaction#1{% hackery which enable preactions % in multi-part node on a different layer % suggested by Mark Wibrow on c.t.t. (2010) {% \pgfsys@beginscope% \setbox\tikz@figbox=\box\voidb@x% \begingroup\tikzset{#1}\expandafter\endgroup% \expandafter\def\expandafter\tikz@preaction@layer \expandafter{\tikz@preaction@layer}% \ifx\tikz@preaction@layer\pgfutil@empty% \path[#1];% do extra path \else% \begin{pgfonlayer}{\tikz@preaction@layer}% \path[#1];% \end{pgfonlayer} \fi% \pgfsyssoftpath@setcurrentpath\tikz@actions@path% restore \tikz@restorepathsize% \pgfsys@endscope% }% } \let\tikz@preaction@layer=\pgfutil@empty \tikzset{preaction layer/.store in=\tikz@preaction@layer} \makeatother

\begin{document}

\begin{frame}[fragile] % <--- needed for style definition with # \frametitle{test with of the TikZ library \texttt{shapes.multipart} \begin{center} \begin{tikzpicture}[ node distance = 25pt, start chain = going right, arr/.style = {-Straight Barb, thick, shorten <=4pt, shorten >=2pt}, mpnv/.style args = {#1/#2}{% multi part node horisontal % <--- rectangle split, rectangle split parts=2, rectangle split part fill={blue!70!black, white}, preaction layer=background, % <-- prepare layer for drop shadow drop shadow, text width = 0.25*\linewidth, align=center, draw, thick, rounded corners, node contents = {\nodepart[font=\bfseries, text=yellow]{one} #1 % for title \nodepart[align=left]{two} #2}, % for main text on chain, join=by arr } ] \node (A) [mpnv=title/some longer text in wo lines]; \node (B) [mpnv=title/some short text]; \node (B) [mpnv=title/some text]; \end{tikzpicture} \end{center} \end{frame}

\end{document}

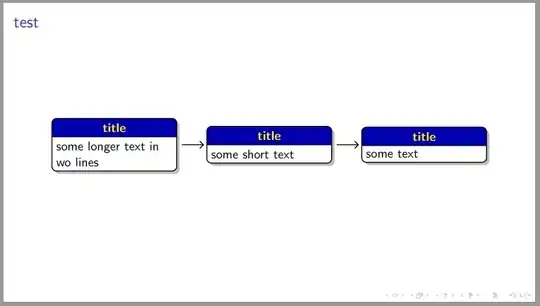

enter image description here

Addendum 2:
If you more prefer to use of the tcolorboxses, than try solution proposed in answer add-arrow-between-two-tcolorboxes, to which your question is actually duplicate. Adopting it to your case, the MWE can be:

\documentclass[11pt, aspectratio=169]{beamer}
\usepackage[many]{tcolorbox}
\usetikzlibrary{arrows.meta,
                chains,
                positioning}
\tcbset{%
    boxrule=2pt,
    colback=white, % background color
    colframe=cyan, % frame colour
        halign=left,
        valign=center,
    sharp corners=all,
    center title,
    lower separated=false,
    fonttitle=\sffamily\bfseries\large,
    adjusted title=center,
    width=0.25\linewidth % added
    }

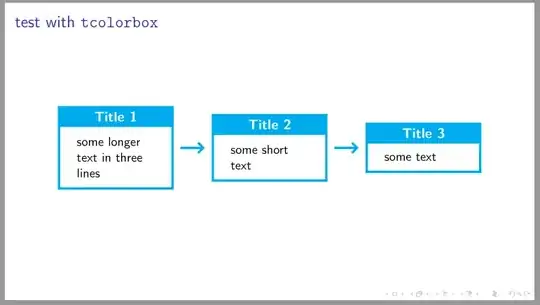

\begin{document}

\begin{frame} \frametitle{test with \texttt{tcolorbox}} \begin{center} \begin{tikzpicture}[ node distance = 25pt, start chain = going right, arr/.style = {draw=cyan, -{Straight Barb[scale=0.8]}, line width=2pt, shorten <=2pt, shorten >=2pt}, N/.style = {on chain, join=by arr} ] \node(A) [N] { \begin{tcolorbox}[title= Title 1] some longer text in three lines \end{tcolorbox} }; \node(B) [N] { % added position of second box \begin{tcolorbox}[title=Title 2] some short text \end{tcolorbox} }; \node(C) [N] { % added position of second box \begin{tcolorbox}[title=Title 3] some text \end{tcolorbox} }; \end{tikzpicture} \end{center} \end{frame}

\end{document}

enter image description here

Zarko
  • 296,517
  • Thank you! The tcolorbox is there because in some use cases I have something like a titled box there. That's why I put tcolorbox in the code. If tcolorbox makes things over complicated, I could try to avoid that. – Norman Jul 08 '23 at 20:57
  • 1
    @Norman, in such a cases is better to use shapes.multipart library (see package documentation, paragraph *rectangle split`, pp 819). – Zarko Jul 08 '23 at 21:54
  • @Norman, see both addendums. It seems that you looking for solution in the second one :-) – Zarko Jul 09 '23 at 11:42
