Beamer: Revealing cells one by one, striking off a list at the same time

Question

The entries in cells need to appear one by one and at the same time content (entire row) in the reference table no. 1 needs to be struck through.

%\documentclass[aspectratio=169, handout]{beamer}
\documentclass[aspectratio=169]{beamer}                 % Document class
\usepackage{subcaption}
\usepackage[english]{babel}             % Set language
\usepackage[utf8x]{inputenc}            % Set encoding
\usepackage{nicematrix,tikz}
\mode<presentation>                     % Set options
{
  \usetheme{default}                    % Set theme
  \usecolortheme{rose}              % Set colors
  \usefonttheme{default}                % Set font theme
  \setbeamertemplate{caption}[numbered] % Set caption to be numbered
}
\usepackage{tabularx}
\usepackage{graphicx}                   % For including figures
\usepackage{booktabs, caption}                  % For table rules
\usepackage{hyperref}                   % For cross-referencing
\usepackage{fontawesome}
\usepackage{charter} % serif
\usepackage{xcolor}
\usepackage{colortbl}
\usepackage{pdflscape,array,booktabs}
\usepackage[font=scriptsize]{caption}
\begin{document}
\setbeamertemplate{frametitle}[default][center]
\begin{frame}
    \begin{itemize}[<+|+->]
        \small
        \item[]     \tiny{\begin{table}
                \caption{Feeding table}
                \begin{tabular}{ c | c | c }
                    \toprule
                    Task & Time &Positional weight\
                    \midrule
                    1 & 12 &70 \
                    2 & 6 &58 \
                    3 & 6 &31\
                    4 & 2 &27 \
                    5 & 2 & 20\
                    6 &  12 & 29 \
                    7 & 7 & 25\
                    8 & 5 & 18\
                    9 & 1 &18 \
                    10 & 4 &17 \
                    11 &  6&13 \
                    12 &  7 &7 \
                    \bottomrule
                \end{tabular}
            \end{table}
        }
    \item Method:
        \item From the available tasks, choose the task for which the sum of following task times is the longest.
        \vspace*{-0.2cm}
        \item[] \begin{table}
                \caption{Data picked up from feeding table}
            \centering
            \tiny
            \begin{tabular}{l | m{1cm} | m{1cm} | m{1cm} | m{1cm} | m{1cm} | m{1cm}}
                \toprule
                Station & 1 & 2 & 3 & 4 & 5 & 6 \
                \midrule
                Tasks &\onslide<5->{1} &\onslide<6->{2,3,4} & \onslide<7->{6,5,9}& \onslide<8->{7,8} & \onslide<9->{10,11} & \onslide<10->{12} \
                \bottomrule
            \end{tabular}
        \end{table}
    \end{itemize}

\end{frame}
\end{document}

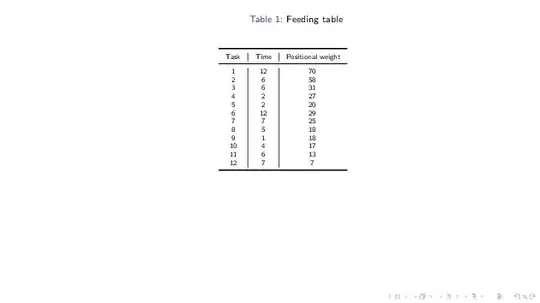

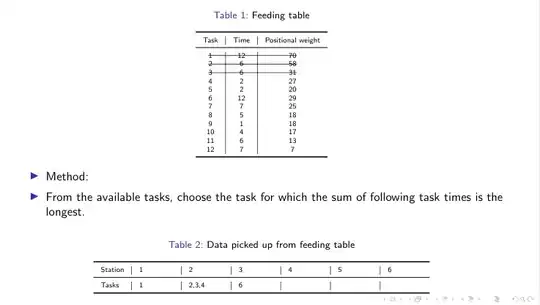

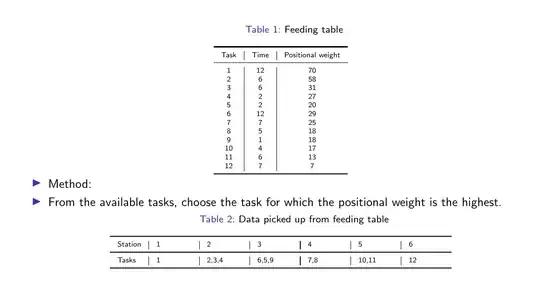

For the table number 2 in the row marked Tasks, the tasks number are picked up from the table number 1. As the task numbers get picked, the corresponding entry (entire row) in the table number 1 needs to be striked through. Also, for the cells which are having multiple task numbers the entries need to appear one by one. For example: \onslide<6->{2,3,4}, the content should appear one by one, first 2, then 3, and 4. How to do this simultaneous striking through in the table 1 (entire row) as tasks get filled in table 2 from table 1?

You shouldn't use the utf8x inputenc option with a current latex distribution — samcarter_is_at_topanswers.xyz, Aug 14 '23 at 07:46

samcarter_is_at_topanswers.xyz · Accepted Answer · 2023-08-14T15:23:58.137

You could use the trick from https://tex.stackexchange.com/a/265728/36296 to strike through rows in your table:

%\documentclass[aspectratio=169, handout]{beamer}
\documentclass[aspectratio=169]{beamer}                 % Document class
\usepackage{subcaption}
\usepackage[english]{babel}             % Set language
%\usepackage[utf8x]{inputenc}            % Set encoding
\usepackage{nicematrix,tikz}
\mode<presentation>                     % Set options
{
  \usetheme{default}                    % Set theme
  \usecolortheme{rose}              % Set colors
  \usefonttheme{default}                % Set font theme
  \setbeamertemplate{caption}[numbered] % Set caption to be numbered
}
\usepackage{tabularx}
%\usepackage{graphicx}                   % For including figures
\usepackage{booktabs, caption}                  % For table rules
%\usepackage{hyperref}                   % For cross-referencing
\usepackage{fontawesome}
\usepackage{charter} % serif
%\usepackage{xcolor}
\usepackage{colortbl}
\usepackage{pdflscape,array,booktabs}
\usepackage[font=scriptsize]{caption}
\usepackage{tikz}
\usetikzlibrary{tikzmark}
\begin{document}
\setbeamertemplate{frametitle}[default][center]
\begin{frame}
    \begin{itemize}[<+|+->]
        \small
        \item[] \begin{table}
                \tiny
                \caption{Feeding table}
                \begin{tabular}{ c | c | c }
                    \toprule
                    Task & Time &Positional weight\
                    \midrule
                    \tikzmark{1-start}1 & 12 &70  \tikzmark{1-stop} \
                    \tikzmark{2-start}2 & 6 &58   \tikzmark{2-stop}\
                    \tikzmark{3-start}3 & 6 &31   \tikzmark{3-stop}\
                    \tikzmark{4-start}4 & 2 &27   \tikzmark{4-stop}\
                    \tikzmark{5-start}5 & 2 & 20  \tikzmark{5-stop}\
                    \tikzmark{6-start}6 & 12 & 29 \tikzmark{6-stop}\
                    \tikzmark{7-start}7 & 7 & 25  \tikzmark{7-stop}\
                    \tikzmark{8-start}8 & 5 & 18  \tikzmark{8-stop}\
                    \tikzmark{9-start}9 & 1 &18   \tikzmark{9-stop}\
                    \tikzmark{10-start}10 & 4 &17 \tikzmark{10-stop}\
                    \tikzmark{11-start}11 &  6&13 \tikzmark{11-stop}\
                    \tikzmark{12-start}12 &  7 &7 \tikzmark{12-stop}\
                    \bottomrule
                \end{tabular}
            \end{table}
    \item Method:
        \item From the available tasks, choose the task for which the sum of following task times is the longest.
        \vspace*{-0.2cm}
        \item[] \begin{table}
                \caption{Data picked up from feeding table}
            \centering
            \tiny
            \begin{tabular}{l | m{1cm} | m{1cm} | m{1cm} | m{1cm} | m{1cm} | m{1cm}}
                \toprule
                Station & 1 & 2 & 3 & 4 & 5 & 6 \
                \midrule
                Tasks &\uncover<+->{1} &\uncover<+->{2}\uncover<+->{,3}\uncover<+->{,4} & \uncover<+->{6}\uncover<+->{,5}\uncover<+->{,9}& \uncover<+->{7}\uncover<+->{,8} & \uncover<+->{10}\uncover<+->{,11} & \uncover<+->{12} \
                \bottomrule
            \end{tabular}
        \end{table}
    \end{itemize}

\begin{tikzpicture}[remember picture,overlay]
  \draw<5-> ([yshift=.2em]pic cs:1-start) -- ([yshift=.2em]pic cs:1-stop);
  \draw<6-> ([yshift=.2em]pic cs:2-start) -- ([yshift=.2em]pic cs:2-stop);
  \draw<7-> ([yshift=.2em]pic cs:3-start) -- ([yshift=.2em]pic cs:3-stop);
  \draw<8-> ([yshift=.2em]pic cs:4-start) -- ([yshift=.2em]pic cs:4-stop);
  \draw<9-> ([yshift=.2em]pic cs:6-start) -- ([yshift=.2em]pic cs:6-stop);

  \draw<10-> ([yshift=.2em]pic cs:5-start) -- ([yshift=.2em]pic cs:5-stop);
  \draw<11-> ([yshift=.2em]pic cs:9-start) -- ([yshift=.2em]pic cs:9-stop);

  \draw<12-> ([yshift=.2em]pic cs:7-start) -- ([yshift=.2em]pic cs:7-stop);
  \draw<13-> ([yshift=.2em]pic cs:8-start) -- ([yshift=.2em]pic cs:8-stop);
  \draw<14-> ([yshift=.2em]pic cs:10-start) -- ([yshift=.2em]pic cs:10-stop);
  \draw<15-> ([yshift=.2em]pic cs:11-start) -- ([yshift=.2em]pic cs:11-stop);
  \draw<16-> ([yshift=.2em]pic cs:12-start) -- ([yshift=.2em]pic cs:12-stop);

\end{tikzpicture}

\end{frame}
\end{document}

Package tikz Error: I did not find the tikz library 'tikzmark'. I looked for either could be found in the current texmf trees.. \usetikzlibrary{tikzmark}. Package tikz Error: I did not find the tikz library 'overlay-beamer-styles'. mf trees.. \usetikzlibrary{overlay-beamer-styles}. It is showing the above errors during compilation. — mathslove, Aug 14 '23 at 15:20
@mathslove Do you have https://www.ctan.org/pkg/tikzmark and https://www.ctan.org/pkg/aobs-tikz installed? — samcarter_is_at_topanswers.xyz, Aug 14 '23 at 15:21
@mathslove Your tex distribution seems to be very incomplete. Which tex distribution do you use? — samcarter_is_at_topanswers.xyz, Aug 14 '23 at 15:21
(aobs is not strictly necessary for this answer and I removed it) — samcarter_is_at_topanswers.xyz, Aug 14 '23 at 15:25
Unfortunately, the package tikzmark could not be installed. Please check the log file: /Users/bhawnapriya338/ Library/ Application Support/MiKTeX/texmfs/data/miktex/log/pdflatex.log. This is the main error. — mathslove, Aug 14 '23 at 15:31
@mathslove This sounds very broken. Best ask a new question about your problem to install tikmarks in miktex. — samcarter_is_at_topanswers.xyz, Aug 14 '23 at 15:35
Yes using macOS. Let me check the issue. I will start a new thread if it doesn't get resolve. — mathslove, Aug 14 '23 at 15:51
@mathslove I wouldn't use miktex on macos. Almost all mac users will either use mactex or directly texlive. That's so much better tested. Big advantage of mactex and texlive: they can do a full installation and thus avoid any missing packages error in the future. — samcarter_is_at_topanswers.xyz, Aug 14 '23 at 15:56

F. Pantigny · Answer 2 · 2023-08-15T12:40:00.510

Here is a solution with nicematrix. You need several compilations (because of the PGF/Tikz nodes constructed by nicematrix).

\documentclass[aspectratio=169]{beamer}
\usepackage[english]{babel}
\mode<presentation>

{
  \usetheme{default}

  \usecolortheme{rose}

  \usefonttheme{default}

  \setbeamertemplate{caption}[numbered]
}
\usepackage{fontawesome}
\usepackage{charter}
\usepackage{pdflscape}
\usepackage{booktabs}
\usepackage[font=scriptsize]{caption}
\usepackage{nicematrix,tikz}
\ExplSyntaxOn
\newcommand<> { \Strike }

  {
    \only#1
      {
        \tl_gput_right:Nx \g_nicematrix_code_after_tl
          { \mathslove_strike:n { \arabic { iRow } } }
      }
    \ignorespaces
  }
\cs_new_protected:Nn \mathslove_strike:n
  { \tikz \draw ([yshift=2pt]#1-1.south~west) -- ([yshift=2pt]#1-3.south~east) ; }
\ExplSyntaxOff
% In {NiceTabular} of nicematrix, the rules drawn by "|" are
% never broken, even when using \toprule, etc. of booktabs.
% The following column type behaves as standard "|" of {tabular}.
\newcolumntype{I}{!{\vrule}}
\begin{document}
\setbeamertemplate{frametitle}[default][center]
\begin{frame}
  \small
  \begin{table}
     \tiny
     \caption{Feeding table}
     \begin{NiceTabular}{cIcIc}
        \toprule
          Task & Time & Positional weight \
        \midrule
          \Strike<5->   1 & 12 & 70 \
          \Strike<6->   2 &  6 & 58 \
          \Strike<7->   3 &  6 & 31 \
          \Strike<8->   4 &  2 & 27 \
          \Strike<10->  5 &  2 & 20 \
          \Strike<9->   6 & 12 & 29 \
          \Strike<12->  7 &  7 & 25 \
          \Strike<13->  8 &  5 & 18 \
          \Strike<11->  9 &  1 & 18 \
          \Strike<14-> 10 &  4 & 17 \
          \Strike<15-> 11 &  6 & 13 \
          \Strike<16-> 12 &  7 &  7 \
        \bottomrule
     \end{NiceTabular}
  \end{table}
\begin{itemize}[<+|+->]
    \item Method:
    \item From the available tasks, choose the task for which the sum of following task times is the longest.
  \end{itemize}
\uncover<3->
    {
  \begin{table}
    \caption{Data picked up from feeding table}
    \centering
    \tiny
    \begin{tabular}{l | m{1cm} | m{1cm} | m{1cm} | m{1cm} | m{1cm} | m{1cm} }
       \toprule
         Station & 1 & 2 & 3 & 4 & 5 & 6 \
       \midrule
         Tasks &\uncover<+->{1} &\uncover<+->{2}\uncover<+->{,3}\uncover<+->{,4} & \uncover<+->{6}\uncover<+->{,5}\uncover<+->{,9}& \uncover<+->{7}\uncover<+->{,8} & \uncover<+->{10}\uncover<+->{,11} & \uncover<+->{12} \
       \bottomrule
    \end{tabular}
  \end{table}
    }
\vfill
\end{frame}
\end{document}

The main part of the code is the following command \Strike.

\ExplSyntaxOn
\newcommand<> { \Strike }
  {
    \only#1
      {
        \tl_gput_right:Nx \g_nicematrix_code_after_tl
          { \mathslove_strike:n { \arabic { iRow } } }
      }
    \ignorespaces
  }
\cs_new_protected:Nn \mathslove_strike:n
  { \tikz \draw ([yshift=2pt]#1-1.south~west) -- ([yshift=2pt]#1-3.south~east) ; }
\ExplSyntaxOff

That command \Strike acts by side effect, that is to say that it adds code in the parameter \g_nicematrix_code_after_tl provided by nicematrix (it's a parameter internal but public) and do not do the typesetting directly. That's why we need \only and not \uncover (with \uncover, the rule would always be drawn since it's a side effect).
