Tikz:How to achieve the effect in the picture aesthetically?

Question

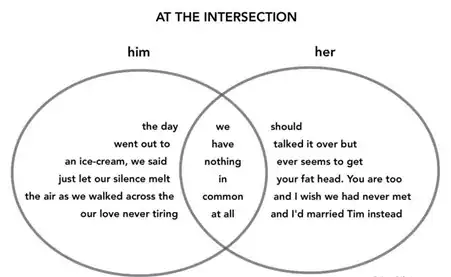

what i want to achieve：

my code：

\documentclass{article}
\usepackage{tikz}
\begin{document}
\centering
\begin{tikzpicture}[thick]
    \draw (-1,0) rectangle (16,10);
    \draw (10,5) circle (5);
    \draw (5,5) circle (5);
    \node at (14,9.5) {$\Omega$};
    \linespread{1.5} %
    \node at (2.5,5) {\shortstack{the day\\went out to\\an ice-cream, we said\\just let our silence melt\\the air as we walked across the\\our love never tiring}};
    \node at (12.5,5) {\shortstack{should\\talked it over but\\ever seems to get\\your fat head.You are too\\and l wish we had never met\\and l$^{,}$d married Tim instead}};
    \node at (7.5,5) {\shortstack{we\\have\\nothing\\in\\common}};
\end{tikzpicture}


\end{document}

The effect is unsatisfactory：

I hope that the picture can better grasp the relative distance and make the picture more beautiful.

Because this is a collection of poetry and mathematics, I hope that the corresponding structural features will be more obvious.

thanks for your help！

Welcome. // Thanks for the code. Unfortunately it won't compile: please add the missing lines. Thank you — MS-SPO, Aug 15 '23 at 17:03
@MS-SPO Thanks Reply! I have updated the code, this code can run directly on overleaf. It didn't work before probably because the content length exceeded the page width and the overall context was missing. — Barry Alen, Aug 15 '23 at 17:11
You could place each line separately or you could employ parshapes but that won't be very easier either with the degrees of freedom you have her. — Qrrbrbirlbel, Aug 15 '23 at 23:11

score 2 · Answer 1 · answered Aug 15 '23 at 17:29

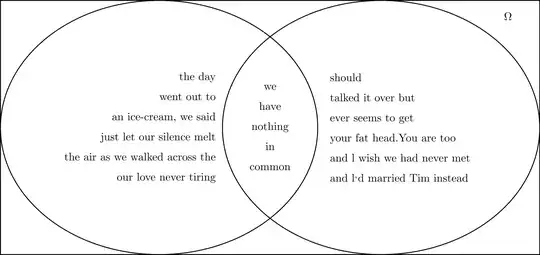

You can try with that. Aligning the text was the key. But I didn't manage to bend the alignment around the curves like you showed in the example.

\documentclass{standalone}
\usepackage{standalone}
\usepackage{tikz}
\begin{document}
\centering
\begin{tikzpicture}[thick]
    \draw (-1,1) rectangle (16,9);
    \draw (11,5) ellipse (5 and 4);
    \draw (4,5) ellipse (5 and 4);
    \node at (15,8.5) {$\Omega$};
    \linespread{1.5} %
    \node[align = right] at (3.4,5) {the day\\went out to\\an ice-cream, we said\\just let our silence melt\\the air as we walked across the\\our love never tiring};
    \node[align = left] at (11.6,5) {should\\talked it over but\\ever seems to get\\your fat head.You are too\\and l wish we had never met\\and l$^{,}$d married Tim instead};
    \node[align = center] at (7.5,5) {we\\have\\nothing\\in\\common};
\end{tikzpicture}


\end{document}
