Is it possible to make a footnote inside the text like in the image? If so, how? I’ve no MWE.

I’m using the memoir class.

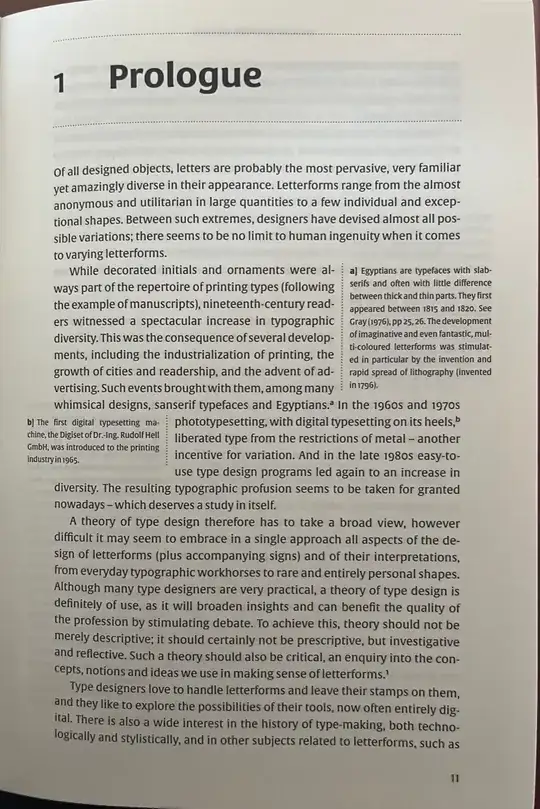

enter image description here

Alan Munn
  • 218,180
  • 2
    Welcome to TeX.se. Typically questions need to involve more than just posting an image of the desired output, although in this case I understand your dilemma if you truly don't know where to start. Unfortunately this kind of layout is very difficult to do in LaTeX. The closest potential for a solution might be to use the never-released pullquote package. See Two-column text with circular insert. – Alan Munn Sep 15 '23 at 16:10
  • If having the notes cut into text is not a requirement, it is possible to have left and right margin notes, but not attached to the same paragraph. See Margin notes on both left and right?. – Alan Munn Sep 15 '23 at 16:56
  • @AlanMunn hello, yeah, i know. i had doubts about posting this... it´s really complicated and i trully don´t know where to start from. i´ll have a look at the suggestion you gave me in the first comment. for that i am very grateful. the thing is that i don´t want to use margin notes on left & right. i´m designing a book layout aimed at saving white space on the page and this type of notes reduce the blank space while making the page dynamic. this is something easy to do in photoshop, but my entire project is based on latex. – Rafael Benítez Mozos Sep 15 '23 at 17:12
  • Tiny quibble about the title: "next" should be "text". (Will make more sense.) – barbara beeton Sep 15 '23 at 17:29

1 Answers1

4

Please provide always a minimal working example (MWE) in your questions of how far you can go, at least to avoid us make the example of the solution from scratch

This approach use the wrapfig package to make the text cuts. However, note that a wrapfigure have several constraints, so it cannot be placed anywhere without care and expect a good result. See the manual of the package.

The MWE:

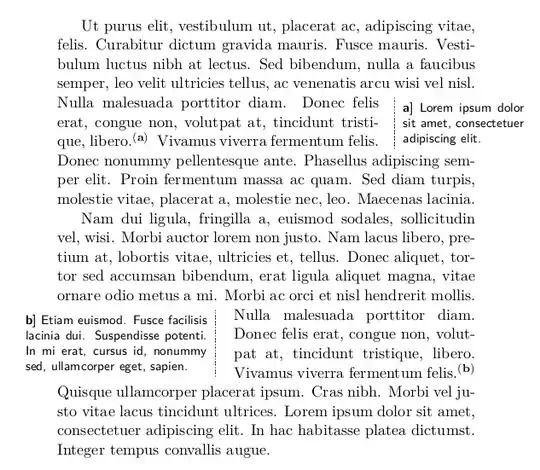

mwe


\documentclass[11pt,a5paper]{article}
\usepackage{geometry}
\usepackage{sidenotes}
\newcounter{foo}
\setcounter{foo}{1}
\def\smark{\textsuperscript{(\textbf{\alph{foo}})}\addtocounter{foo}{1} }
\def\thesidenote{{\bfseries\alph{foo}}}
\def\notestyle{\footnotesize\sffamily{\thesidenote]} }
\usepackage{arydshln}
\usepackage{wrapfig} \intextsep0em \columnsep1em
\usepackage{lipsum}
\begin{document}

\lipsum[1][2-3] \lipsum[5][1-3] % Place it at the end of line o before the paragraph. \begin{wrapfigure}[3]{r}[1cm]{3cm} \begin{tabular}{;{1pt/1pt}p{3cm}} \notestyle\lipsum[1][1] \ \end{tabular} \end{wrapfigure} \lipsum[3][1-2]\smark{} \lipsum[3][3-8]

\lipsum*[2][1-5] \begin{wrapfigure}[4 ]{l}[1cm]{5cm} \begin{tabular}{p{4.5cm};{1pt/1pt}} \notestyle \lipsum[12][1-4] \end{tabular}

\end{wrapfigure} \lipsum[3][1-3]\smark \lipsum[4][1-6]

\end{document}

Fran
  • 80,769
  • I'v never seen a tabular with something like ;{1pt/1pt}, what does it do? – user574859 Sep 16 '23 at 10:35
  • 2
    The vertical dashed line. Need the package arydshln to work. – Fran Sep 16 '23 at 11:19
  • 1
    +1 While I agree that a MWE is usually appropriate, I think in this particular case, it wouldn't have helped much at all. It would at best have provided 4 lines of code, since the OP really didn't know where to start. So your admonishment is perhaps a bit harsh in this case. – Alan Munn Sep 16 '23 at 16:10
  • @cfr Oh, I forgot to delete those packages. Edited, thanks. – Fran Sep 16 '23 at 16:48
  • 1
    @AlanMunn Yes, but because that, it was not just a comment, but a comment for the next question, with an answer. ;) – Fran Sep 16 '23 at 16:49
  • I already +1ed ;). Thanks for editing. – cfr Sep 16 '23 at 19:22
