I am creating a diagram with tikz-feynman (code below) and two labels overlap each other. I would like to displace the two labels starting $p - q ... and $p + q ... so that they don't overlap. (I appreciate that I could just make the diagram bigger, but I want to locate it in a place where I have limited space.)

This code is compiled by LuaTex in lextlive 2018 https://www.overleaf.com/learn/latex/Feynman_diagrams#Update_(9_November_2022)

\documentclass{article}

\usepackage{tikz}

\usepackage[compat=1.1.0]{tikz-feynman} \usepackage{bm}

\begin{document}

\feynmandiagram [horizontal=a to b] { s0 [particle={$\omega_{\rm in}, \bm{k}{\rm in}$}] -- [photon] i1 [label=above right:{$\bm{p}-\bm{q}, \omega-\Omega$}], s1 [particle={$\omega{\rm out}, \bm{k}{\rm out}$}] -- [photon] i2, i2 -- [charged scalar] i1, i1 -- [fermion] a -- [fermion, edge label={$\bm{p}, \omega$}] i2, a -- [gluon, edge label'={$\bm{q}, \Omega$}] b, f1 -- [fermion, edge label={$\bm{p}^\prime, \omega^\prime$}] b -- [fermion] f2, f1 -- [charged scalar] f2 [label=above left:{$\bm{p}^\prime+\bm{q}, \omega^\prime+\Omega$}], f1 -- [photon] l1 [particle={$\omega{\rm out}, \bm{k}{\rm out}$}], f2 -- [photon] l2 [particle={$\omega{\rm in}, \bm{k}_{\rm in}$}], };

\end{document}

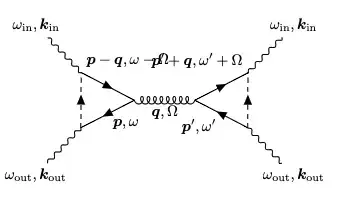

diagram

  • 1
    I don't see the same thing as you do when I compile the document in LuaLaTeX in TeX Live 2023. Much of the text is positioned in different places when I compile it (though there still is overlap). – gz839918 Oct 01 '23 at 02:26
  • You are correct: https://www.overleaf.com/learn/latex/Feynman_diagrams#Update_(9_November_2022)

    I will update this on the question.

    – Mark Dean Oct 02 '23 at 13:36
  • 1
    Label is a special node. You can pass node options to a label through label={[<options>]<angle>:<text>}. For example with label={[red,above right=10pt and -5pt]{$\bm{p}-\bm{q}, \omega-\Omega$}} and label={[blue,above left]{$\bm{p}^\prime+\bm{q}, \omega^\prime+\Omega$}} the two labels are colored and don't overlap anymore. I don't have enough physics knowledge to decide which position is better. The different output between TeX Live 2018 and 2023 on Overleaf is probably caused by the different Lua version used by LuaTeX, see https://tex.stackexchange.com/q/468466. – muzimuzhi Z Oct 02 '23 at 16:18
