I inserted a wide table in the IEEE Access class but some of the elements are located out of the boarder of a column:

    \documentclass{ieeeaccess}
    \usepackage{multirow}

\begin{document}
\begin{table}



\centering
    \caption{Operation on weighted feature detectors}
    \label{tab:tabel_maxop}
    \setlength{\tabcolsep}{3pt}
    \begin{tabular}{|p{100pt}|p{25pt}|p{25pt}||p{25pt}|p{25pt}||p{25pt}|p{25pt}||p{25pt}|}
        \hline
Method1 (Original)  & 32.5 & 16.9& 32.5 & 16.9& 32.5 & 16.9& 32.5 \
        \hline
Method1 (Original)  & 32.5 & 16.9& 32.5 & 16.9& 32.5 & 16.9& 32.5 \
        \hline
        Method1 (Original)  & 32.5 & 16.9& 32.5 & 16.9& 32.5 & 16.9& 32.5 \
        \hline
        Method1 (Original)  & 32.5 & 16.9& 32.5 & 16.9& 32.5 & 16.9& 32.5 \
        \hline
        Method1 (Original)  & 32.5 & 16.9& 32.5 & 16.9& 32.5 & 16.9& 32.5 \
        \hline
        Method1 (Original)  & 32.5 & 16.9& 32.5 & 16.9& 32.5 & 16.9& 32.5 \
        \hline
        Method1 (Original)  & 32.5 & 16.9& 32.5 & 16.9& 32.5 & 16.9& 32.5 \
        \hline

    \end{tabular}
\end{table}
    \end{document}

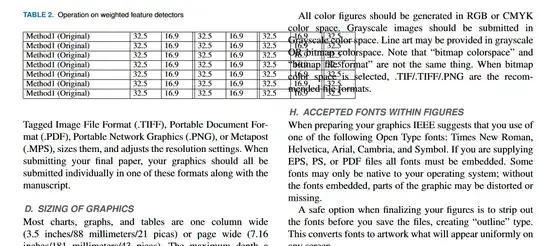

Although I do not see any error but the table is wide and cannot be located in one colummn:

How can I place that in the center?

dtr43
  • 95
  • 6
  • you have declared a table with three p columns |p{100pt}|p{25pt}|p{25pt}| but with 8 columns of data, hence the extra alignment tab error. – David Carlisle Oct 17 '23 at 22:58
  • @DavidCarlisle , I edited to mention the main issue. – dtr43 Oct 17 '23 at 23:13
  • You're using a non-standard class. If you can reproduce with a standard class, please do so. If the class is implicated, please explain how it can be obtained. – cfr Oct 18 '23 at 01:11
  • 1
    You've defined all columns with an explicit width and wider than needed. Why are you doing so? You could, e.g., use an l column for the first column and l, c, or r or package siunitx for the number columns. – cabohah Nov 13 '23 at 10:19

1 Answers1

1

You can use tabularray.

\documentclass{ieeeaccess}
\usepackage{graphicx}
\usepackage{tabularray}
\usepackage{lipsum}
\begin{document}
\lipsum[1-6]
\begin{table}
\centering
\caption{Operation on weighted feature detectors}
\label{tab:tabel_maxop}
\begin{tblr}
{
hlines,vlines,
columns={colsep=4pt},
columns={valign=m,co=-1},
rows={halign=c},
}
Method1 (Original) & 32.5 & 16.9 & 32.5 & 16.9 & 32.5 & 16.9 & 32.5 \\
Method1 (Original) & 32.5 & 16.9 & 32.5 & 16.9 & 32.5 & 16.9 & 32.5 \\
Method1 (Original) & 32.5 & 16.9 & 32.5 & 16.9 & 32.5 & 16.9 & 32.5 \\
Method1 (Original) & 32.5 & 16.9 & 32.5 & 16.9 & 32.5 & 16.9 & 32.5 \\
Method1 (Original) & 32.5 & 16.9 & 32.5 & 16.9 & 32.5 & 16.9 & 32.5 \\
Method1 (Original) & 32.5 & 16.9 & 32.5 & 16.9 & 32.5 & 16.9 & 32.5 \\
Method1 (Original) & 32.5 & 16.9 & 32.5 & 16.9 & 32.5 & 16.9 & 32.5 \\
\end{tblr}
\end{table}
\EOD
\end{document}

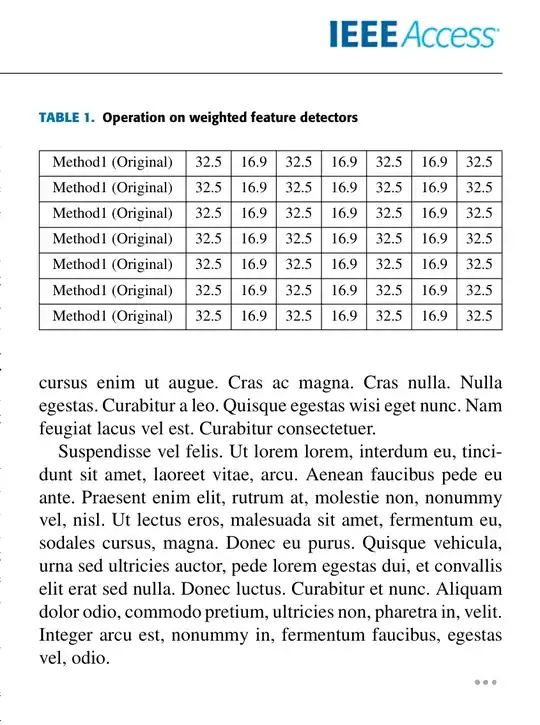

enter image description here
