Drawing this pathway with Tikz

Question

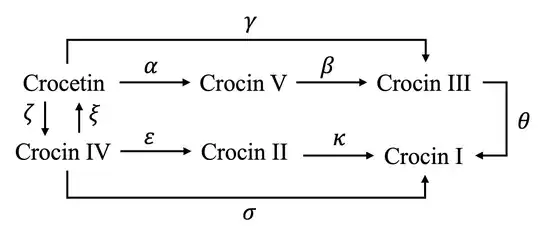

I want to generate this pathway with Tikz, but I do not know how. I tried it with this, but it didn't work (I want to use compiler LaTeX, not pdfLaTeX, and I use OverLeaf.) Can anyone help?

\documentclass{article}
\usepackage{tikz}
\usetikzlibrary{positioning, arrows.meta, decorations.pathreplacing}
\begin{document}
\begin{tikzpicture}[>=Stealth, node distance=2cm and 3cm, thick]
  % Nodes
  \node (crocetin) {Crocetin};
  \node[right=of crocetin] (crocinV) {Crocin V};
  \node[right=of crocinV] (crocinIII) {Crocin III};
  \node[below=of crocinV] (crocinII) {Crocin II};
  \node[left=of crocinII] (crocinIV) {Crocin IV};
  \node[below=of crocinIII] (crocinI) {Crocin I};
% Arrows with labels above
  \draw[->] (crocetin) -- node[above] {$\alpha$} (crocinV);
  \draw[->] (crocinV) -- node[above] {$\beta$} (crocinIII);
  \draw[->] (crocinIII) |- node[near start, right] {$\gamma$} (crocinI);
  \draw[<-] (crocinI) -- node[above] {$\kappa$} (crocinII);
  \draw[->] (crocinIV) -- node[above] {$\epsilon$} (crocinII);
  \draw[->] (crocetin) -- node[left] {$\xi$} (crocinIV);
% Curved arrows
  \draw[->] (crocinI.south) to[out=-90,in=-90,looseness=1.5] node[below] {$\theta$} (crocetin.south);
% Brace
  \draw[decorate, decoration={brace, amplitude=10pt, mirror}]
  (crocinIV.south west) -- (crocinI.south east) node[midway, below=10pt] {$\sigma$};
\end{tikzpicture}
\end{document}

score 3 · Answer 1 · answered Nov 04 '23 at 10:29

\documentclass{article}
\usepackage{tikz}
\usetikzlibrary{arrows.meta}
\begin{document}
    \begin{tikzpicture}[thick, >=Triangle,
        block/.style={align=center, text width=5em, minimum height=4ex}]
        \draw[->] (0,0) node[block, anchor=east] (cr0) {Crocetin} -- node[above] {$\alpha$} ++(1.5,0) node[block, anchor=west] (cr5) {Crocin V};
        \draw[->] (cr5.east) -- node[above] {$\beta$} ++(1.5,0) node[block, anchor=west] (cr3) {Crocin III};
        \path (cr0.south) -- ++(0,-1) node[block, below] (cr4) {Crocin IV};
        \draw[->] ([xshift=-8pt]cr0.south) -- node[left] {$\zeta$} ([xshift=-8pt]cr4.north);
        \draw[<-] ([xshift=8pt]cr0.south) -- node[right] {$\xi$} ([xshift=8pt]cr4.north);
        \draw[->] (cr4.east) -- node[above] {$\varepsilon$} ++(1.5,0) node[block, anchor=west] (cr2) {Crocin II};
        \draw[->] (cr2.east) -- node[above] {$\kappa$} ++(1.5,0) node[block, anchor=west] (cr1) {Crocin I};
        \draw[->] (cr3.east) -- ++(2em,0) |- (cr1.east) node[pos=0.25, right] {$\theta$};
        \draw[->] (cr0.north) -- ++(0,2em) -| (cr3.north) node[pos=0.25, above] {$\gamma$};
        \draw[->] (cr4.south) -- ++(0,-2em) -| (cr1.south) node[pos=0.25, below] {$\sigma$};
    \end{tikzpicture}
\end{document}

I tried with the compiler `LaTeX' and it operates, but the formatting is not correct. Is there any idea why this occurs? — observer_meow, Nov 04 '23 at 11:46
I added `\documentclass[dvipdfmx]{jsarticle}' to the preamble and it worked! Thank you so much! — observer_meow, Nov 04 '23 at 11:51

Zarko · Answer 2 · 2023-11-04T13:37:43.090

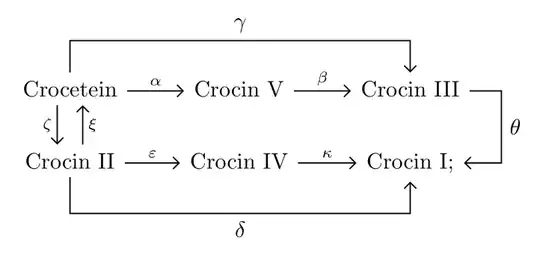

With tikz.cd (for simple positioning of nodes and drawing arrows between adjacent nodes) and ext.paths.ortho (for simple drawing zig-zag arrows between not adjacent nodes) libraries:

\documentclass[margin=3.141592mm,varwidth]{standalone}
\usepackage{tikz-cd}
\usetikzlibrary{arrows.meta,
                ext.paths.ortho,    % defined in the tikz-ext package
                }
\begin{document}
\begin{tikzcd}[

math mode = false,
arrow style = tikz,
     arrows = {>=Straight Barb, semithick, math mode},
                  ]
Crocetein \rar["\alpha"]

\dar[shift right=2mm, "\zeta" ']
\ar[rr, "\gamma", to path={r-ud node[above] {$\gamma$} (\tikztotarget)}]

    & Crocin V  \rar["\beta"]

        & Crocin III    \dar[to path={r-rl node[right] {$\theta$} (\tikztotarget)}] \
Crocin II
\rar["\varepsilon"]
    \uar[shift right=2mm,"\xi" ']

    \ar[rr, to path={r-du node[below] {$\delta$} (\tikztotarget)} ]
    & Crocin IV  \rar["\kappa"]

        & Crocin I;
    \end{tikzcd}
\end{document}
