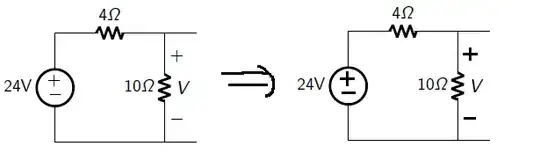

How to make in Bold the (+ and -) of vsource in tikzcircuit

Question

Please clarify your specific problem or provide additional details to highlight exactly what you need. As it's currently written, it's hard to tell exactly what you're asking. — Community, Nov 12 '23 at 15:22
What the automatic comment means is that it would be helpful if you can post the full LaTeX code of a document that contains the example diagram. This would make it easier to reproduce and to test potential answers. — Marijn, Nov 12 '23 at 15:26
Since you have some responses below that seem to answer your question, please consider marking one of them as ‘Accepted’ by clicking on the tickmark below their vote count (see How do you accept an answer?). This shows which answer helped you most, and it assigns reputation points to the author of the answer (and to you!). It's part of this site's idea to identify good questions and answers through upvotes and acceptance of answers. — Rmano, Nov 15 '23 at 10:02

Rmano · Accepted Answer · 2023-11-12T19:06:15.603

I suppose you are using circuitikz (because you tagged so --- would you please provide an example next time, or if my answer is not the one you are looking for?). Moreover, I suppose you are using standard fonts and pdflatex.

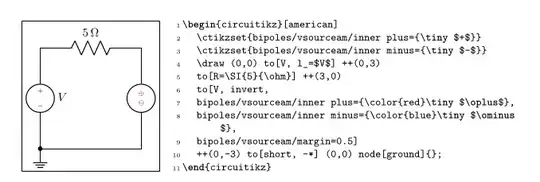

In that case, you can use the keys shown around page 75 in the (current) manual:

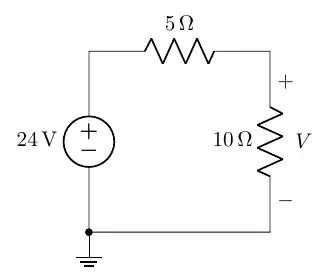

So, for example (I fixed the units also so that they use standard SI typesetting)

\documentclass[border=10pt]{standalone}
\usepackage[T1]{fontenc}
\usepackage[siunitx, RPvoltages, american]{circuitikz}
\ctikzset{bipoles/vsourceam/inner plus={\boldmath $+$}}
\ctikzset{bipoles/vsourceam/inner minus={\boldmath $-$}}
\begin{document}
\begin{tikzpicture}[]
    \draw (0,0) to[V, l=\qty{24}{\volt}] ++(0,3)
        to[R=\qty{5}{\ohm}] ++(3,0)
        to[R, l_=\qty{10}{\ohm}, v^=$V$]
        ++(0,-3) to[short, -*] (0,0) node[ground]{};
\end{tikzpicture}
\end{document}

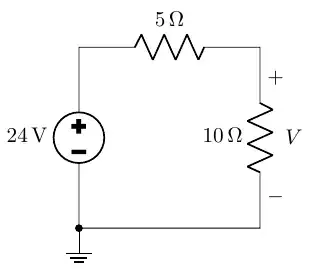

Notice that, anyway, the bold plus and minus are, at least with standard math font, not so bold... you can have a look here for some suggestions, or, if you want to go really bold:

\documentclass[border=10pt]{standalone}
\usepackage[T1]{fontenc}
\usepackage[siunitx, RPvoltages, american]{circuitikz}
\usepackage{pifont}
\ctikzset{bipoles/vsourceam/inner plus=\ding{58}}
\ctikzset{bipoles/vsourceam/inner minus=\rotatebox{90}{\ding{121}}}
\begin{document}
\begin{tikzpicture}[]
    \draw (0,0) to[V, l=\qty{24}{\volt}] ++(0,3)
        to[R=\qty{5}{\ohm}] ++(3,0)
        to[R, l_=\qty{10}{\ohm}, v^=$V$]
        ++(0,-3) to[short, -*] (0,0) node[ground]{};
\end{tikzpicture}
\end{document}

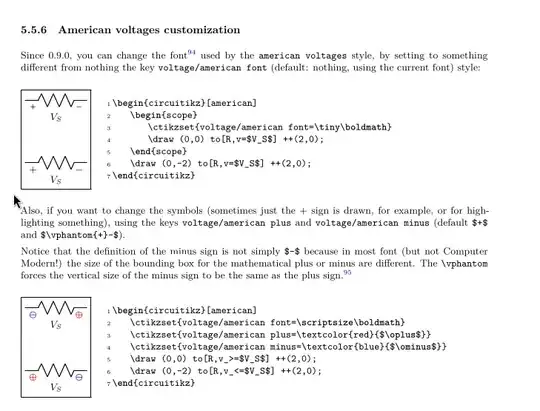

If you also want to change the symbols in the voltage indication (but please, do not use pifont for that !), you can use the settings found on page 207:

I guess he want the plus and minus sign for the right side ‘resistor’ also in bold. — Tom, Nov 12 '23 at 19:02
@Tom not sure, but I added to the answer the relevant manual excerpt. — Rmano, Nov 12 '23 at 19:06
