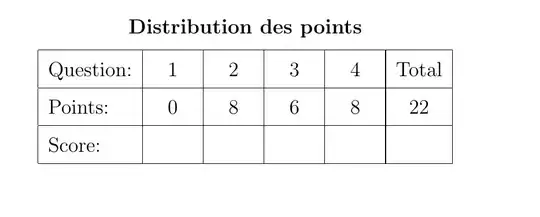

I'm using the exam class. I would like to modify the grade table so that instead of "Question" it would read "Domanda", instead of "Score" it would read "Punteggio". For the moment, I obtain something like this: enter image description here

Moreover, I would like an extra column to appear with the name "Bonus redaction". I enclose here my code.

\documentclass[letterpaper,12pt,addpoints]{exam}
\usepackage[utf8]{inputenc}
\usepackage[french]{babel}
\usepackage[top=1in, bottom=1in, left=0.75in, right=0.75in]{geometry}
\usepackage{amsmath,amssymb}
\newcommand{\university}{Gymnase de}
\newcommand{\faculty}{Cours de }
\newcommand{\class}{1C}
\newcommand{\examnum}{Test n}
\newcommand{\content}{Calcul }
\newcommand{\examdate}{Villeneuve sur France, 13 novembre 2023}
\newcommand{\timelimit}{45 minutes}

\pagestyle{headandfoot} \firstpageheader{}{}{} \firstpagefooter{}{Page \thepage\ of \numpages}{} \runningheader{\class}{\examnum}{\examdate} \runningheadrule \runningfooter{}{Page \thepage\ of \numpages}{}

\begin{document}

\title{\Large \textbf{\university\ \faculty\ \bigskip \class -- \examnum \ \content}} \author{Enseignant: Ciao Ciao} \date{\examdate} \maketitle \begin{flushleft} \makebox[12cm]{\textbf{Pr'enom et nom}:\ \hrulefill} \end{flushleft} \noindent \rule{\textwidth}{1pt} \begin{itemize} \item \textbf{Durée:} 45 minutes\ \item \textbf{Matériel autorisé:} Formulaire officiel non annot'e \ \begin{center} \textbf{Distribution des points}\ \medskip \gradetable[h][questions] \end{center} \end{itemize} \clearpage \begin{questions} \question

\clearpage
\question
The \textit{pmf} of the amount of memory \textit{X} (GB) in a purchased flash drive was given as
\begin{center}
    \begin{tabular}{c|c|c|c|c|c}
        $x$ & 1 & 2 & 4 & 8 & 16 \\
        \hline
        $p(x)$ & 0.05 & 0.10 & 0.35 & 0.40 & 0.10\\
    \end{tabular}
\end{center}
Compute the following:
\begin{parts}
    \part[2] Expected value $E(X)$
    \part[2] Variance $V(X)$ directly from the definition
    \part[2] The standard deviation $\sigma(X)$
    \part[2] $V(X)$ using the shortcut formula ($V(X)=E(X^2)-E^2(X)$)
\end{parts}

\clearpage
\question Each of 12 refrigerators of a certain type has been returned to a distributor because of the presence of a high-pitched oscillating noise when the refrigerator is running. Suppose that 5 of these 12 have defective compressors and the other 7 have less serious problems. If they are examined in random order, let X = the number among the first 6 examined that have a defective compressor. Compute the following:
\begin{parts}
    \part[3] $P(X=1)$
    \part[3] $P(X \geq 4)$
\end{parts}

\clearpage
\question A reservation service employs five information operators who receive requests for information independently of one another, each according to a Poisson process with rate $\mu=2$ per minute.
\begin{parts}
    \part[4] What is the probability that during a given 1-min period, the first operator receives no requests?
    \part[4] What is the probability that during a given 1-min period, exactly four of the five operators receive no requests?(\textit{Hint}: treat either as a binomial process of 5 trials with 4 successes or consider 5 combinations of Poisson processes, e.g. only 1st operation receives a request  or only 2nd operation receives a request and so on)
\end{parts}

\end{questions}

\clearpage This page is intentionally left blank to accommodate work that wouldn't fit elsewhere and/or scratch work. \end{document}

avati91
  • 175

2 Answers2

2

Define a new grade table by yourself. Idea come from this question.

\documentclass[letterpaper,12pt,addpoints]{exam}
%\usepackage[utf8]{inputenc} %don't need anymore
\usepackage[T1]{fontenc}
\usepackage[french]{babel}
\usepackage[top=1in, bottom=1in, left=0.75in, right=0.75in]{geometry}
\usepackage{amsmath,amssymb}
\newcommand{\university}{Gymnase de}
\newcommand{\faculty}{Cours de }
\newcommand{\class}{1C}
\newcommand{\examnum}{Test n}
\newcommand{\content}{Calcul }
\newcommand{\examdate}{Villeneuve sur France, 13 novembre 2023}
\newcommand{\timelimit}{45 minutes}

\pagestyle{headandfoot} \firstpageheader{}{}{} \firstpagefooter{}{Page \thepage\ of \numpages}{} \runningheader{\class}{\examnum}{\examdate} \runningheadrule \runningfooter{}{Page \thepage\ of \numpages}{}

%%%%%%%%%%%%%%%%%%%%%%%%%%% % define a new gradetable % %%%%%%%%%%%%%%%%%%%%%%%%%%% \usepackage{ifthen} \usepackage{array}

\newcolumntype{C}[1]{>{\centering\let\newline\\arraybackslash\hspace{0pt}}m{#1}}

\newcounter{fqn} \setcounter{fqn}{1} \newcommand{\mygradetable}{% {% \renewcommand{\arraystretch}{1.5} \begin{tabular}{|l*{\numquestions}{|C{0.72cm}}|C{2cm}|c|} \hline Domanda: & \whiledo{ \not ( \thefqn > \numquestions) }{% \ifthenelse{ \not ( \thefqn > \numquestions ) }{% \thefqn &% }{}% \stepcounter{fqn}% }\setcounter{fqn}{1} Bonus Redaction&Total\\hline Points: & \whiledo{ \not ( \thefqn > \numquestions ) }{% \ifthenelse{ \not ( \thefqn > \numquestions ) }{% \pointsofquestion{\thefqn} &% }{}% \stepcounter{fqn}% }\setcounter{fqn}{1}&\numpoints \\hline Punteggio: & \whiledo{ \not ( \thefqn > \numquestions ) }{% \ifthenelse{ \not ( \thefqn > \numquestions ) }{% &% }{\setcounter{fqn}{1}}% \stepcounter{fqn}% }&\\hline \end{tabular}\par} } %%%%%%%%%%%%%%%%%%%%%%%%%%%

\begin{document}

\title{\Large \textbf{\university\ \faculty\ \bigskip \class -- \examnum \ \content}} \author{Enseignant: Ciao Ciao} \date{\examdate} \maketitle \begin{flushleft} \makebox[12cm]{\textbf{Pr'enom et nom}:\ \hrulefill} \end{flushleft} \noindent \rule{\textwidth}{1pt} \begin{itemize} \item \textbf{Durée:} 45 minutes\ \item \textbf{Matériel autorisé:} Formulaire officiel non annot'e \ \begin{center} \textbf{Distribution des points}\ \medskip \gradetable[h][questions]

\mygradetable \end{center} \end{itemize} \clearpage \begin{questions} \question

\clearpage
\question
The \textit{pmf} of the amount of memory \textit{X} (GB) in a purchased flash drive was given as
\begin{center}
    \begin{tabular}{c|c|c|c|c|c}
        $x$ & 1 & 2 & 4 & 8 & 16 \\
        \hline
        $p(x)$ & 0.05 & 0.10 & 0.35 & 0.40 & 0.10\\
    \end{tabular}
\end{center}
Compute the following:
\begin{parts}
    \part[2] Expected value $E(X)$
    \part[2] Variance $V(X)$ directly from the definition
    \part[2] The standard deviation $\sigma(X)$
    \part[2] $V(X)$ using the shortcut formula ($V(X)=E(X^2)-E^2(X)$)
\end{parts}

\clearpage
\question Each of 12 refrigerators of a certain type has been returned to a distributor because of the presence of a high-pitched oscillating noise when the refrigerator is running. Suppose that 5 of these 12 have defective compressors and the other 7 have less serious problems. If they are examined in random order, let X = the number among the first 6 examined that have a defective compressor. Compute the following:
\begin{parts}
    \part[3] $P(X=1)$
    \part[3] $P(X \geq 4)$
\end{parts}

\clearpage
\question A reservation service employs five information operators who receive requests for information independently of one another, each according to a Poisson process with rate $\mu=2$ per minute.
\begin{parts}
    \part[4] What is the probability that during a given 1-min period, the first operator receives no requests?
    \part[4] What is the probability that during a given 1-min period, exactly four of the five operators receive no requests?(\textit{Hint}: treat either as a binomial process of 5 trials with 4 successes or consider 5 combinations of Poisson processes, e.g. only 1st operation receives a request  or only 2nd operation receives a request and so on)
\end{parts}

\end{questions}

\clearpage This page is intentionally left blank to accommodate work that wouldn't fit elsewhere and/or scratch work. \end{document}

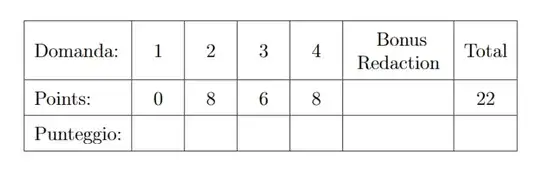

enter image description here

Tom
  • 7,318
  • 4
  • 21
1

The first part of your question is easy: include

\hqword{Domanda:}
\hsword{Punteggio:}

in your preamble. There are a series of commands like this, of the form \ABCword, where:

  • A is nothing for \gradetable, or b for \bonusgradetable, or c for \combinedgradetable;
  • B is h for horizontal or v for vertical;
  • C is q for Question, or pg for Page, or p for Points, or s for Score, or t for Total.

Unfortunately the second bit, with an extra column, will require a lot more tinkering with the class internals.

Ant
  • 7,568
