I would like to know how to write half integrals and generally integrals of nth order in LaTeX, for example in Cauchy's formula for repeated integration, because I didn't find how to do that on the whole internet. Also I attached how I write this on paper.
Asked
Active
Viewed 378 times
4
Taras
- 49
- 3
-
6Welcome to TeX.SE. I'm not familiar with "half integrals", and am not quite sure what you mean by "integrals of nth order". Could you point us to an example? – Teepeemm Nov 19 '23 at 03:45
-
By half integral I mean differintegral of -1/2 order. – Taras Nov 24 '23 at 16:36
-
But what does it look like? How would you write it with a pencil and paper? Could you point us to an image? – Teepeemm Nov 24 '23 at 19:21
-
See this answer: https://tex.stackexchange.com/a/557678/19809 – Gaussler Jan 03 '24 at 09:12
3 Answers
6
Maybe you're looking for some specific notation that I don't know about, but in LaTeX, Cauchy's formula for repeated integration can for example be written as:
I^nf(x) = \int_0^x \int_0^{x_1} \cdots \int_0^{x_{n-1}} f(x_{n}) \, \mathrm{d}x_{n} \cdots \, \mathrm{d}x_2 \, \mathrm{d}x_1 = \frac{1}{(n-1)!} \int_0^x\left(x-t\right)^{n-1} f(t)\,\mathrm{d}t
Dimitri
- 61
- 3
-
2Welcome to TeX.SE. I don't think this is what OP was looking for, so it would probably be better to wait for OP to clarify. – Teepeemm Nov 19 '23 at 03:43
-
6

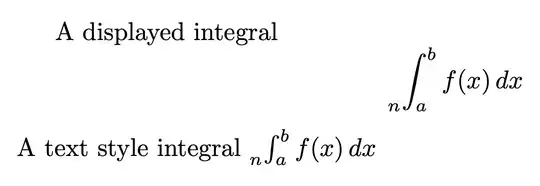

Add a phantom integral, so the subscript is at the right place.
\documentclass{article}
\usepackage{amsmath}
\NewDocumentCommand{\INT}{m}{\mathop{{\vphantom{\int}}}\nolimits_{#1}!\int}
\begin{document}
A displayed integral
[
\INT{n}_a^b f(x),dx
]
A text style integral $\INT{n}_a^b f(x),dx$
\end{document}
egreg
- 1,121,712
-
Of course codepoint 0x222B in any unicode font, can give you integrals at any size. Do you think unicode-math is mature enough? – yannisl Jan 03 '24 at 18:19
-
I'm not sure about unicode-math, but your answer was extremely helpful. Thank you a lot! – Taras Jan 03 '24 at 19:12
-
And one extra question: where do I put this code: in LaTeX environment or in post when I create a new one or edit an existing one? – Taras Jan 03 '24 at 19:52
-
1

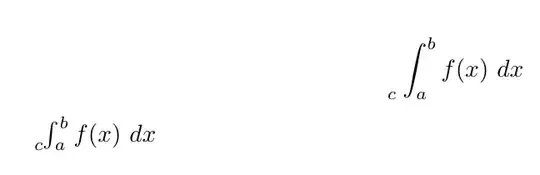

It is possible to use also tensor package with \mathclap.
\documentclass{article}
\usepackage{tensor}
\usepackage{mathtools}
\begin{document}
[
\tensor[_{\mathclap{c}}]{\int}{_a^b} f(x) \ dx
]
$\tensor[_{\mathclap{c}}]{\int}{_a^b} f(x) \ dx$
\end{document}
Sebastiano
- 54,118
