How to use multirow and multicolumn in formatting a comparison table?

Question

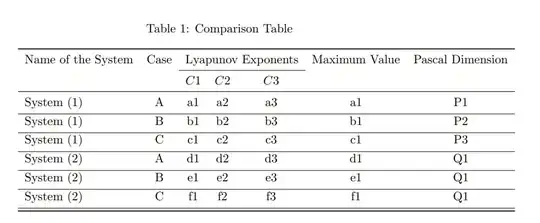

For my new research paper, I am having tough time in formatting a comparison table using LaTeX. I used the recent help given to me in preparing a table using multicolumn but specifically I find some extra space between the output of the code (enclosed).. There is extra space between C2 and C3 columns and I have no idea how to fix this problem. Also, I like to merge the three rows with System 1 into one row with three cases A, B and C, and similarly for the three rows with System 2. I understand that multirow is the command to be used, but I request you to kindly help me with it. In future, I shall format tables with the help I hope to get for the enclosed code.

Thank you for the great help!!

Best wishes, Sundar

\documentclass[11pt]{article}
\usepackage{float}
\usepackage{amssymb}
\usepackage{graphicx}
\usepackage{subfig}
\usepackage{array}
\usepackage{booktabs}
\usepackage{caption}%
\begin{document}
\begin{table}
\caption{Comparison Table}
\centering
\begin{tabular}{lcccccc}
  \toprule
  Name of the System & Case &  \multicolumn{3}{c}{Lyapunov Exponents} & Maximum Value & Pascal  Dimension \
  \cmidrule{3-5}% added
                     &               &      $C1$ & $C2$ & $C3$ &  &  \

  \midrule
  System (1) & A & a1 & a2 & a3 & a1 & P1 \[1mm] \hline
   System (1) & B & b1 & b2 & b3 & b1 & P2 \[1mm] \hline
    System (1) & C & c1 & c2 & c3 & c1 & P3 \[1mm] \hline
     System (2) & A & d1 & d2 & d3 & d1 & Q1 \[1mm] \hline
      System (2) & B & e1 & e2 & e3 & e1 & Q2 \[1mm] \hline
       System (2) & C & f1 & f2 & f3 & f1 & Q3 \[1mm] \hline
  \bottomrule
\end{tabular}
\end{table}
\end{document}

Answer 1

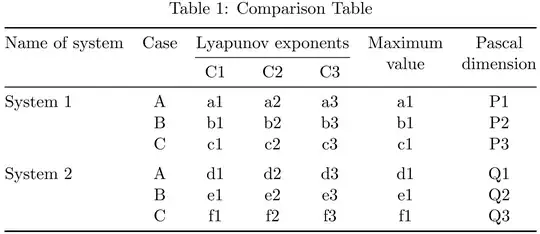

The following solution uses the w column type (provided by the array package) instead of the basic c column type for the three columns below "Lyapunov exponents". It also introduces line breaks in the header cells of the final two columns to help assure that the tabular material will fit inside the width of the text block.

---

Addendum: In case you're wondering how I came up with

\setlength{\mylen}{(\widthof{Lyapunov exponents}-4\tabcolsep)/3}

here goes.

• The length macro \mylen stores the usable width of the three columns below the header "Lyapunov exponents"; the objective is to find the minimum value of \mylen such that the three columns are evenly spaced. For simplicity, let's call the width of the string "Lyapunov exponents" z; z may be determined as \widthof{Lyapunov exponents}, where \widthof is a macro provided by the calc package.

• By convention, if the usable width of a tabular column is x, then the overall width of that column is x+2\tabcolsep, as LaTeX inserts whitespace on both sides of a column, in the amount of \tabcolsep. Thus, the overall width of the three combined underlying columns is 3\mylen+6\tabcolsep, where \mylen is the length we need to determine.

• The second piece of information is that the overall width of the 3 combined columns is z+2\tabcolsep; the 2\tabcolsep addendum results from the whitespace padding that LaTeX inserts on either side of the combined header.

• If we equate the entities 3\mylen+6\tabcolsep and z+2\tabcolsep, we obtain a linear equation with one known variable (z), one constant (\tabcolsep), and one unknown variable (\mylen). What remains to be done is to solve for \mylen.

---

\documentclass[11pt]{article}
\usepackage{amssymb,amsmath}
\usepackage{graphicx,subfig,float}
\usepackage{array} % for 'w' column type
\usepackage{booktabs,caption}
% new:
\captionsetup{skip=0.333\baselineskip} % default: 1\baselinskip
\usepackage{calc} % simplify calculations
\newlength\mylen  % scratch length parameter
\newcommand\mytab[1]{%
   \smash[b]{\begin{tabular}[t]{@{}c@{}}#1\end{tabular}}}
\begin{document}
\begin{table}
\setlength{\mylen}{% % calculate usable width of middle-3 columns
  (\widthof{Lyapunov exponents}-4\tabcolsep)/3}
\caption{Comparison Table}
\centering
\begin{tabular}{@{} l c *{3}{w{c}{\mylen}} c c @{}}
  \toprule
  Name of system & Case &
  \multicolumn{3}{c}{Lyapunov exponents} &
  \mytab{Maximum\ value} &
  \mytab{Pascal\ dimension} \
  \cmidrule(lr){3-5}
  & & C1 & C2 & C3 \

  \midrule
  System 1   & A & a1 & a2 & a3 & a1 & P1 \
             & B & b1 & b2 & b3 & b1 & P2 \
             & C & c1 & c2 & c3 & c1 & P3 \
  \addlinespace % <-- new
  System 2   & A & d1 & d2 & d3 & d1 & Q1 \
             & B & e1 & e2 & e3 & e1 & Q2 \
             & C & f1 & f2 & f3 & f1 & Q3 \
  \bottomrule
\end{tabular}
\end{table}
\end{document}

Answer 2

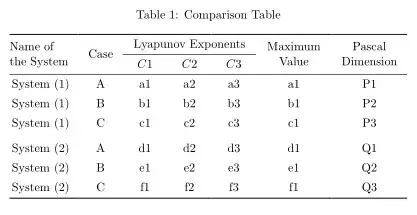

An alternative:

• for table I would use table type, for which I can prescribed table width, for example tabularx or tabularray
• use of tblr of tabularray package enables to determine ratio between widths of column, so for simplicity of code I would use it:

\documentclass[11pt]{article}
\usepackage{tabularray}
\UseTblrLibrary{booktabs}
\usepackage{caption}%
\begin{document}
\begin{table}[ht]
\caption{Comparison Table}
\centering
\begin{tblr}{colspec = {@{} X[l] {4}{X[0.5,c]}  {2}{X[c]} @{}},
             cell{1}{1,2,6,7} = {r=2}{},
             row{2}  = {mode=math}
             }
    \toprule
Name of the System
    &   Case
        &  \SetCell[c=3]{c}   Lyapunov Exponents

            &   &   &   Maximum Value
                        & Pascal  Dimension         \
    \midrule
           &   & C1 & C2 & C3 &    &   \
    \midrule
System (1) & A & a1 & a2 & a3 & a1 & P1 \
System (1) & B & b1 & b2 & b3 & b1 & P2 \
System (1) & C & c1 & c2 & c3 & c1 & P3 \
    \addlinespace
System (2) & A & d1 & d2 & d3 & d1 & Q1 \
System (2) & B & e1 & e2 & e3 & e1 & Q2 \
System (2) & C & f1 & f2 & f3 & f1 & Q3 \
  \bottomrule
\end{tblr}
    \end{table}
\end{document}
