Wavy arrow with color shading

Question

I would like to create a wavy arrow with a color gradient along the wave. For this, I tried to combine the solution from https://tex.stackexchange.com/a/197867/96546 for color gradients with the solution from https://tex.stackexchange.com/a/193451/96546 for wavy arrows.

Here is a MWE:

    \documentclass[tikz, border=5]{standalone}
    \usetikzlibrary{shapes.arrows}
    \makeatletter
    \def\createshadingfromlist#1#2#3{%
        \pgfutil@tempcnta=0\relax
        \pgfutil@for\pgf@tmp:={#3}\do{\advance\pgfutil@tempcnta by1}%
        \ifnum\pgfutil@tempcnta=1\relax%
        \edef\pgf@spec{color(0)=(#3);color(100)=(#3)}%
        \else%
        \pgfmathparse{50/(\pgfutil@tempcnta-1)}\let\pgf@step=\pgfmathresult%
        %
        \pgfutil@tempcntb=1\relax%
        \pgfutil@for\pgf@tmp:={#3}\do{%
            \ifnum\pgfutil@tempcntb=1\relax%
            \edef\pgf@spec{color(0)=(\pgf@tmp);color(25)=(\pgf@tmp)}%
            \else%
            \ifnum\pgfutil@tempcntb<\pgfutil@tempcnta\relax%
            \pgfmathparse{25+\pgf@step/4+(\pgfutil@tempcntb-1)*\pgf@step}%
            \edef\pgf@spec{\pgf@spec;color(\pgfmathresult)=(\pgf@tmp)}%
            \else%
            \edef\pgf@spec{\pgf@spec;color(75)=(\pgf@tmp);color(100)=(\pgf@tmp)}%
            \fi%
            \fi%
            \advance\pgfutil@tempcntb by1\relax%
        }%
        \fi%
        \csname pgfdeclare#2shading\endcsname{#1}{100}\pgf@spec%
    }
\createshadingfromlist{shading1}{vertical}{red,yellow,green,cyan,blue}
\createshadingfromlist{shading2}{vertical}{red,yellow}
\createshadingfromlist{shading3}{vertical}{black,blue,cyan,white}

%%%
\usetikzlibrary{decorations.shapes}
\usetikzlibrary{shapes.geometric, arrows}
\usetikzlibrary{patterns}
\usepackage[compat=1.0.0]{tikz-feynman}
\usetikzlibrary{decorations.pathreplacing,angles,quotes,decorations.pathmorphing}
\usepackage{tkz-euclide}
%\usetkzobj{all}
\usepackage{pgfplots}
\pgfplotsset{compat=1.9}

\begin{document}
    \tikzset{decorate sep/.style 2 args=
        {decorate,decoration={shape backgrounds,shape=circle,shape size=#1,shape sep=#2}}}
    \begin{tikzpicture}[colorbar arrow/.style={
            shape=double arrow,
            double arrow head extend=0.125cm,
            shape border rotate=90,
            minimum height=5cm,
            shading=#1
        },
        wavy/.style={decorate,decoration={snake,post length=1.2mm}}
        ]

        \node [colorbar arrow=shading1,wavy] at (0,0) {};
%       \node [colorbar arrow=shading2] at (1,0) {};
%       \node [colorbar arrow=shading3] at (2,0) {};
    \end{tikzpicture}
\end{document}

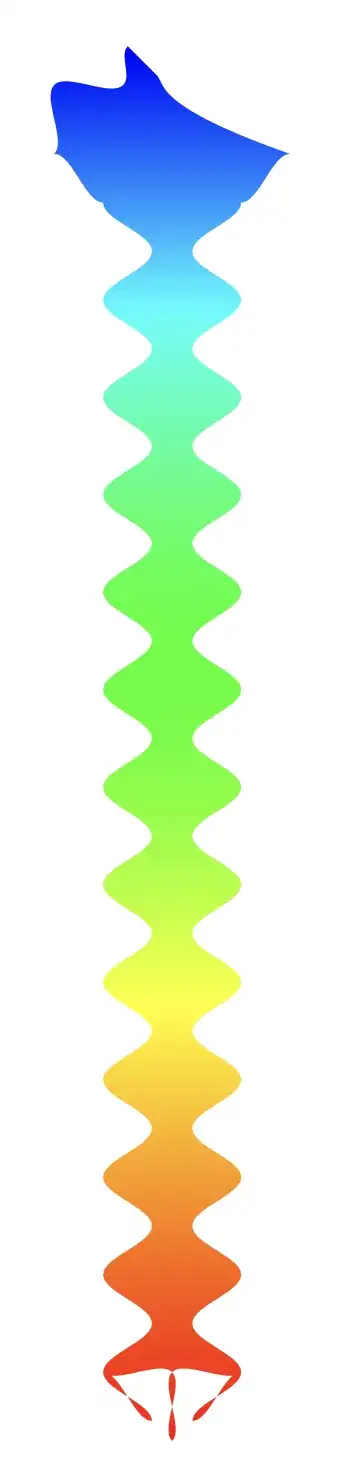

which creates the following figure:

So it almost works, but somehow the ends are not really arrows any more and the wave modifies both sides of the arrow boundary. What I would like to create is something like

with a color gradient across. This can be obtained in the above MWE by replacing the \node line with \draw[red,wavy,->,>=stealth'] (5.0,0.2) -- (2.2,0.2) node [above] {};

Any hints on what is going wrong in this combination or how to do it properly appreciated!

Answer 1

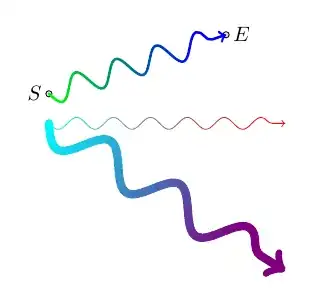

I propose a solution in which the wavy path and the colour change are realized at the same time through a loop and the sin function; there is no decoration involved.

The arrow is a pic object, w arrow, that depends on six arguments: the starting and ending points, the amplitude of the "wave", the number of (complete) periods, the starting and ending colours.

Remark. In case you need a gradient with more than two colors, then the colors must be given as a list. The modification is minimal. We can talk about it if you need it.

The code

\documentclass[margin=10pt]{standalone}
\usepackage{tikz}
\usetikzlibrary{math, calc}
\tikzset{%
  pics/w arrow/.style args={from=#1 to=#2, amplitude=#3, periods=#4,
    s-color=#5, e-color=#6%
  }{%
    code={%
      \tikzmath{%
        integer \nbSteps, \i, \j;
        real \d, \r, \angle, \nbPeriods, \h, \ecst, \acst;
        coordinate \S, \E;
        \nbPeriods = #4 +.75;
        \nbSteps = 25;
        \S = #1;
        \E = #2;
        \d = veclen(\Ex-\Sx, \Ey-\Sy)1pt/1cm;
        \acst = .65;  % controls the horizontal segment supporting the arrow
        \r = \d/(\nbPeriods +\acst);
        \ecst = (\nbPeriods +.3)/(\nbPeriods +\acst);
        \angle = atan2(\Ey-\Sy, \Ex-\Sx);
        \h = \nbPeriods/\nbSteps;  % domain length for \x
        \a = 0;
        \b = \a +\h;
        for \i in {1,...,\nbSteps}{%
          \j = 4\i;
          {%
            \draw[#6!\j!#5, line cap=round,
            domain=\a:\b, samples=15, shift={(\S)}, rotate=\angle]
            plot ({\r\x}, {-#3sin(360\x)});
          };
          \a = \b;
          \b = \a +\h;
        };
        {%
          \path[shift={(\S)}, rotate=\angle]
          ({\r\nbPeriods}, {-#3sin(360\nbPeriods)})
          coordinate (tmpPoint);
          \draw[#6, ->] (tmpPoint)

          to[out=\angle, in=\angle+180] ($(\S)!\ecst!(\E)$) -- (\E);
        };
      }
    }
  }
}
\begin{document}
\begin{tikzpicture}[]
  \draw[fill=gray!20] (0, 0) circle (1.5pt) node[left] {$S$};
  \draw[fill=gray!20] (3, 1) circle (1.5pt) node[right] {$E$};
\path pic[very thick]
  {w arrow={from=(0, 0) to=(3, 1), amplitude=.2, periods=3,
      s-color=green, e-color=blue}};
  \path pic[]
  {w arrow={from=(0, -.5) to=(4, -.5), amplitude=.1, periods=5,
      s-color=cyan, e-color=red}};
  \path pic[line width=4pt]
  {w arrow={from=(0, -.5) to=(4, -3), amplitude=.3, periods=2,
      s-color=cyan, e-color=violet}};
\end{tikzpicture}
\end{document}
