How to wrap text in a vertically rotated merged cell?

Question

I have a table and the codes are given below:

\begin{table}[]
\begin{tabular}{cc|cccccc|}
\cline{3-8}
\multicolumn{1}{l}{}
&            & \multicolumn{6}{c|}{\textbf{Time-period (t)}}
\\ \cline{3-8}
\multicolumn{1}{l}{}
& \textbf{}  & \multicolumn{1}{c|}{\textbf{0}}               &
\multicolumn{1}{c|}{\textbf{1}}               & \multicolumn{1}{c|}
{\textbf{2}}               & \multicolumn{1}{c|}{\textbf{3}}
& \multicolumn{1}{c|}{\textbf{4}}                   & \textbf{5}
\\ \hline
\multicolumn{1}{|c|}{}
& \textbf{1} & \multicolumn{1}{c|}{{\color[HTML]{32CB00} 3}} &
\multicolumn{1}{c|}{{\color[HTML]{000000} 3}} & \multicolumn{1}{c|}
{{\color[HTML]{000000} 3}} & \multicolumn{1}{c|}{{\color[HTML]
{000000} 3}} & \multicolumn{1}{c|}{{\color[HTML]{FF0000} -3}+
{\color[HTML]{32CB00}3}+3} & {\color[HTML]{000000} 3} \\ \cline{2-
8}
\multicolumn{1}{|c|}{}
& \textbf{2} & \multicolumn{1}{c|}{}                         &
\multicolumn{1}{c|}{{\color[HTML]{32CB00} 3}} & \multicolumn{1}{c|}
{3}                        & \multicolumn{1}{c|}{3}
& \multicolumn{1}{c|}{3}                            & 3
\\ \cline{2-8}
\multicolumn{1}{|c|}{}
& \textbf{3} & \multicolumn{1}{c|}{}                         &
\multicolumn{1}{c|}{}                         & \multicolumn{1}{c|}
{{\color[HTML]{32CB00} 3}} & \multicolumn{1}{c|}{3}
& \multicolumn{1}{c|}{3}                            & 3
\\ \cline{2-8}
\multicolumn{1}{|c|}{\multirow{-4}{*}{{\rotatebox[origin=c]{90}
{\textbf{Sensor node $i \in V$}}}}} & \textbf{4} & \multicolumn{1}
{c|}{}                         & \multicolumn{1}{c|}{}
& \multicolumn{1}{c|}{}                         & \multicolumn{1}
{c|}{{\color[HTML]{32CB00} 3}} & \multicolumn{1}{c|}{3}
& 3                        \\ \hline
\end{tabular}
\end{table}

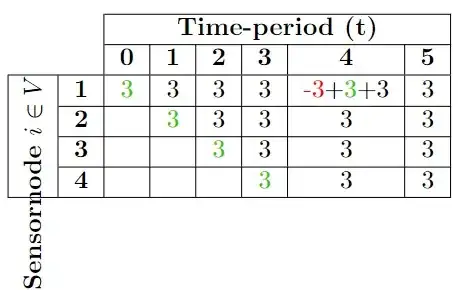

In the first column, the text is going out of the table. How can I fix this?

Welcome to TSE. Please post a Minimal Working Example, instead of a code snippet. — José Carlos Santos, Jan 01 '24 at 17:22
You can use a parbox, if you know the width needed (4\baselineskip). — John Kormylo, Jan 01 '24 at 17:23
Welcome. // Kindly provide code we can work with, e.g. via using this checklist: https://tex.meta.stackexchange.com/questions/228/ive-just-been-asked-to-write-a-minimal-working-example-mwe-what-is-that/10137#10137 . Thank you — MS-SPO, Jan 01 '24 at 17:50
@Sangeeth if the answer met your requirement please upvote and accept with a green tick — js bibra, Jan 24 '24 at 10:08

score 1 · Answer 1 · answered Jan 02 '24 at 10:17

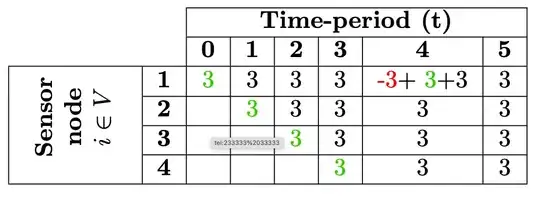

The following additional code does satisfy the requirement of wrapping the multi-row-rotated-text

 \begin{turn}{90}
                {
                            \tabular{@{}c@{}}
                             \textbf{Sensor} \\\textbf{node} \\\textbf{$i \in V$}
                                \endtabular
                }
            \end{turn}

MWE
