Alignat: Shift entries to the right

Question

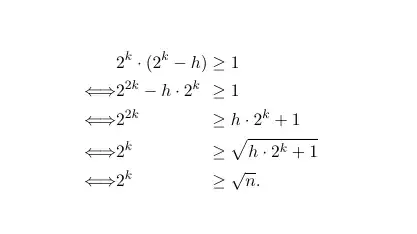

I have the following equations:

Now I want to shift the $2^{2k}$ and $2^k$ in the last three lines to the right, just before the $\geq$ sign. How can I achieve that without hardcoding?

Here is my MWE:

\documentclass[ngerman, fontsize=11pt, DIV=12 ,BCOR = 10mm, parskip=half-, twoside]{scrbook}
\usepackage{amsmath}
\begin{document}
        \begin{alignat}{2}
    &2^k\cdot (2^k-h)&&\geq 1 \
    \Longleftrightarrow
    &2^{2k}-h\cdot 2^k&&\geq 1 \
    \Longleftrightarrow
    &2^{2k}&&\geq h\cdot 2^k+1 \
    \Longleftrightarrow
    &2^k &&\geq \sqrt{h\cdot 2^k+1} \
    \Longleftrightarrow
    &2^k &&\geq \sqrt{n}.
\end{alignat}
\end{document}

When I change 2^{2k}& to &2^{2k} I get additional space in the frst two lines.

change 2^{2k}& to &2^{2k}, also you want \Longleftrightarrow{} to get the correct spacing back if you have the arrow to the left of the & — David Carlisle, Jan 15 '24 at 17:44

score 3 · Answer 1 · answered Jan 15 '24 at 17:48

3

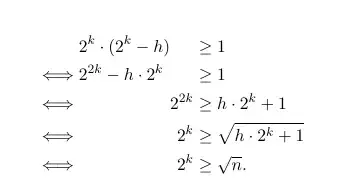

You want the expressions in an odd (right aligned) column.

\documentclass[ngerman, fontsize=11pt, DIV=12 ,BCOR = 10mm, parskip=half-, twoside]{scrbook}
\usepackage{amsmath}
\begin{document}
        \begin{alignat}{2}
    &&2^k\cdot (2^k-h)&\geq 1 \
    &\Longleftrightarrow
    &2^{2k}-h\cdot 2^k&\geq 1 \
    &\Longleftrightarrow
    &2^{2k}&\geq h\cdot 2^k+1 \
    &\Longleftrightarrow
    &2^k &\geq \sqrt{h\cdot 2^k+1} \
    &\Longleftrightarrow
    &2^k &\geq \sqrt{n}.
\end{alignat}
\end{document}

answered Jan 15 '24 at 17:48

David Carlisle

757,742

Thank you, I guess I can use that. One more question: In your code, can I align the first two lines, so that 2^k in the first line and 2^{2k} in the second line are aligned? So that there is no space before 2^{2k}? – Lereu Jan 15 '24 at 17:51
@Lereu you can but I wouldn't: just add another && at that point just keep in mind that odd columns align right and even columns align left – David Carlisle Jan 15 '24 at 18:21
@Lereu: ...replace amsmath with mathtools (it loads amsmath, but adds other functionality) and then use \mathrlap{2^{2k} - h \cdot 2^k}\phantom{2^k \cdot (2^k - h)}. – Werner Jan 15 '24 at 18:22

egreg · Answer 2 · 2024-01-15T20:43:10.970

I wouldn't try and align things that are just very loosely related.

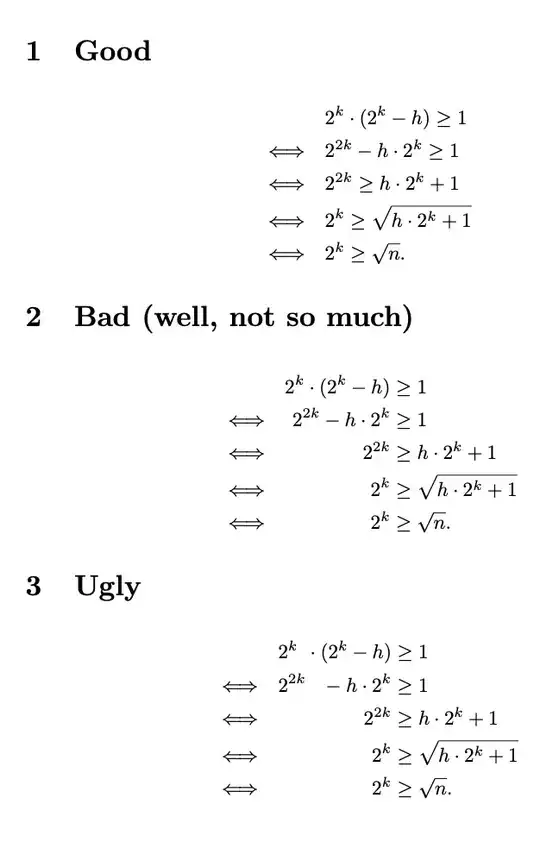

I give you three realizations. The section titles should self-explain my recommendation.

\documentclass{article}
\usepackage{amsmath}
\begin{document}
\section{Good}
\begin{align}
  & 2^k\cdot (2^k-h)\geq 1 \
\Longleftrightarrow\quad
  & 2^{2k}-h\cdot 2^k\geq 1 \
\Longleftrightarrow\quad
  & 2^{2k}\geq h\cdot 2^k+1 \
\Longleftrightarrow\quad
  & 2^k \geq \sqrt{h\cdot 2^k+1} \
\Longleftrightarrow\quad
  & 2^k \geq \sqrt{n}.
\end{align}
\section{Bad (well, not so much)}
\begin{alignat}{2}
    &&2^k\cdot (2^k-h)&\geq 1 \
    &\Longleftrightarrow\quad
    &2^{2k}-h\cdot 2^k&\geq 1 \
    &\Longleftrightarrow\quad
    &2^{2k}&\geq h\cdot 2^k+1 \
    &\Longleftrightarrow\quad
    &2^k &\geq \sqrt{h\cdot 2^k+1} \
    &\Longleftrightarrow
    &2^k &\geq \sqrt{n}.
\end{alignat}
\section{Ugly}
\begin{alignat}{3}
& 2^k&{}\cdot (2^k-h)&\geq 1 \
\Longleftrightarrow\quad
& 2^{2k}&{}-h\cdot 2^k&\geq 1 \
\Longleftrightarrow\quad
&&2^{2k}&\geq h\cdot 2^k+1 \
\Longleftrightarrow\quad
&&2^k &\geq \sqrt{h\cdot 2^k+1} \
\Longleftrightarrow\quad
&&2^k &\geq \sqrt{n}.
\end{alignat}
\end{document}

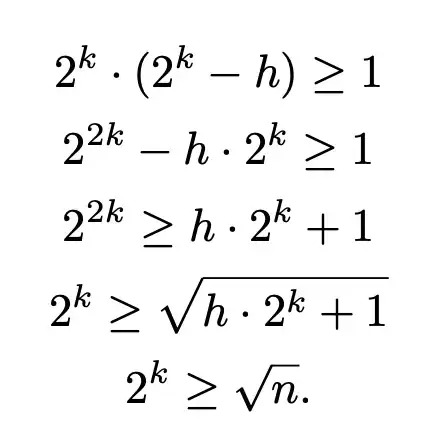

Actually, I'd use gather* with no \Longleftrightarrow, explaining that each line implies the following and is implied by the preceding one.

Thank you, I can learn from your code. Nevertheless, I would exactly swap 1) and 3). But this is a matter of taste. — Lereu, Jan 15 '24 at 18:20
@Lereu There is a fourth realization, which I added only the picture of, with some explanation. — egreg, Jan 15 '24 at 20:42
