PGF is extracting wrong x/y values from a coordinate. How can I extract correct values?

Question

Consider this MEW,

\nonstopmode
\documentclass{article}
\usepackage{tikz,amsmath}
\usetikzlibrary{calc}
\begin{document}
\begin{tikzpicture}
    \draw [gray!10](-0.2, -0.2) grid[step=.25] (3.2,3.2) ;
    \draw [gray!25](-0.2, -0.2) grid[step=.5]  (3.2,3.2) ;
    \path
        (0, 3) node[left]  {$y$}
        (3, 0) node[below] {$x$} ;
\draw [-latex](-.2, 0) -- (3,0);
\draw [-latex](0, -.2) -- (0,3);

\draw [thick, cyan!50!black, -latex]
(0,0)    node [coordinate](origin){}
--
(60:2.5) node [coordinate](pa){}
         node [above, black]{$p_a$}
(origin)
--
(30:2.5) node [coordinate](pb){}
         node [above, black]{$p_b$};

\newdimen\pax
\newdimen\pay
\pgfextractx{\pax}{(pa)}
\pgfextracty{\pay}{(pa)}
\draw [yellow!75!black](pa) -- (\pax, 0);
\draw [yellow!75!black](pa) -- (0, \pay);
\draw [magenta](pb) -- (\pax, 0);
\draw [magenta](pb) -- (0, \pay);

\end{tikzpicture}

\end{document}

which produces this picture below:

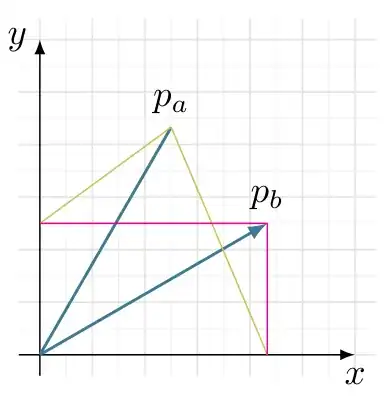

At \pgfextractx{\pax}{(pa)}, I am trying to extract the x component of the node coordinate (pa) (same with y component), and trying to draw perpendicular with yellow lines to their respective axes. But pgfextractx is giving me the x/y component of node coordinate (pb), which I have drawn with the magenta lines.

How can I extract the correct x/y values from the node coordinate (pa) with \pgfextractx? I only looked at pgfmanual.pdf which doesn give a lot of examples of \pgfextracttx.

Answer 1

You are in the basic layer of PGF which does not parse the syntax like the frontend layer (aka TikZ) does. In particular, the syntax using parentheses to denote a coordinate does not work here. Therefore, you need to use \pgfpointanchor{pa}{center} instead of (pa):

\documentclass[border=10pt]{standalone}
\usepackage{tikz}
\newdimen\pax
\newdimen\pay
\begin{document}
\begin{tikzpicture}
    \draw[gray!10] (-0.2,-0.2) grid[step=.25] (3.2,3.2);
    \draw[gray!25] (-0.2,-0.2) grid[step=.5] (3.2,3.2);
    \path
        (0,3) node[left] {$y$}
        (3,0) node[below] {$x$} ;
\draw[-latex] (-.2,0) -- (3,0);
\draw[-latex] (0,-.2) -- (0,3);

\draw[thick, cyan!50!black, -latex]
    (0,0) node[coordinate] (origin) {}
    --
    (60:2.5) node[coordinate] (pa) {}
        node[above, black] {$p_a$}
    (origin)
    --
    (30:2.5) node[coordinate] (pb) {}
        node[above, black] {$p_b$};

\pgfextractx{\pax}{\pgfpointanchor{pa}{center}}
\pgfextracty{\pay}{\pgfpointanchor{pa}{center}}
\draw[yellow!75!black] (pa) -- (\pax,0);
\draw[yellow!75!black] (pa) -- (0,\pay);
\draw[magenta] (pb) -- (\pax,0);
\draw[magenta] (pb) -- (0,\pay);

\end{tikzpicture}
\end{document}
