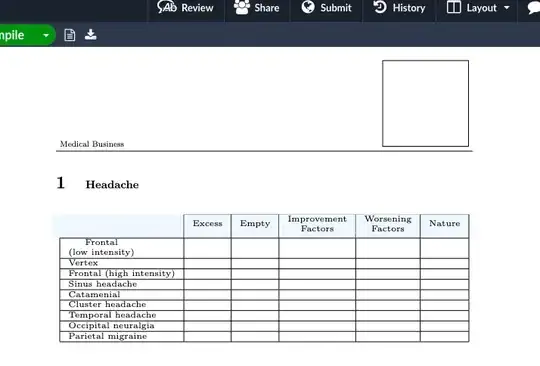

Well, I have been struggling for a long time with this single table. I would like to create a fancy table for the patients, colored and beautiful. I tried to centralize the text, however, I am always making a mess with the geometry of the page I created. To summarize I need to
- Centralize every text (I mean, I do not want the text in the top of every cell).
- Divide the first column and line into two with a diagonal line where I can write a text without interrupting all the structure in the preamble.
- Create more space inside any cells in order to the text does not appear tight.
- It is possible to create double-colored lines for this table using the color airforceblue (I left in the preamble)?
Here is the preamble, I know there are a lot of commands that are not necessary for this problem, but I left them because I do not want that the new command affects the commands I already have.
\documentclass[12pt, a4paper, english]{article}
\usepackage{graphicx} % Required for inserting images
\graphicspath{figures} % Path to images/figures
\usepackage{pgffor, ifthen}
\usepackage[table]{xcolor} % Pretty colours for tables
\usepackage{booktabs, caption}
\usepackage[table]{xcolor}
\usepackage{amsmath}
\usepackage{tikz}
\usepackage{tikzscale}
\usepackage{array}
\usepackage[english]{babel}
\usepackage{float}
\usepackage{fancyhdr}
\newcommand{\splitcell}[2]{\begin{tabular}{@{}c@{}}#1\end{tabular}}
\newcolumntype{Z}{>{\raggedright}X}
\newcolumntype{M}[2]{>{\centering\arraybackslash}m{#1}}
\newcolumntype{N}{@{}m{0pt}@{}}
\newcommand{\notes}[3][\empty]{
\noindent Add your comments here:\vspace{10pt}\\
\foreach \n in {1,...,#2}{
\ifthenelse{\equal{#1}{\empty}}
{\rule{#3}{0.5pt}\\}
{\rule{#3}{0.5pt}\vspace{#1}\\}
}
}
% Changes the layout and design of the pages
\usepackage{geometry}
\geometry{
paper=a4paper, % Change to letterpaper for US letter
inner=3cm, % Inner margin
outer=3cm, % Outer margin
bindingoffset=.5cm, % Binding offset
top=4.5cm, % Top margin
headheight=90pt,
bottom=2cm, % Bottom margin
% showframe, % Uncomment to show how the type block is set on the page
}
\setlength\parindent{0pt} % Removes all indentation from paragraphs
\addtolength{\textheight}{-78.7083pt}
%\setlength{\arrayrulewidth}{0.5mm}
%\setlength{\tabcolsep}{18pt}
%\renewcommand{\arraystretch}{2.5}
\pagestyle{fancy}
\fancyhf{}
\lhead{\begin{minipage}[c]{1cm}
%\includegraphics[width=1.5cm]{ENGLISHacupuntura.png}
\end{minipage}
\begin{minipage}[l]{5cm}
\scriptsize
%{\scriptsize Faculdade JK} \
{\scriptsize Medical Business}
\end{minipage}
}
\rhead{\emptybox[3cm]{3cm}}
\rfoot{\scriptsize adress}
\newcommand{\HRule}{\rule{\linewidth}{0.05mm}}
\newcommand{\emptybox}[2][\textwidth]{
\begingroup
\setlength{\fboxsep}{-\fboxrule}
\noindent\framebox[#1]{\rule{0pt}{#2}}
\endgroup
}
\definecolor{airforceblue}{rgb}{0.36, 0.54, 0.66}
\definecolor{aliceblue}{rgb}{0.94, 0.97, 1.0}
\definecolor{azure(web)(azuremist)}{rgb}{0.94, 1.0, 1.0}
\begin{document}
\section{\small Headache}
\begin{table}[ht]
\tiny
\centering
\resizebox{\columnwidth}{!}
{
\begin{tabular}{@{}c|c|c|c|c|c|@{}}
\cline{2-6} \rowcolor{aliceblue}
&Excess &Empty& \splitcell{Improvement \ Factors} & \splitcell{Worsening \ Factors}
&Nature \[6pt]
\hline
\multicolumn{1}{|l|}{\splitcell{Frontal \ (low intensity)}} & & & & & \ \hline
\multicolumn{1}{|l|}{Vertex} & & & & & \ \hline
\multicolumn{1}{|l|}{Frontal (high intensity)} & & & & & \ \hline
\multicolumn{1}{|l|}{Sinus headache} & & & & & \ \hline
\multicolumn{1}{|l|}{Catamenial} & & & & & \ \hline
\multicolumn{1}{|l|}{Cluster headache} & & & & & \ \hline
\multicolumn{1}{|l|}{Temporal headache} & & & & & \ \hline
\multicolumn{1}{|l|}{Occipital neuralgia} & & & & & \ \hline
\multicolumn{1}{|l|}{Parietal migraine} & & & & & \ \hline
\end{tabular}
}
\end{table}
\end{document}
